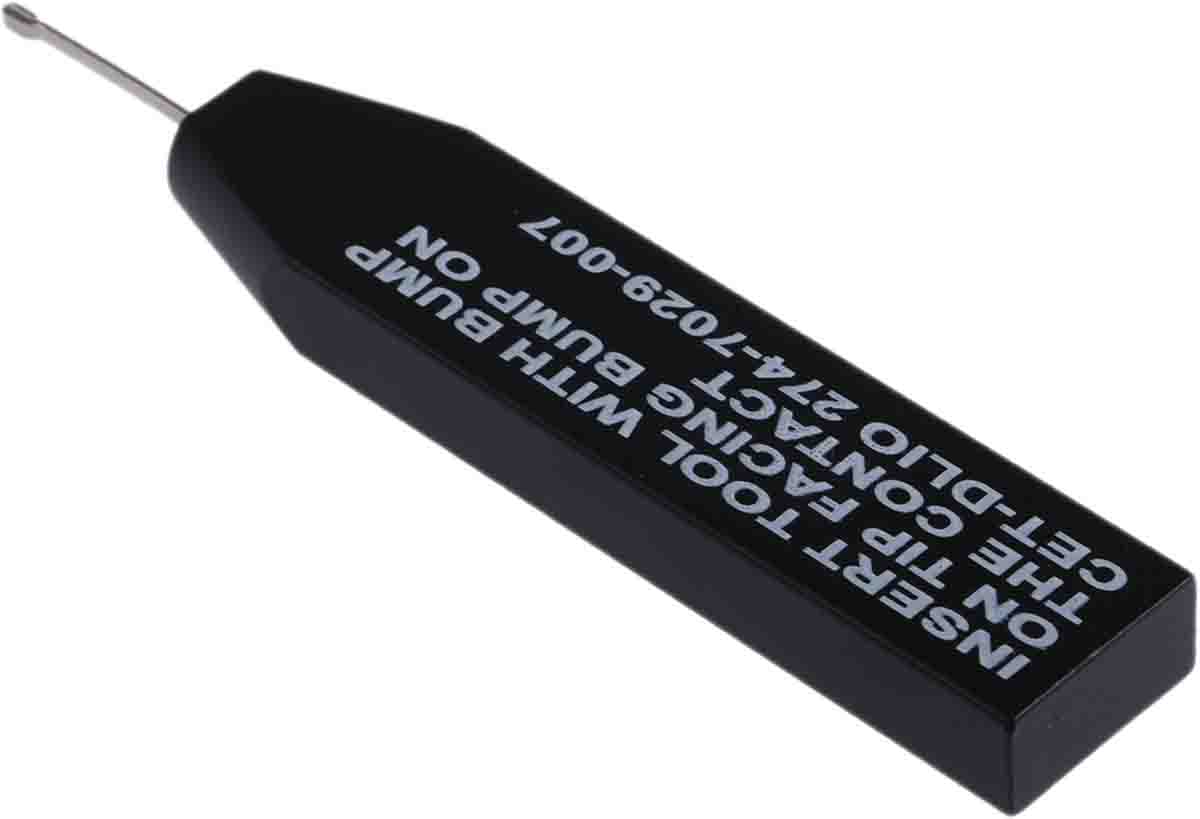

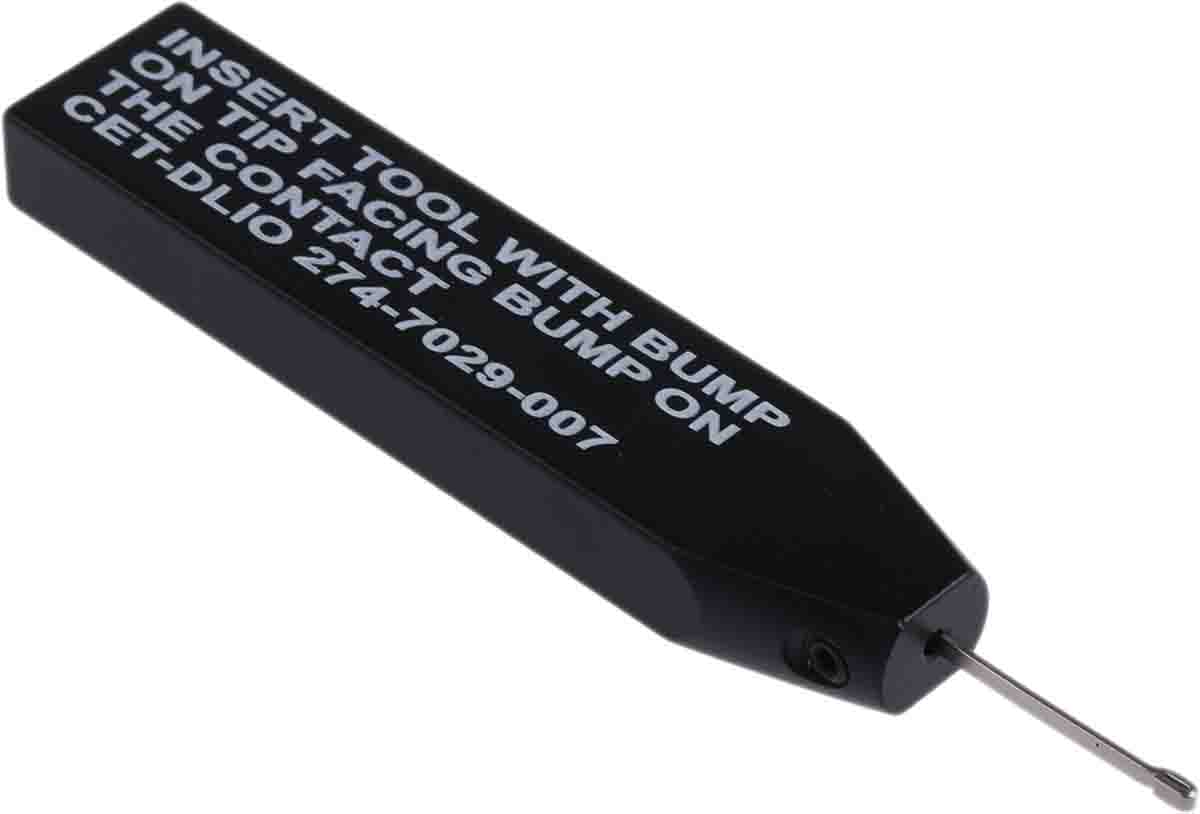

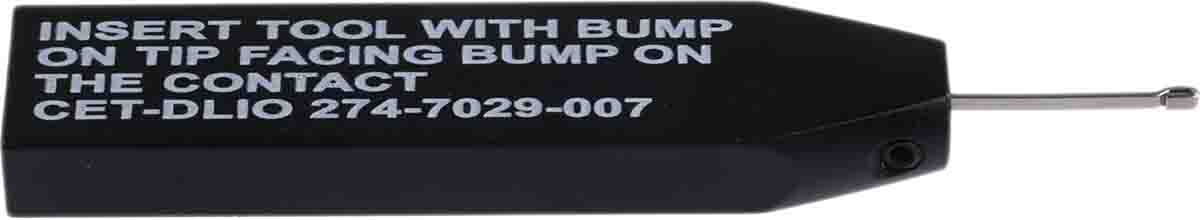

ITT Cannon Crimp Extraction Tool, DL Series, Plug, Socket Contact

RS Stock No.:: 0406723
Mfr. Prt No.:: 274-7029-007
Brand:: ITT Cannon

Product image for ZIF MULTIPOLE EXTRACTION TOOL

Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components

Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details

RS stock number	0406723
Product description	ITT Cannon Crimp Extraction Tool, DL Series, Plug, Socket Contact
Manufacturer / Brand	ITT Cannon
Manufacturer part number	274-7029-007

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date	Nov 17, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Product Details

ITT DL Range

The DL range of zero insertion force (ZIF) multi-pole connectors, with high contact densities is commonly used on diagnostic and test and instrumentation equipment in medical, computer, audio, broadcast and avionics industries.

ZIF Crimp and Extraction Tool

A locator on the tool positions contacts in the tool jaws to give an easy consistent crimp action.,A contact extraction tool is also available for servicing connectors during maintenance and modifications. Operating instructions are included with both tools. The crimp tool is not manufactured by ITT.

High pin counts - 60, 96, 156, 260 and 360 way
Long life - 10000 mating cycles
Cam actuated zero insertion force coupling
Backshell/strain relief and polarisation options
Metal and plastic plug and socket bodies
Metal products have excellent shielding properties
Standard and low current contacts available
