Fluke A3003FC Wi-Fi DC Current Clamp Meter, 100mA dc, Max Current – A ac, – CAT III 1000 V, CAT IV 600 V
- RS Stock No.:
- 8812763
- Mfr. Prt No.:
- FLK-A3003FC
- Brand:
- Fluke
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8812763 |
| Product description | Fluke A3003FC Wi-Fi DC Current Clamp Meter, 100mA dc, Max Current - A ac, - CAT III 1000 V, CAT IV 600 V |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | FLK-A3003FC |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 17, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: US
Product Details
Fluke CONNECT™
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field.
The Fluke Connect mobile app is available for Android™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products, the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place.
(Not compatible with Fluke CNX test tools)

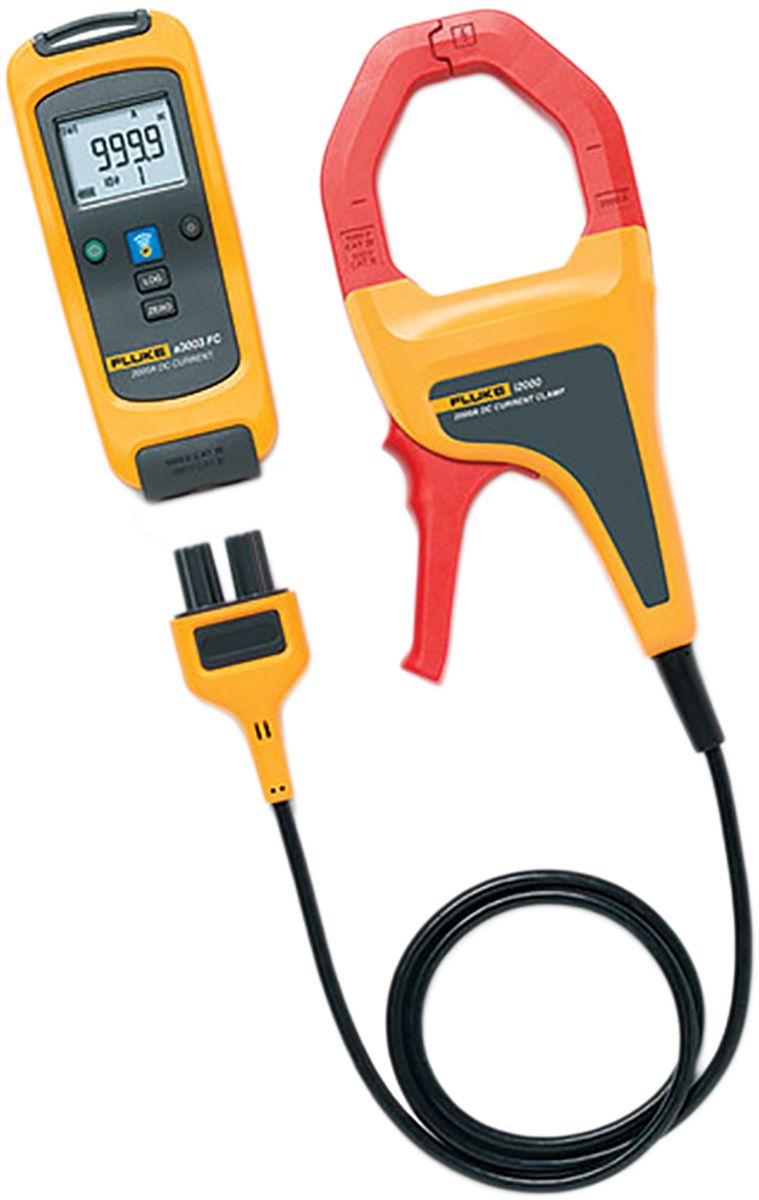

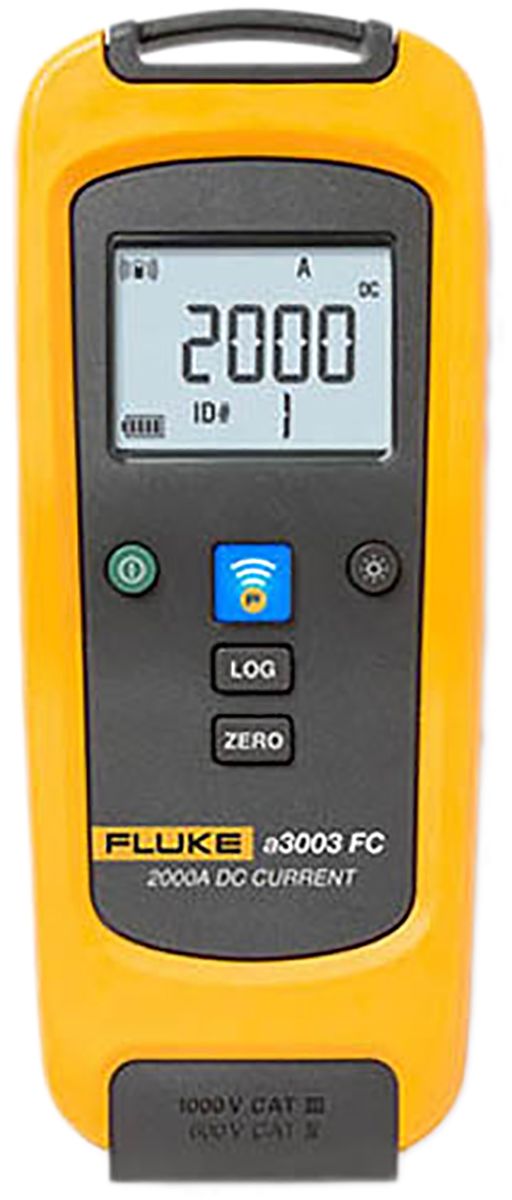

Fluke a3003 FC Wireless 2000 A DC Current Clamp Meter
The a3003 FC Wireless DC Current Clamp Meter is a fully functional current clamp meter that wirelessly relays measurements to other Fluke Connect™ enabled master units.
SUPPLIED_WITH : Fluke a3003 FC, DC current module, batteries, hang
Measures from 10 A to 2000 A DC
Large jaw size (64 mm) for measuring large, high current conductors
Use the logging function for the recording and saving up to 65,000 measurements
Specifications
| Attribute | Value |
| Brand | Fluke |
| Power Source | Battery |
| Width | 64 mm |
| Length | 165 mm |
| Dimensions | 165 x 63.5 x 14 mm |
| Functions Measured | DC Current |
| Model Number | A3003FC |
| Minimum Operating Temperature | -10 °C |
| Height | 14 mm |
| DC Current Measurement Resolution | 100 mA |
| Battery Life | 120 h |
| Jaw Capacity Busbars | 64 mm |
| Weight | 650 g |
| Safety Category Level | CAT III, CAT IV |
| Absolute Maximum DC Current Measurement | 100 mA dc |
| Best DC Current Accuracy | ±(2% rdg + 5dgts) |
| Clamp Meter Type | DC Current Clamp Meter |
| Absolute Maximum AC Current Measurement | - A ac, - |
| Connectivity | Wi-Fi |
| Safety Category Voltage | 600 V, 1000 V |
| Battery Type | AA |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Display Type | LCD |
| Maximum Operating Temperature | +50 °C |
