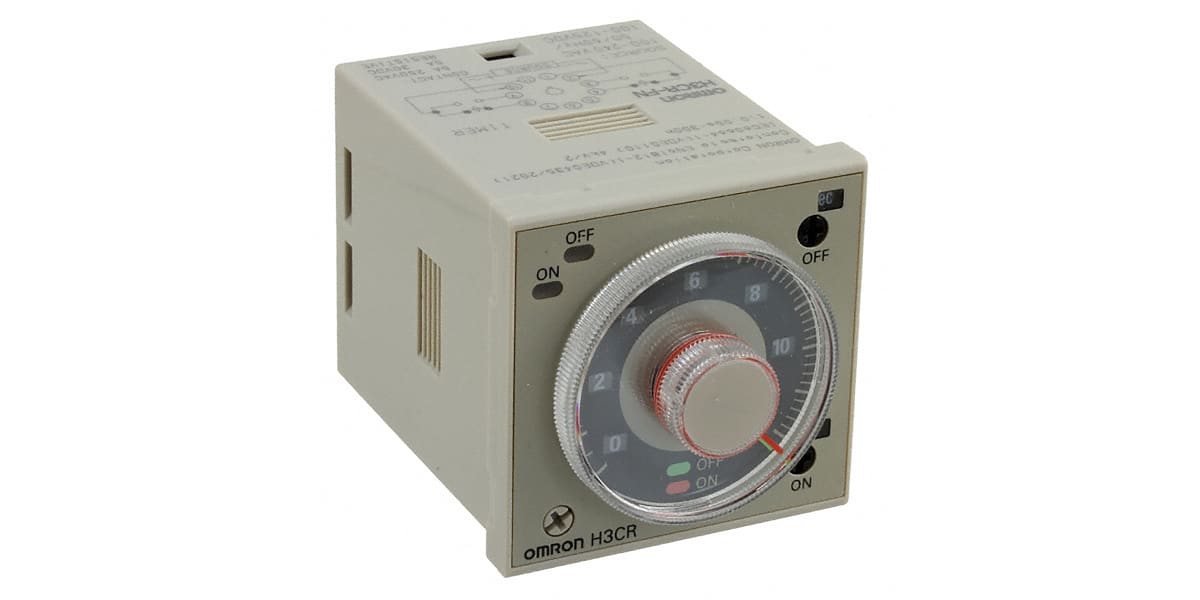

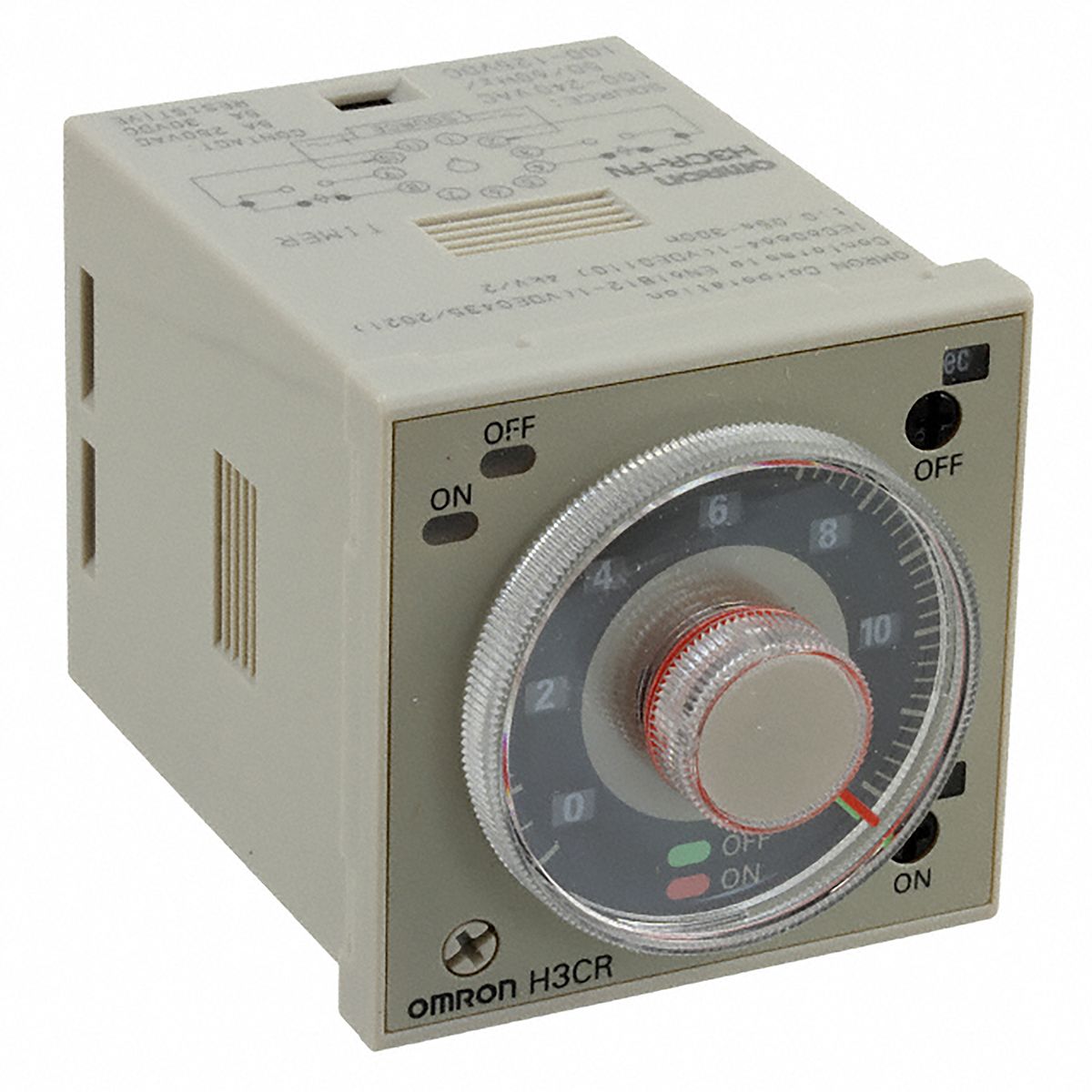

Omron DPDT Timer Relay, Flicker ON Start, 100 → 125 V dc, 100 → 240V ac 0.5 s → 300h, Plug In Mount
- RS Stock No.:
- 8411691
- Mfr. Prt No.:
- H3CRFNAC100240DC100125
- Brand:
- Omron
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8411691 |
| Product description | Omron DPDT Timer Relay, Flicker ON Start, 100 → 125 V dc, 100 → 240V ac 0.5 s → 300h, Plug In Mount |
| Manufacturer / Brand | Omron |
| Manufacturer part number | H3CRFNAC100240DC100125 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 17, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
11 Pin Asymmetrical– H3CR–F
Note
Not supplied with panel mount adaptor which must be purchased separately see stock no. 342-916.
APPROVALS : UL, CSA
Functions - 651
Supply frequency range (ac types) 50-60Hz
44.8 x 44.8mm panel cut out
Specifications
| Attribute | Value |
| Brand | Omron |
| Supply Voltage | 100 → 125 V dc, 100 → 240 V ac |
| Time Range | 0.5 s → 300 h |
| Minimum Operating Temperature | -10 °C |
| Mode of Operation | Flicker ON Start |
| Power Supply | External |
| Contact Material | Silver Alloy |
| Number of Contacts | 11 |
| Series | H3CR |
| Depth | 70.4 mm |
| Time Increment | Hours, Minutes, Seconds |
| Length | 48 mm |
| Width | 48 mm |
| Terminal Type | Plug In |
| Mounting Type | Plug In |
| Time Delay | 0.1 (Reset) s |
| Number of Timer Functions | Single |
| Switch Configuration | DPDT |
| Current Maximum | 5 A |
| Maximum Operating Temperature | +55 °C |
| Contact Configuration | DPDT |
