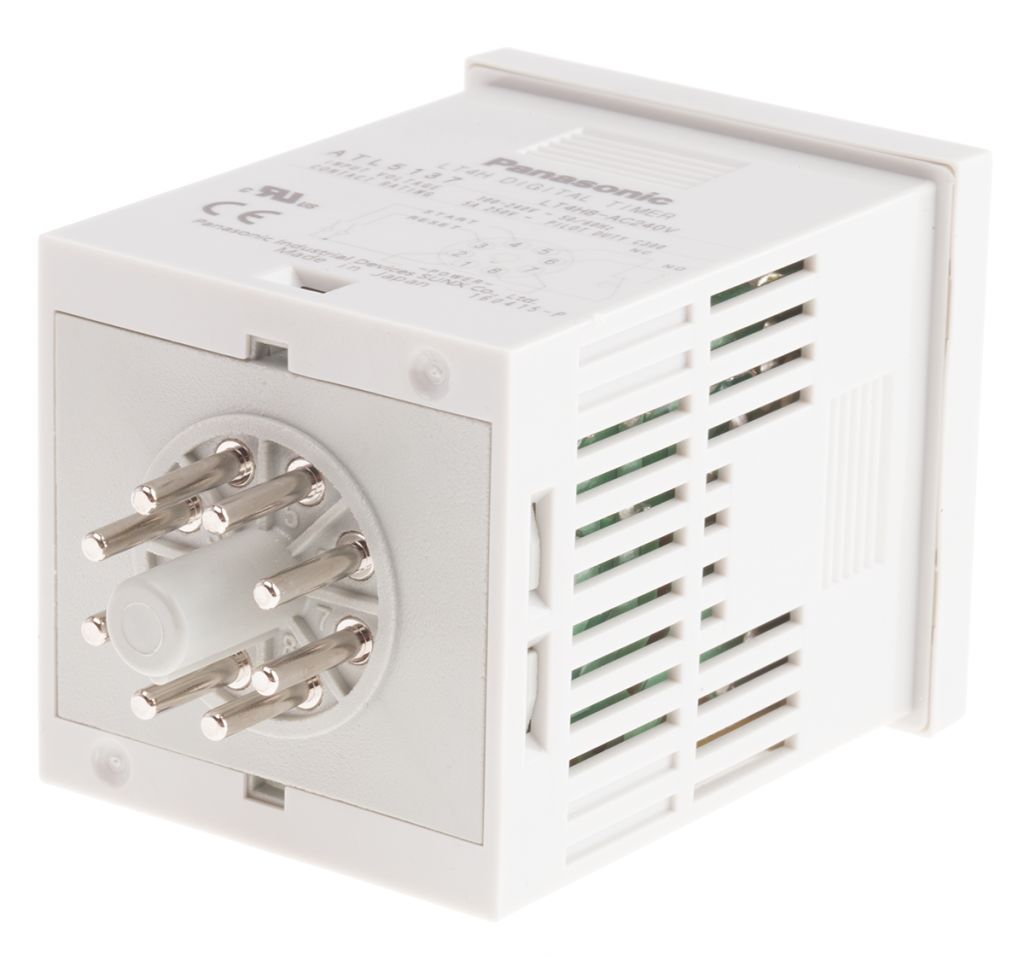

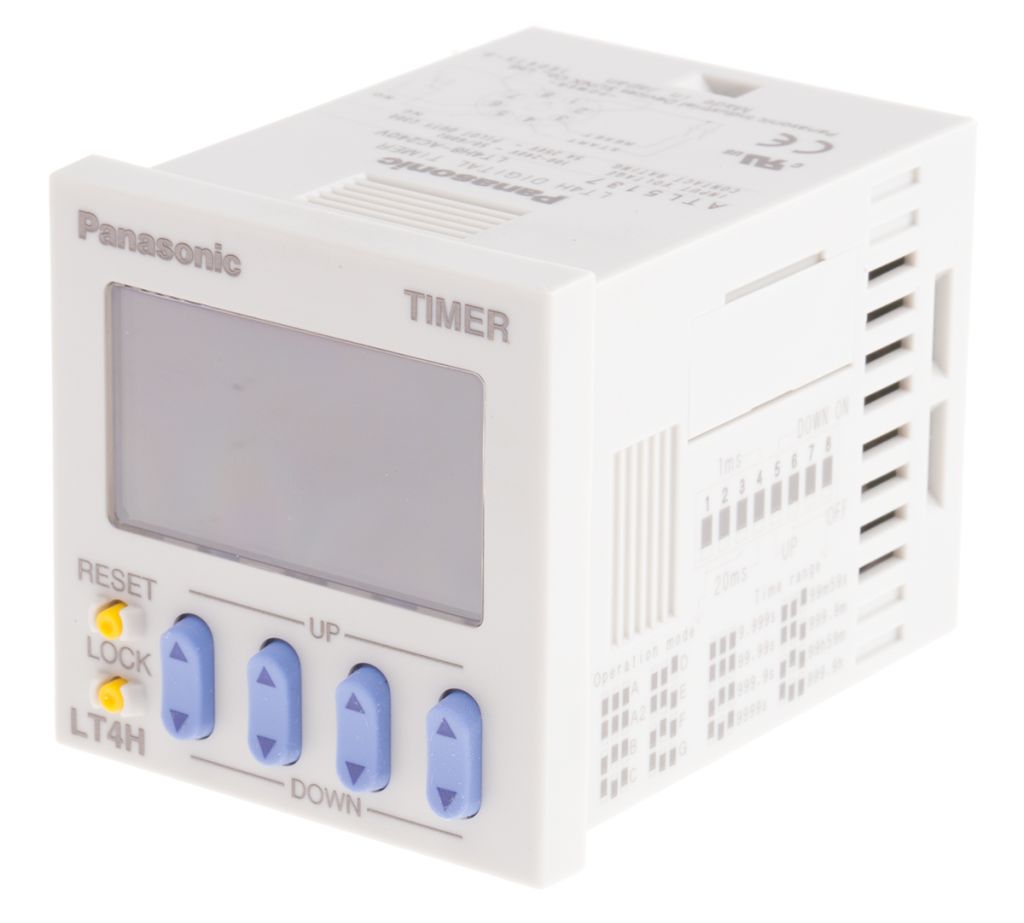

Panasonic SPDT Multi Function Timer Relay, 100 → 240V ac 9.999 s → 999.9h
- RS Stock No.:
- 8127914
- Mfr. Prt No.:
- LT4H8-AC240V
- Brand:
- Panasonic
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 8127914 |
| Product description | Panasonic SPDT Multi Function Timer Relay, 100 → 240V ac 9.999 s → 999.9h |
| Manufacturer / Brand | Panasonic |
| Manufacturer part number | LT4H8-AC240V |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 17, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Specifications
| Attribute | Value |
| Brand | Panasonic |
| Supply Voltage | 100 → 240 V ac |
| Mode of Operation | Power ON Delay, Pulse ON Delay, Pulse One Shot, Signal Flicker, Signal OFF Delay, Signal ON Delay |
| Mounting Type | Flush Mount |
| Time Range | 9.999 s → 999.9 h |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 2 |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | SPDT |
| Current Maximum | 5 A |
| Terminal Type | 8-Pin Connector |
| Minimum Operating Temperature | -10 °C |
| Contact Material | Silver Alloy |
| Depth | 48 mm |
| Length | 48 mm |
| Width | 70.1 mm |
| Time Delay | 0.5 s |
| Maximum Operating Temperature | +50 °C |
| Switch Configuration | SPDT |
