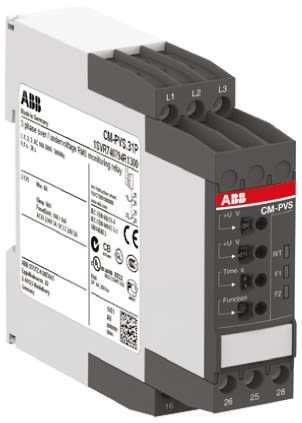

CM-PVS Three-Phase Monitoring Relays
The CM-PVS.x1 are monitoring relays for three-phase mains. They monitor the phase parameters phase sequence, phase failure, over- and undervoltage. The threshold values for over- and undervoltage are adjustable.
Monitoring of three-phase mains for phase sequence (can be switched off), phase failure, over- and undervoltage
Threshold values for over- and undervoltage are adjustable as absolute values
Tripping delay can be adjusted or switched off by means of a logarithmic scale
ON-delayed or OFF-delayed tripping delay selectable
Powered by the measuring circuit
True RMS measuring principle
2 c/o (SPDT) contacts
3 LEDs for status indication
Specifications
| Attribute | Value |
| Brand | ABB |
| Height | 85.6 mm |
| Length | 103.7 mm |
| Minimum Voltage Sensed | 300 V ac |
| Voltage Sensing Range | 300 → 500 V ac |
| Monitoring Application | Phase, Voltage |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25 °C |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Width | 22.5 mm |
| Maximum Operating Temperature | +60 °C |
| Time Delay | 0.1 → 30 s, 0 s |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Dimensions | 103.7 x 22.5 x 85.6 mm |
| Electrical Phase | 3 |
| Frequency Sensing Range | 45 → 65 Hz |
| Operating Temperature Range | -25 → +60 °C |
| Maximum Voltage Sensed | 500 V ac |
