1377, Breadboard SMT Breakout PCB
- RS Stock No.:
- 1245457
- Mfr. Prt No.:
- 1377
- Brand:
- ADAFRUIT INDUSTRIES
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1245457 |
| Product description | 1377, Breadboard SMT Breakout PCB |
| Manufacturer / Brand | ADAFRUIT INDUSTRIES |
| Manufacturer part number | 1377 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1245457 |
| Product description | 1377, Breadboard SMT Breakout PCB |
| Manufacturer / Brand | ADAFRUIT INDUSTRIES |
| Manufacturer part number | 1377 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details

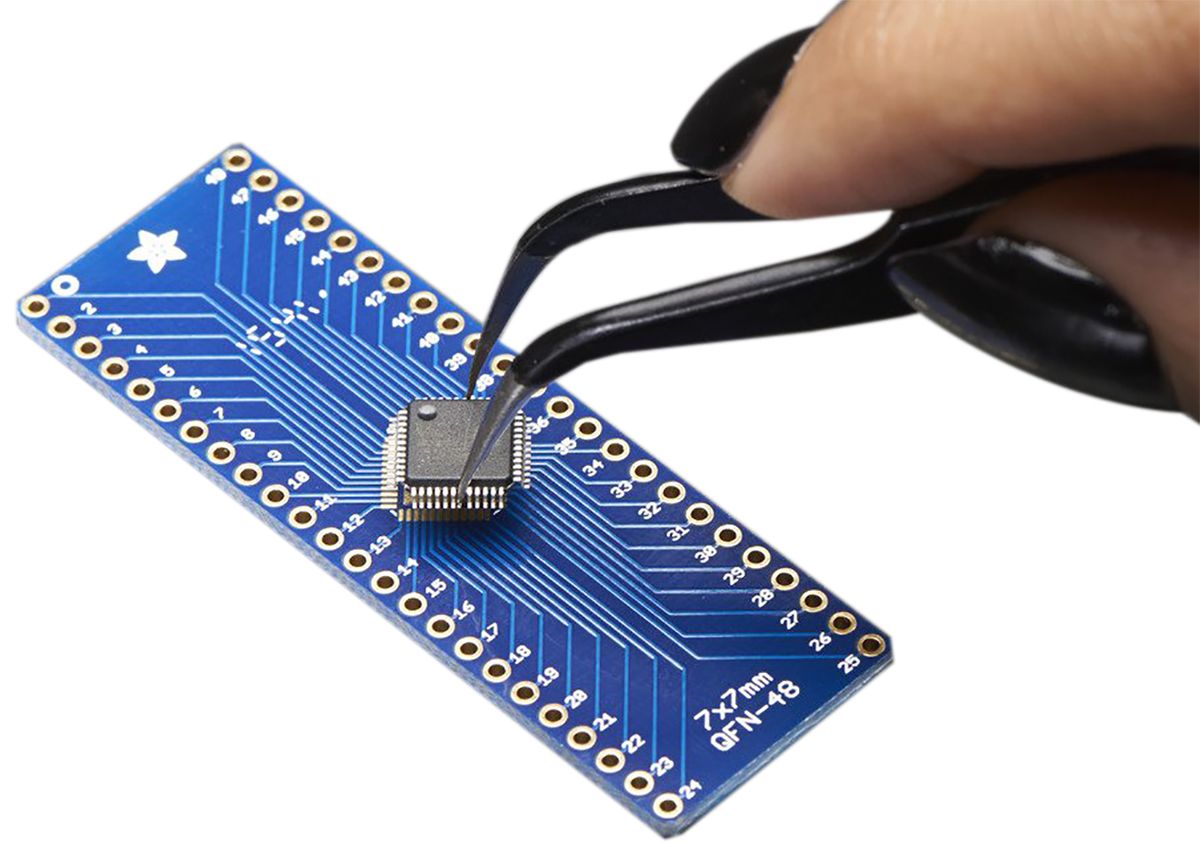

SMT Breakout PCB for 48-QFN or 48-TQFP
SMT Breakout PCB by Adafruit is suitable for the 7 mm square 48-QFN or 48-TQFP chip and helps to get prototypes fast. One side of PCB caters for 48-QFN pin out with traces going to two rows of 0.1 in spaced holes. The opposite side of PCB is identical and caters 48-TQFP chip. Solder the chip to either side of the board and you are ready to connect on any solderless breadboard. Each side of the board has a THM pad for connecting a heat sink or to connect a wire for grounding.
Contents:
3 Identical SMT Breakout PCB
Specifications
| Attribute | Value |
| Brand | ADAFRUIT INDUSTRIES |
| Type | SMT Breakout PCB |
| DIP Capacity | 48 |
