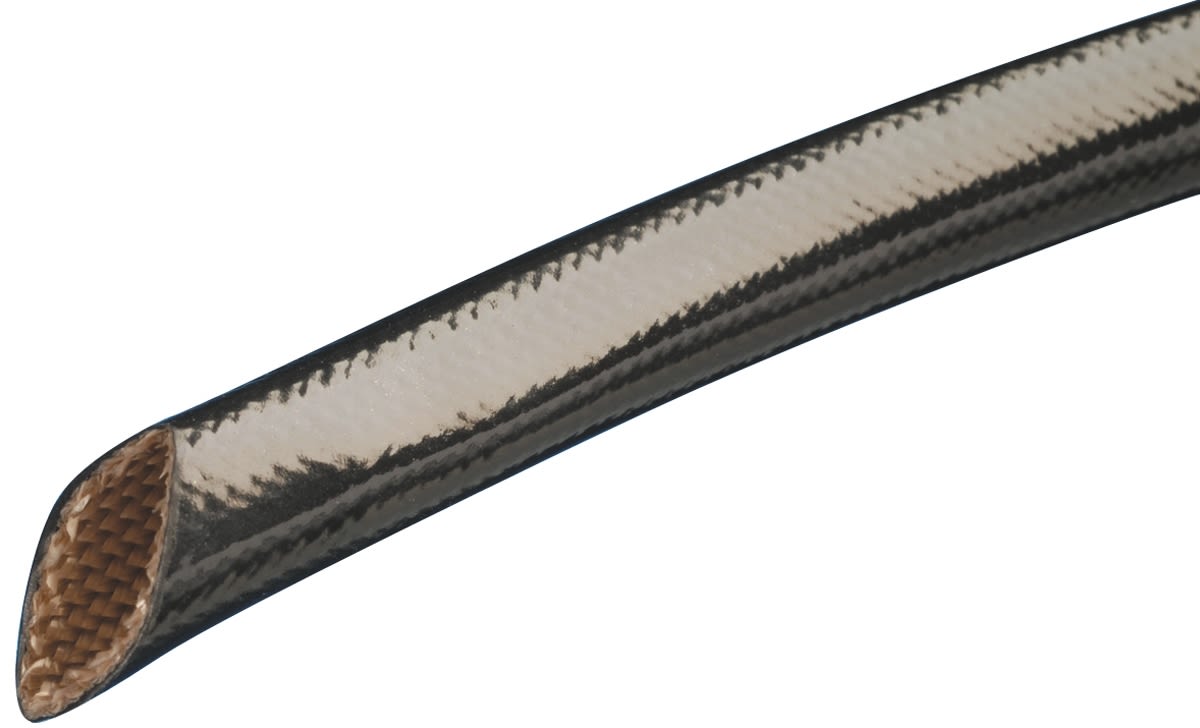

Alpha Wire Expandable Braided Fiberglass PVC Black Cable Sleeve, 7.06mm Diameter, 30m Length
- RS Stock No.:
- 8225248
- Mfr. Prt No.:
- PF1302 BK005
- Brand:
- Alpha Wire
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8225248 |
| Product description | Alpha Wire Expandable Braided Fiberglass PVC Black Cable Sleeve, 7.06mm Diameter, 30m Length |
| Manufacturer / Brand | Alpha Wire |
| Manufacturer part number | PF1302 BK005 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: US
Product Details
PVC Coated Fibreglass Sleeving PIF-130 Range
PVC coated fibreglass cable sleeving that provides extra protection for cable in a harsh external environment. It is tough and durable, maintaining its structure under high vibration, abrasion, mechanical stress and temperature variations.
Note
Please note that this product may be supplied in a maximum of 3 pieces.
Features and benefits
• Excellent for use in tough external environments
• Fits neatly over wire and cable without the need to shrink to size
• Flexible
• Good abrasion resistance
• Oil resistance
• Does not fray, bend or knot
• Performs well in high temperatures
• PVC coated
Specifications
| Attribute | Value |
| Brand | Alpha Wire |
| Sleeve Diameter | 7.06 mm |
| Colour | Black |
| Braided | Yes |
| Wall Thickness | 0.51 mm |
| Sleeve Length | 30 m |
| Maximum Operating Temperature | +130 °C |
| Minimum Cable Diameter | 6.55 mm |
| Expandable | Yes |
| Minimum Operating Temperature | -20 °C |
| Dielectric Strength | 5 kV |
| Maximum Cable Diameter | 7.06 mm |
| Shielded | Yes |
| Material | Fiberglass PVC |
