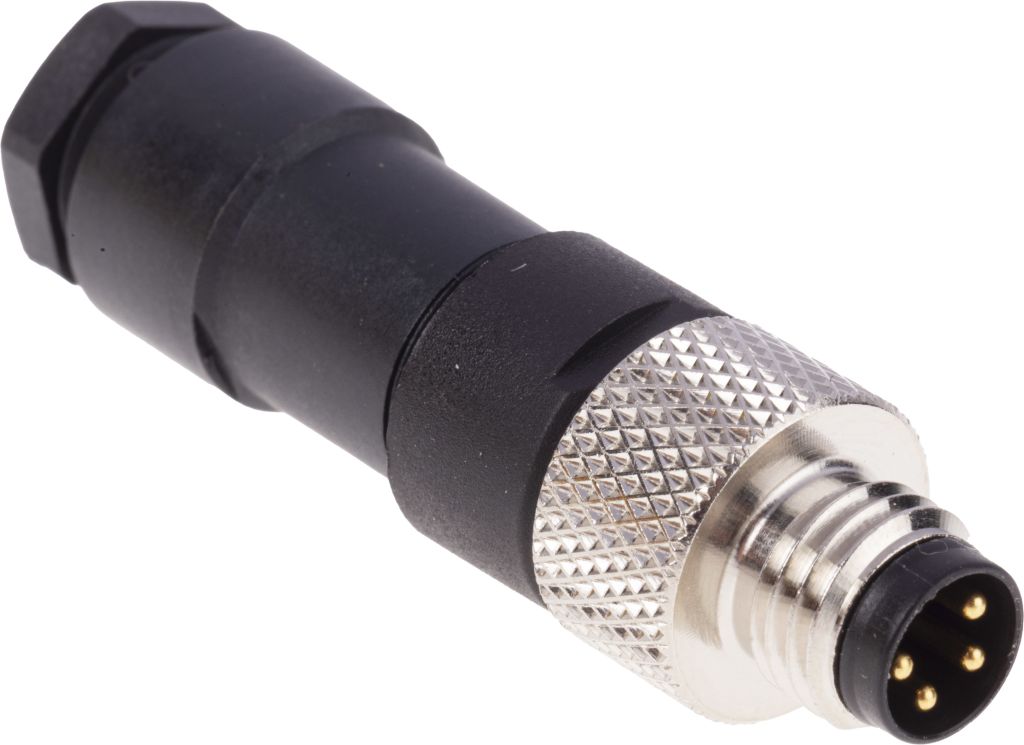

Binder Cable Mount Connector, 4 Contacts, M8 Connector, Plug
- RS Stock No.:
- 3116013
- Mfr. Prt No.:
- 99 3383 00 04
- Brand:
- Binder
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
RS stock number | 3116013 |
Product description | Binder Cable Mount Connector, 4 Contacts, M8 Connector, Plug |
Manufacturer / Brand | Binder |
Manufacturer part number | 99 3383 00 04 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Nov 16, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details
Plugs and Sockets M8 x 1, 768 Series
Specifications
Attribute | Value |
Brand | Binder |
Connector Size | M8 |
Current Rating | 4.0 A |
Mounting Type | Cable Mount |
Body Orientation | Straight |
Termination Method | Solder |
Series | 768 |
Plug/Socket | Plug |
Contact Plating | Gold |
Housing Material | Polymer |
Voltage Rating | 30 V |
Contact Material | Brass |
Shell Size | 12 |
Mating Type | Snap-In |
IP Rating | IP67 |
Number of Contacts | 4 |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -25 °C |
Contact Gender | Male |
