RS PRO Clearance Gauge, 0.1mm min, 0.25mm max
- RS Stock No.:
- 2224450
- Brand:
- RS PRO
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 2224450 |
| Product description | RS PRO Clearance Gauge, 0.1mm min, 0.25mm max |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details

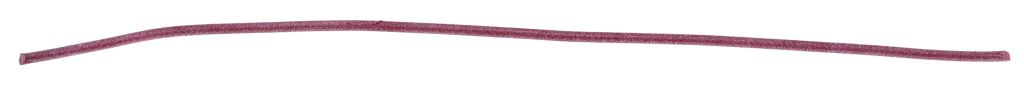

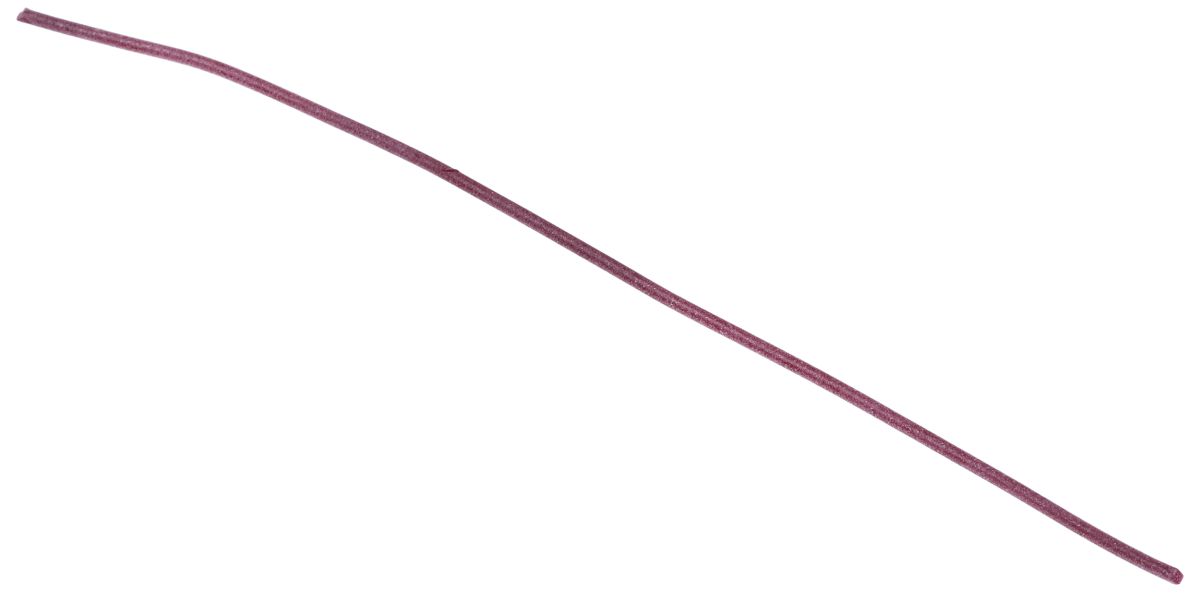

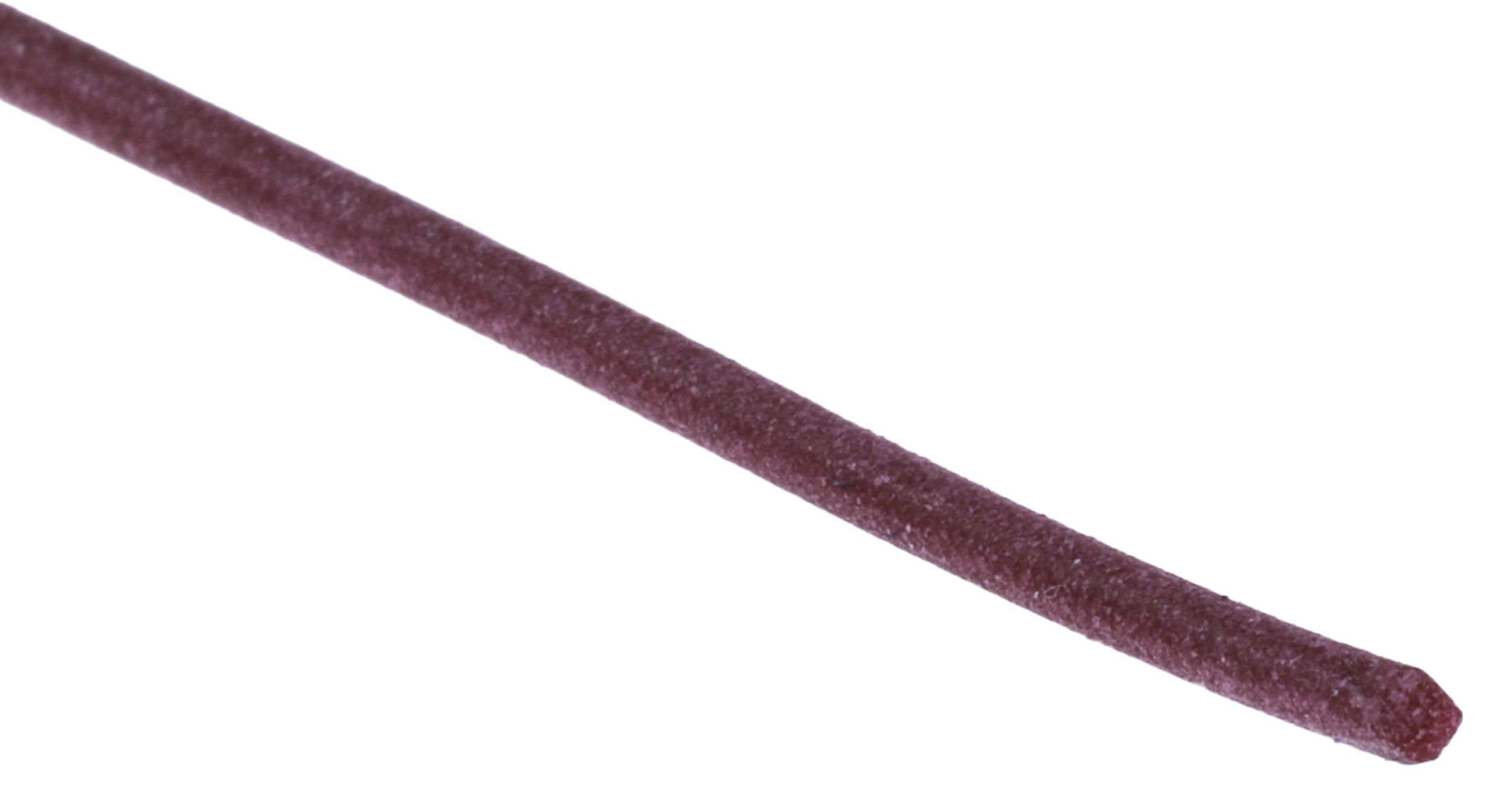

Plastigauges

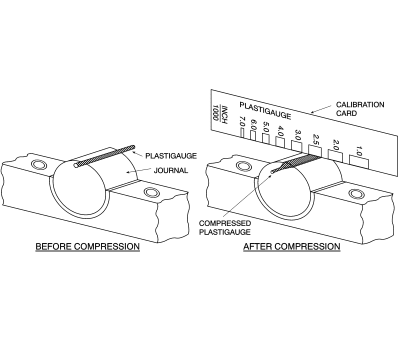

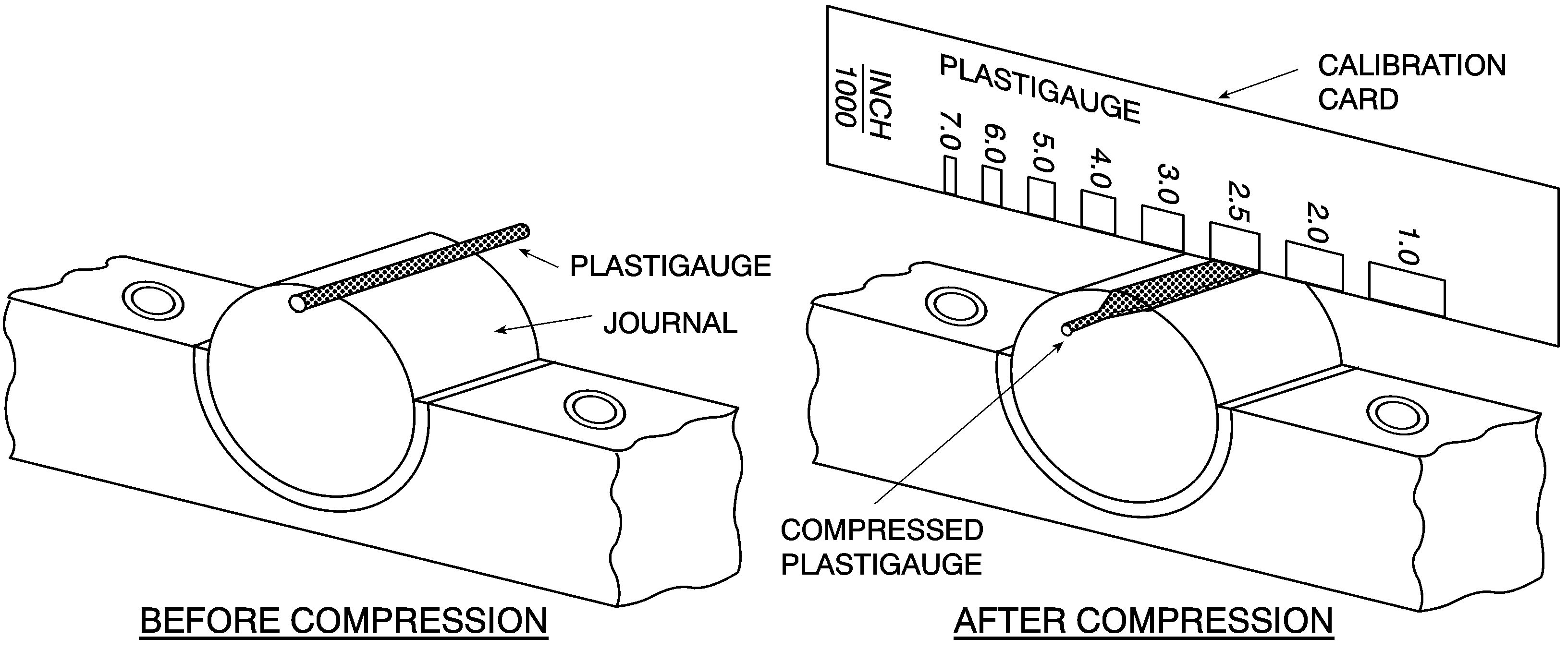

RS Pro plasticgauge provides a simple effective method for the measurement of clearance between fitted surfaces. Ideal for use with mains bearings, pipe flanges, head gasket, high spots, housings, injection moulding tools or where a feeler gauge cannot be inserted.
Note
Care must be taken when measuring gaps below 0.00025in. (0.06mm) to achieve results.
SUPPLIED_WITH : Plastigauge is supplied in packs to suit clearance
Can highlight, clearance, lobing, ovality on shafts

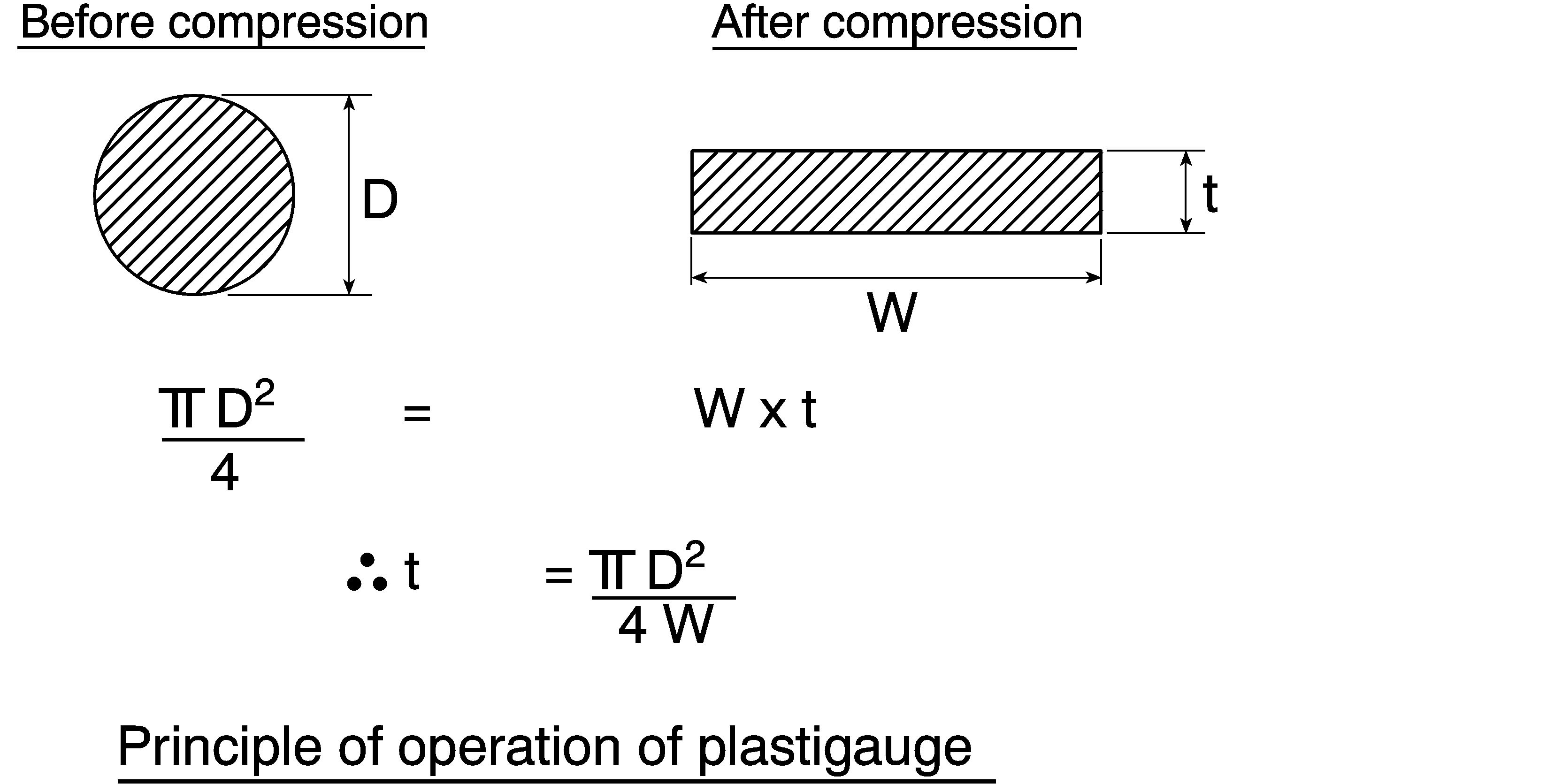

Volumetric measurement takes surface roughness into account
Calibration card supplied
Clearance measurement 0.001in. to 0.020in. (0.025 to 0.5mm) can be taken.
Non corrosive and oil soluble
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Minimum Measurement | 0.1 mm |
| Maximum Measurement | 0.25 mm |
