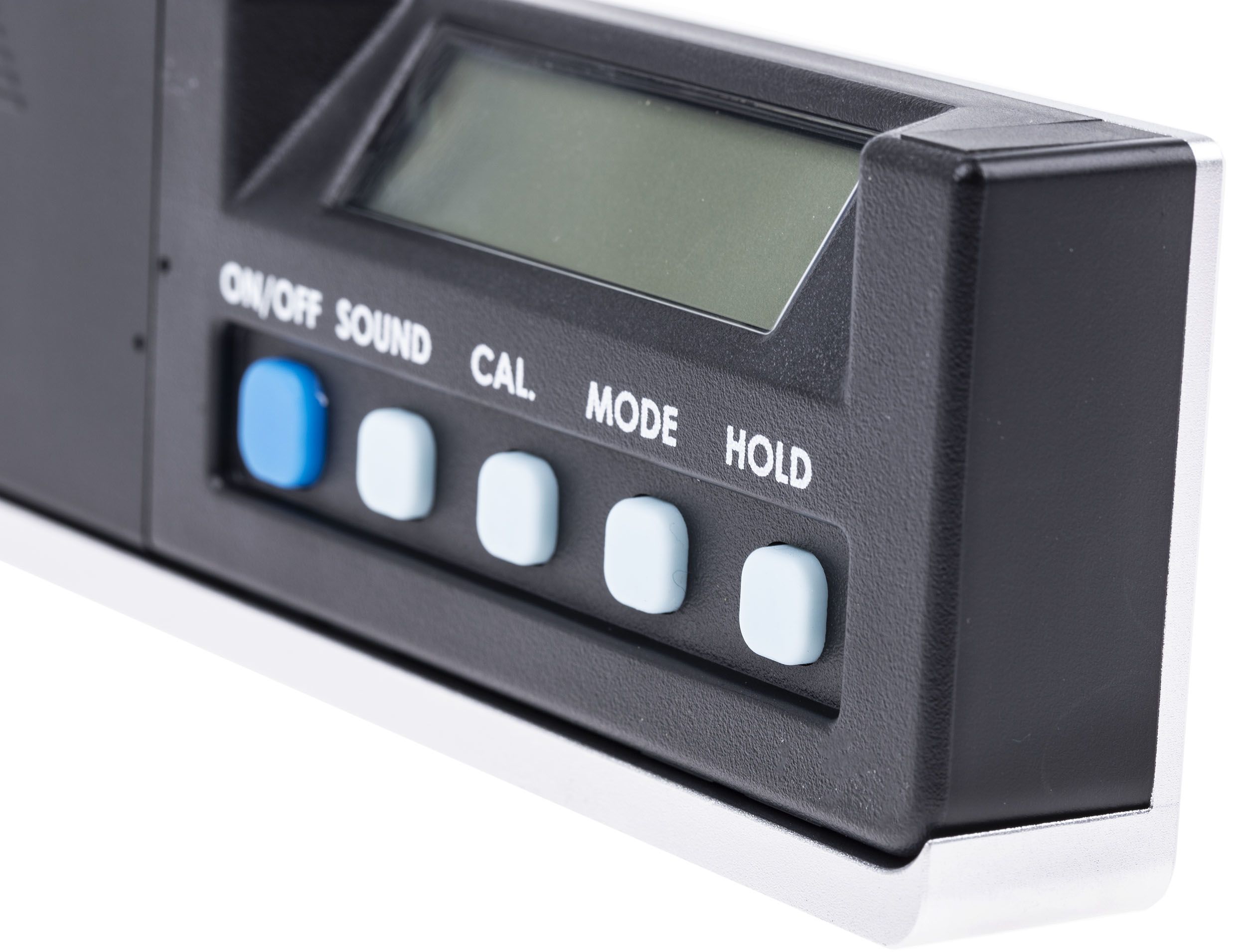

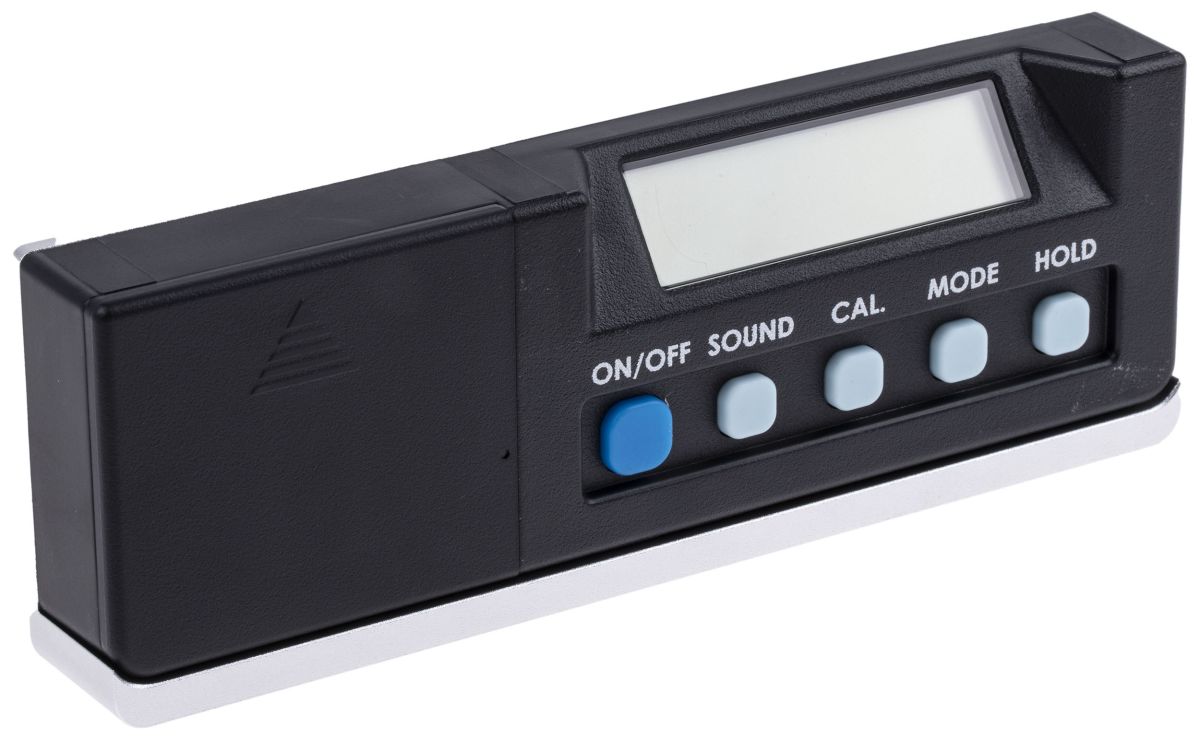

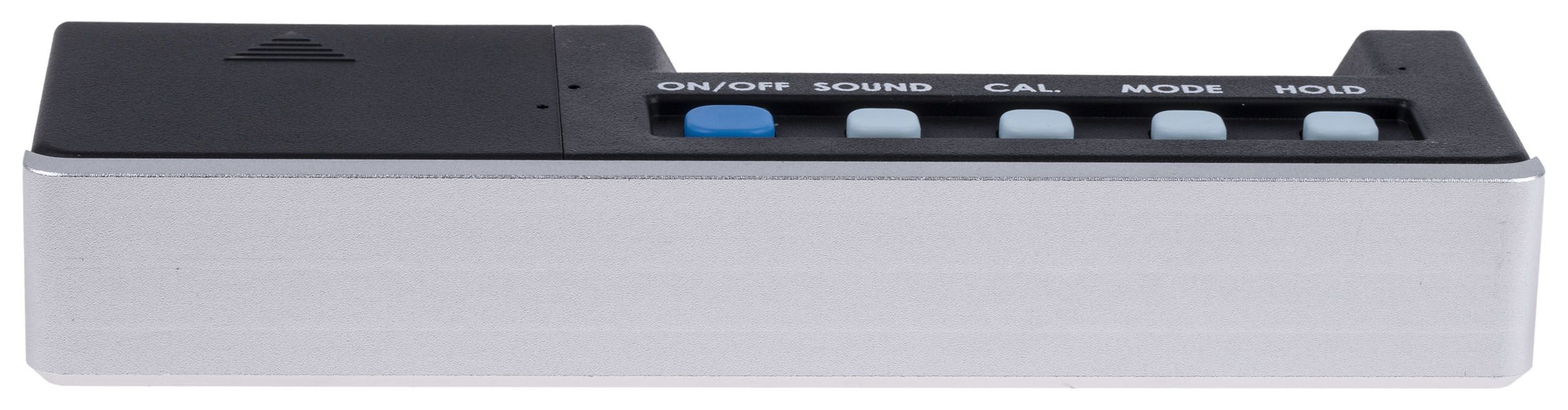

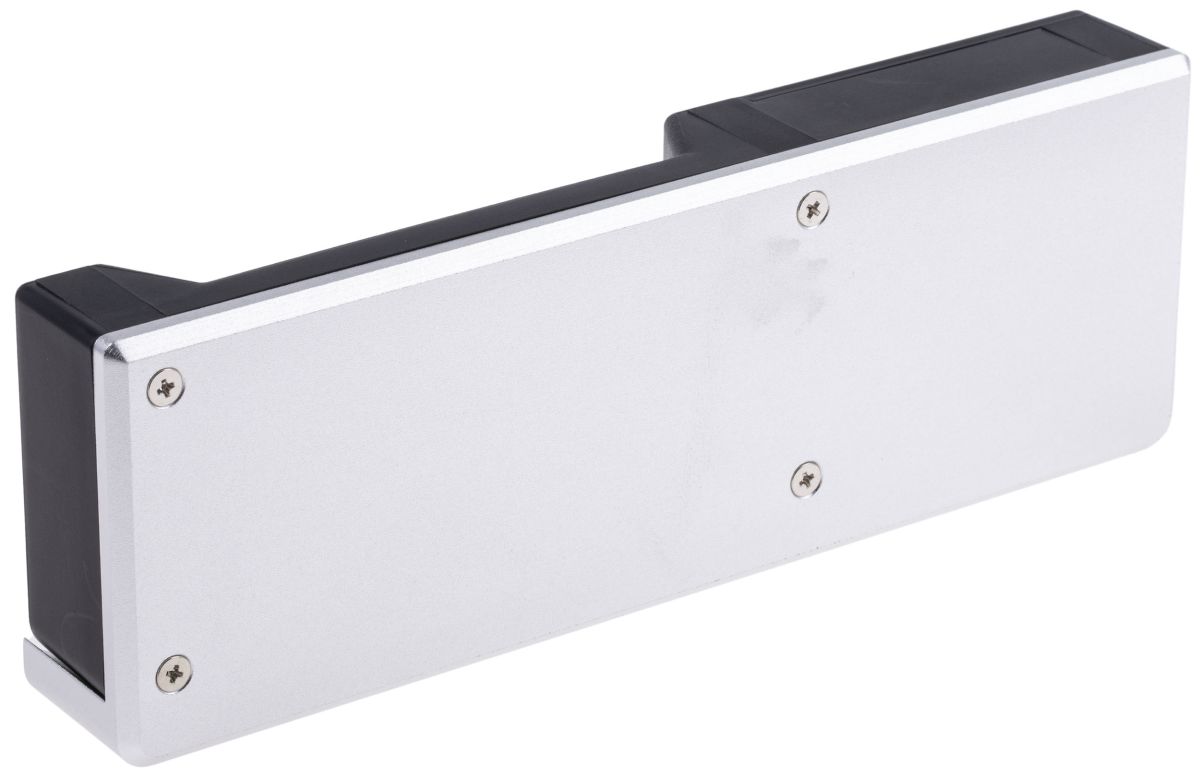

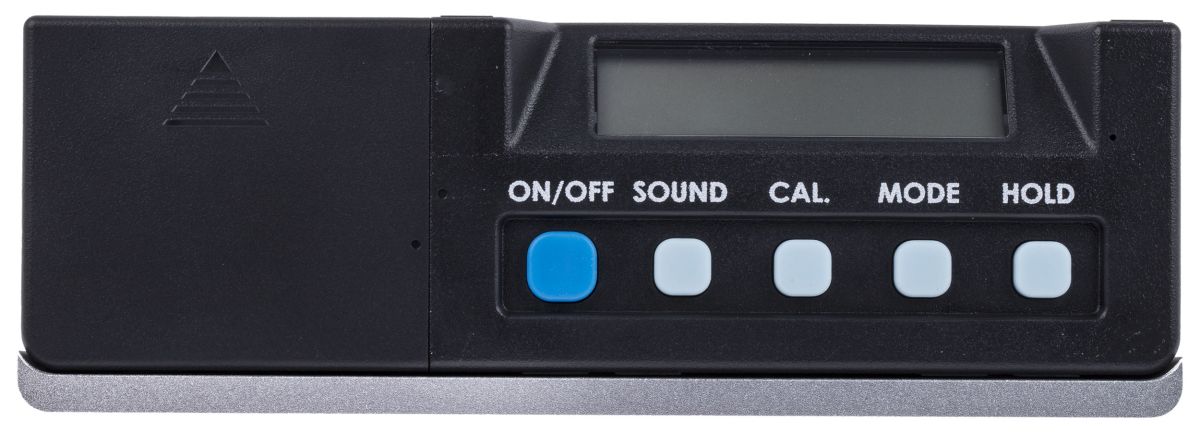

RS PRO 175mm LCD Inclinometer
- RS Stock No.:
- 6673916
- Brand:
- RS PRO
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
RS stock number | 6673916 |
Product description | RS PRO 175mm LCD Inclinometer |
Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Nov 15, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: TW
Product Details
RS PRO Digital Inclinometer
RS PRO digital inclinometer which can precisely measure gradients and angles as well as ensuring horizontal and vertical surfaces are level. A digital clinometer is an ideal measuring instrument that can measure the height of tall objects which a person couldn’t possible reach for example top of buildings.
RS PRO have a great range of spirit levels (also known as bubble levels) and inclinometers which are invaluable for precision levelling measurement in a multitude of jobs.
Features and Benefits:
- Digital - quick and accurate measurement of gradient, easy to read and excellent precision in measuring and displaying inclines
- Selectable acoustic signal to indicate 0° or 90°
- Hold function – holds current reading on the display
- Choice of measurement units: degrees °, percentage %, or in/ft
- Alignment arrows – shows which direction the level needs to turn to get a satisfactory horizontal or vertical surface

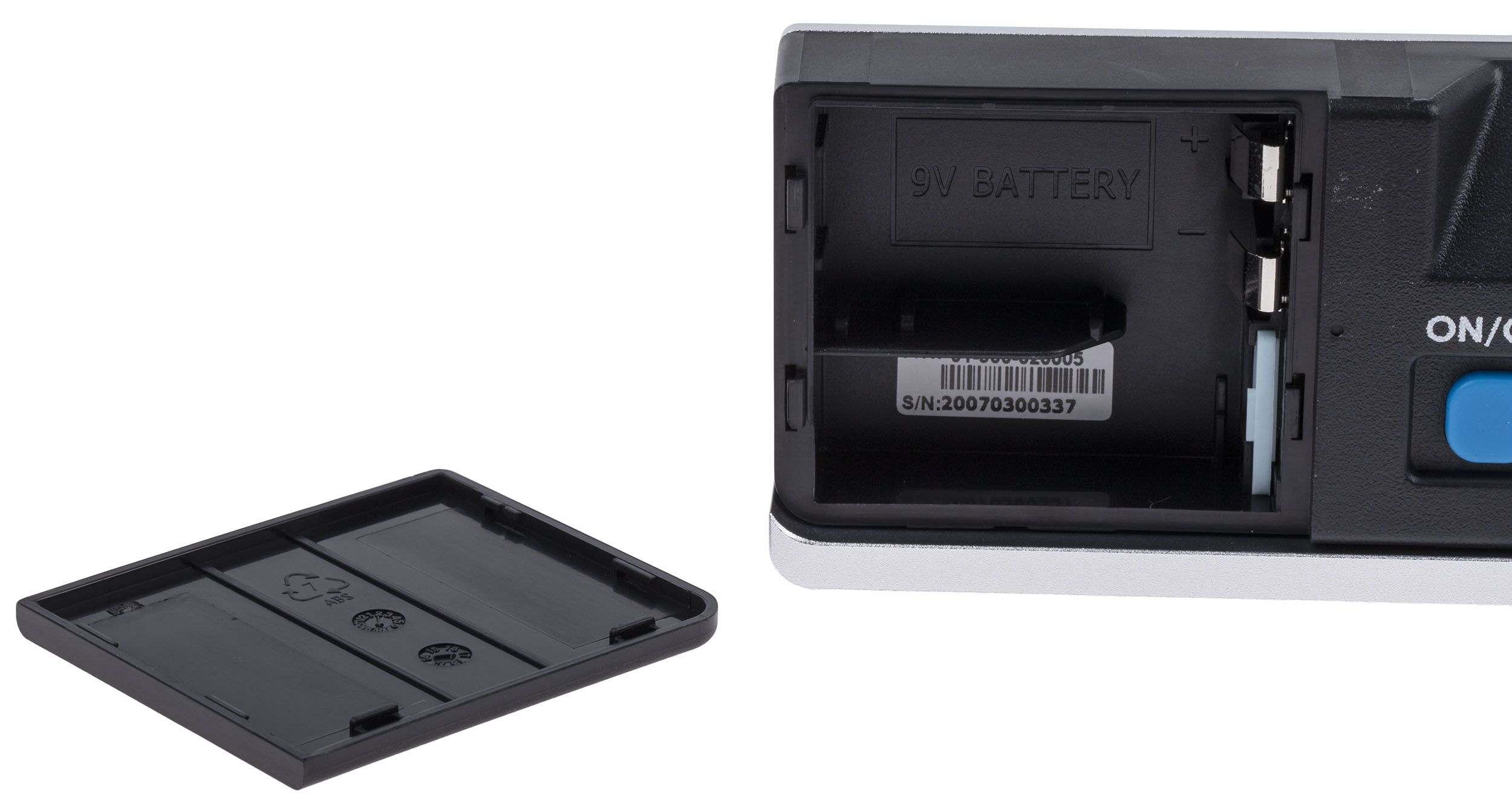

- Battery 9V - Battery not supplied, for a suitable battery see RS 826-4435
- Will switch off automatically if not used for six minutes
- Length 175 mm
- Height 54 mm
- Width 25 mm
- Sound alarm on 0°
- Accuracy 0° - 10° and 80 - 90° ± 0.1°. All other angles ± 0.2°
- Range 360° in four 90° quadrants
- Resolution 0.1°
- Low battery indicator
Typical Applications:
Spirit Levels and Inclinometers are tools designed for precision levelling measurement in a multitude of jobs, from something as simple as putting a shelf up making sure it does not slope, to checking how level bricks are in a new wall. They are commonly used by
• Carpenters
• Stonemasons
• Bricklayers
• Surveyors
• DIY Enthusiasts
Specifications
Attribute | Value |
Level Type | Digital |
Brand | RS PRO |
Width | 21.4 mm |
Accuracy | ±0.2 ° |
Dimensions | 175 x 21.4 x 54 mm |
Length | 175 mm |
Height | 54 mm |
