Klauke, EK 50 ML UK Battery Powered Hydraulic Crimping Tool for Insulated and Uninsulated Crimp Terminals
- RS Stock No.:
- 1247697
- Mfr. Prt No.:
- EK50MLUK
- Brand:
- Klauke
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1247697 |
| Product description | Klauke, EK 50 ML UK Battery Powered Hydraulic Crimping Tool for Insulated and Uninsulated Crimp Terminals |
| Manufacturer / Brand | Klauke |
| Manufacturer part number | EK50MLUK |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1247697 |
| Product description | Klauke, EK 50 ML UK Battery Powered Hydraulic Crimping Tool for Insulated and Uninsulated Crimp Terminals |
| Manufacturer / Brand | Klauke |
| Manufacturer part number | EK50MLUK |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 29, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details
Klauke EK50ML Crimp Tool - UK Version

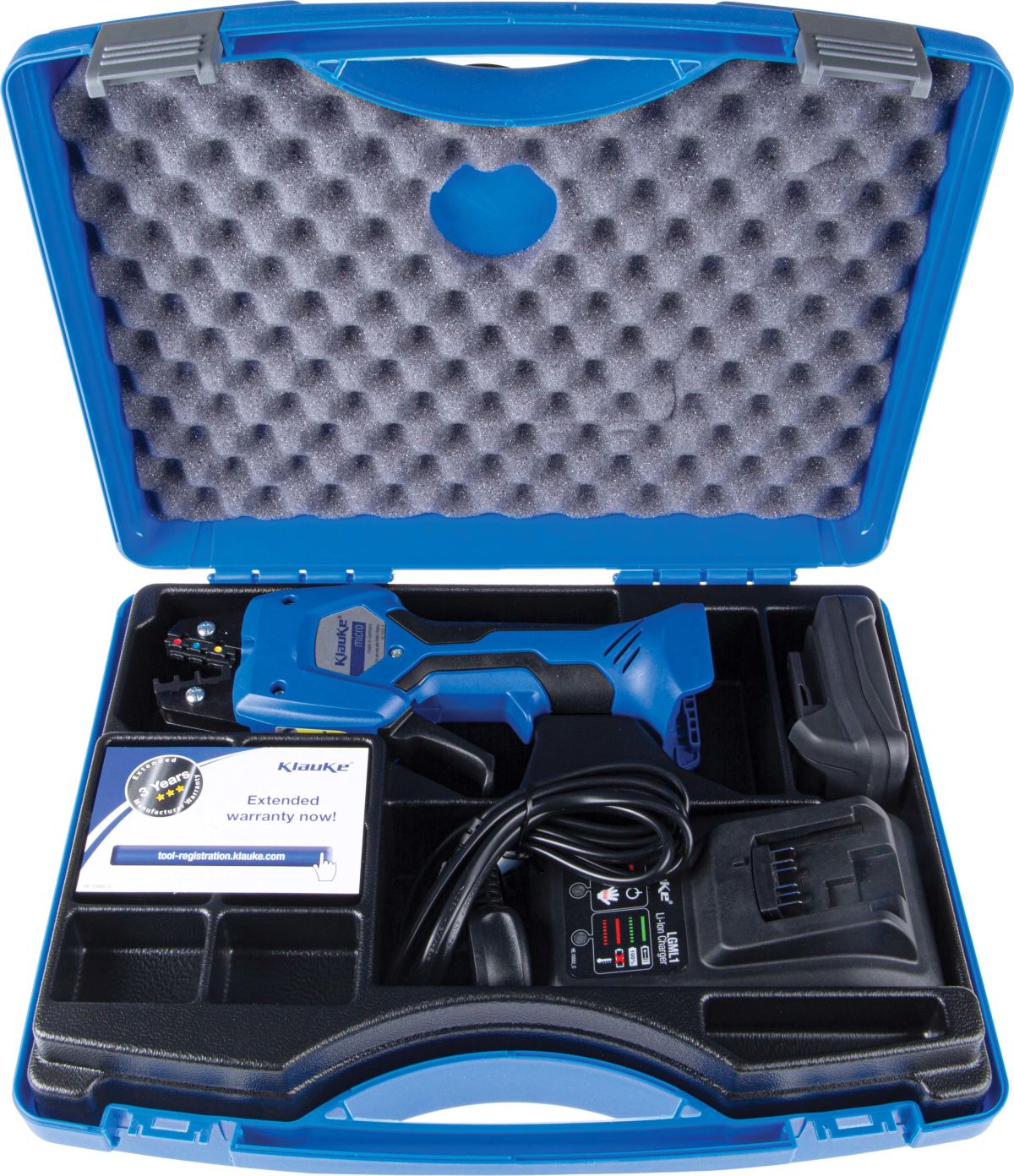

The Klauke EK50MLUK electro-mechanical crimp tool features a single lever trigger control for all tool functions. The ergonomic lightweight crimp tool with Power Sense function makes this versatile tool essential for high volume crimping. The motorised mechanism provides all necessary power required to produce accurate and consistent terminations while reducing overstraining often found with manual crimpers. The EK50MLUK tool is designed to crimp insulated and uninsulated terminals and covers a wide cable range, 0.14 mm² to 50 mm². Supplied with 10.8 V /1.5Ah Lithium-Ion battery, Charger for 10.8 V Lithium-Ion batteries, 230 V and crimping die for insulated connectors 0.5 mm² to 6.0 mm².
For replacement battery see stock number 908-2874
For replacement UK Charger see stock number 908-2887
Features and Benefits
Lightweight - Tool including battery < 1 kg
Easy handling - Power sense technology
Led lamp – Illuminates working area
Automatic retraction- when operations complete
Interchangeable Klauke 50 series crimping dies – up to 50 mm²
High speed crimping < 1.5 seconds
USB interface - When used with the PGA1 adapter (see part number 908-2929) information can be stored, downloaded and analysed.
Specifications
| Attribute | Value |
| Brand | Klauke |
| Series | EK 50 ML UK |
| Crimp Tool Type | Crimping Tool |
| Operation | Battery Powered Hydraulic |
| Crimp Connector Type | Insulated and Uninsulated Crimp Terminals |
