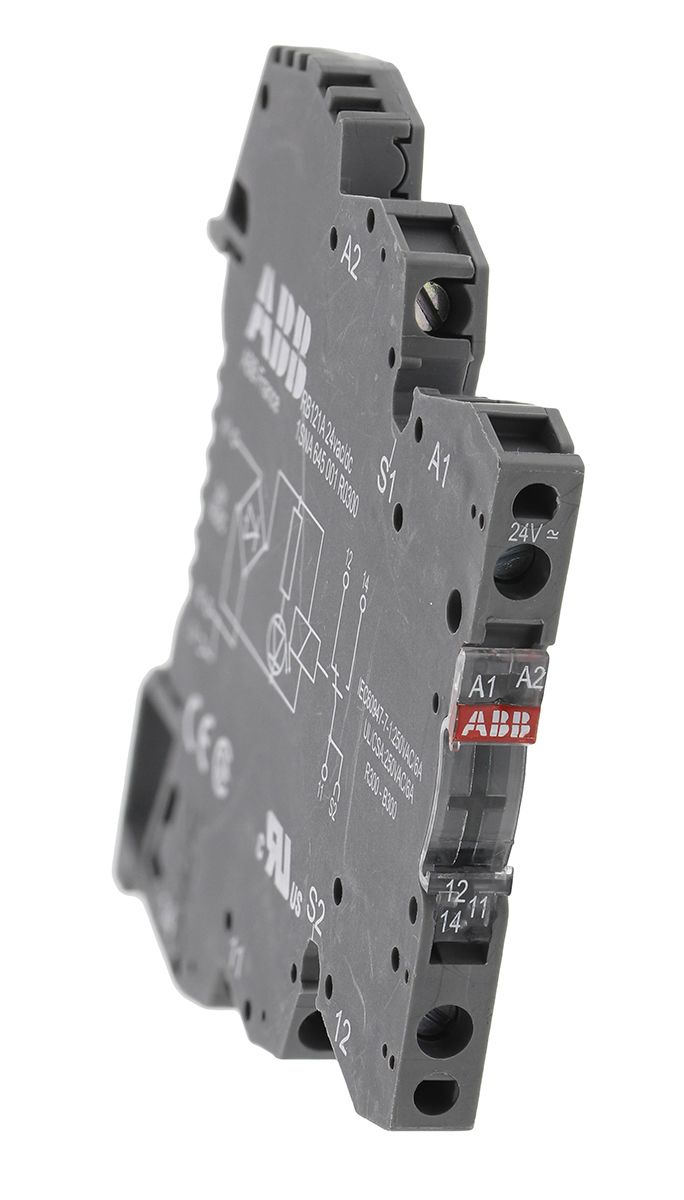

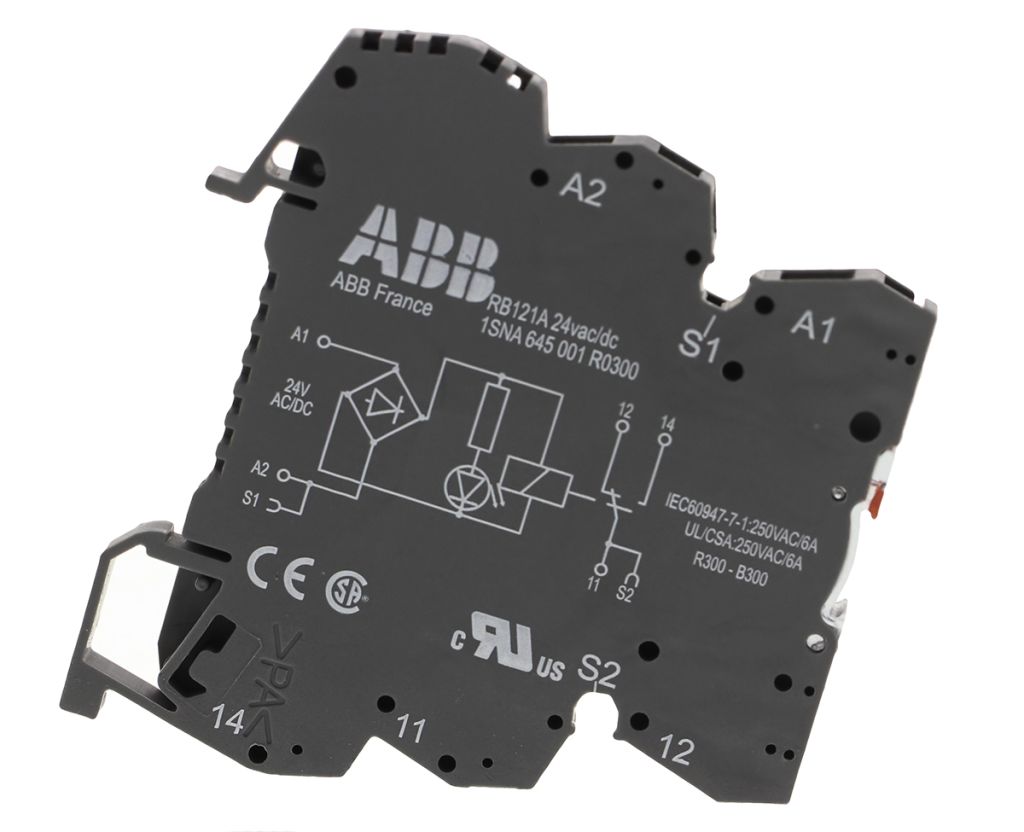

ABB 24V ac/dc SPDT Interface Relay Module DIN Rail Mount, R600
- RS Stock No.:
- 6699980
- Mfr. Prt No.:
- 1SNA645001R0300 RB121-24VUC
- Brand:
- ABB
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 6699980 |
| Product description | ABB 24V ac/dc SPDT Interface Relay Module DIN Rail Mount, R600 |
| Manufacturer / Brand | ABB |
| Manufacturer part number | 1SNA645001R0300 RB121-24VUC |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 15, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Specifications
| Attribute | Value |
| Brand | ABB |
| Turn Off Time | 8 ms |
| Height | 75 mm |
| Length | 70 mm |
| Turn On Time | 5 ms |
| Input Current | 10 mA |
| Contact Configuration | SPDT |
| Terminal Type | Screw |
| Minimum Operating Temperature | -20 °C |
| Series | R600 |
| Maximum Operating Temperature | +70 °C |
| Coil Voltage | 24 V ac/dc |
| Dimensions | 70 x 6 x 75 mm |
| Operating Temperature Range | -20 → +70 °C |
| Mounting Type | DIN Rail |
| Depth | 6 mm |
