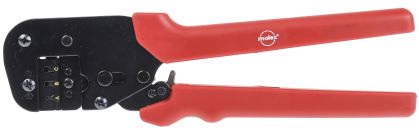

Molex Ratcheting Hand Crimping Tool, 28AWG to 16AWG
- RS Stock No.:
- 8227818
- Mfr. Prt No.:
- 64016-0200
- Brand:
- Molex
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 8227818 |
| Product description | Molex Ratcheting Hand Crimping Tool, 28AWG to 16AWG |
| Manufacturer / Brand | Molex |
| Manufacturer part number | 64016-0200 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8227818 |
| Product description | Molex Ratcheting Hand Crimping Tool, 28AWG to 16AWG |
| Manufacturer / Brand | Molex |
| Manufacturer part number | 64016-0200 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 15, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Molex PremiumGrade Series
Part of the T9999 series of hand crimp tools.
SCOPE Products: 2.36mm (.093") Diameter, Standard .093" Pin and Socket Crimp Terminals, 18-22 AWG,
Claspcon Pin and Socket Crimp Terminals, 16-24 AWG, and Commoning Terminals, 18-22 AWG
Power Connectors

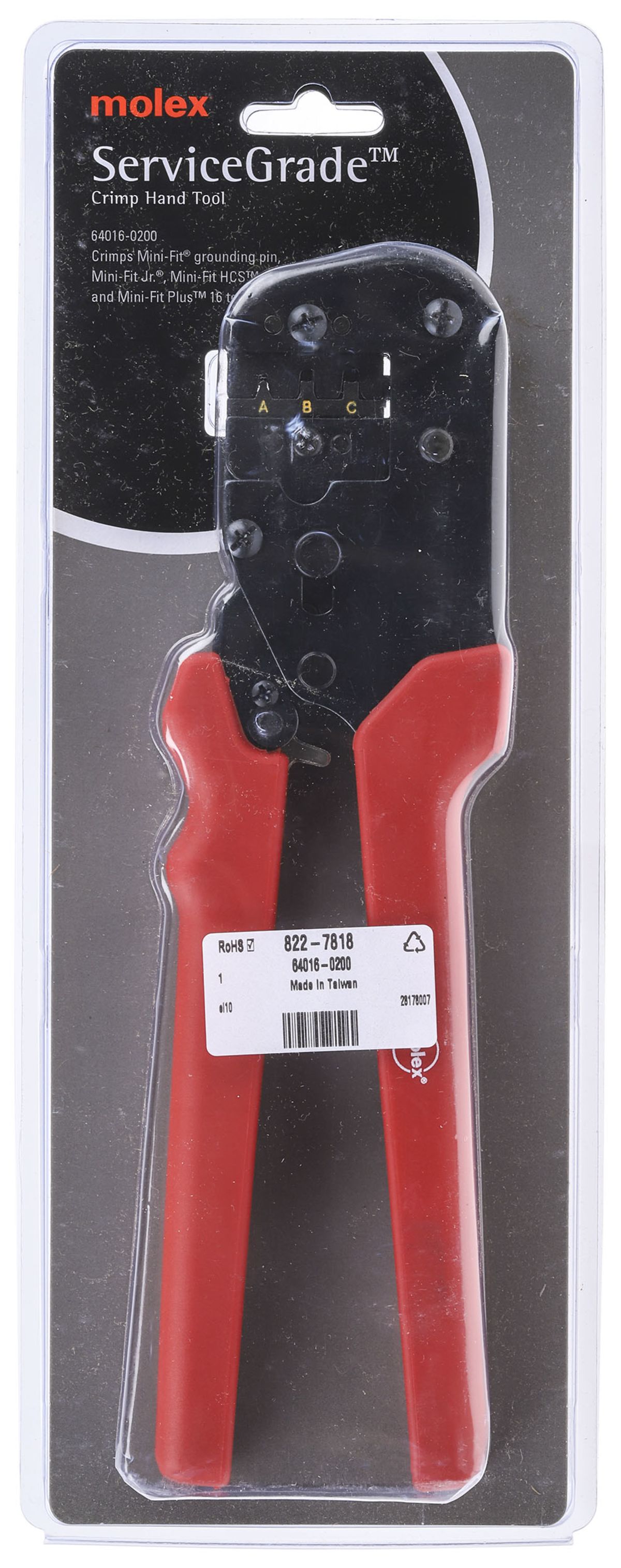

Molex ServiceGrade Hand Crimp Tool - Mini-Fit Terminals

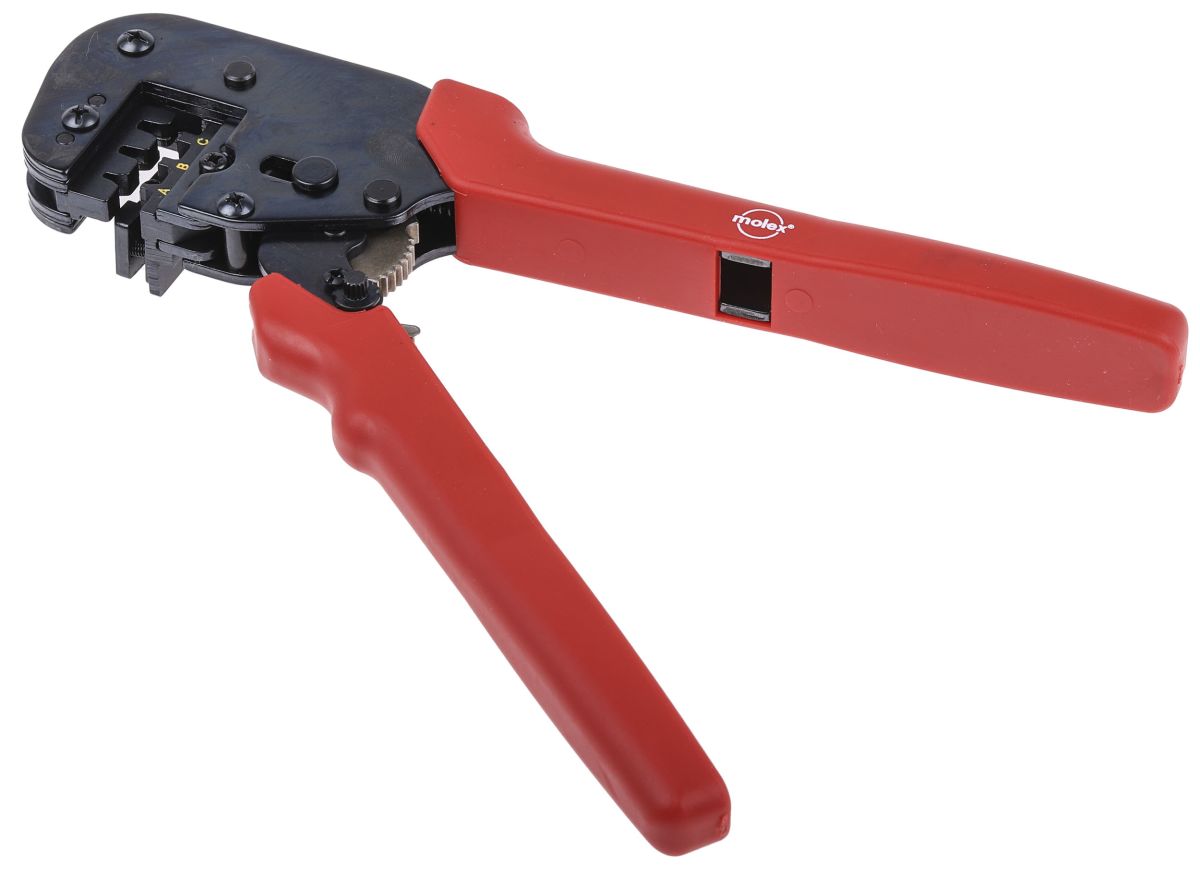

A ServiceGrade hand crimping tool designed for use with Mini-Fit Junior and Mini-Fit HCS male and female crimp terminals with a wire size range of 28 AWG to 16 AWG. This ServiceGrade hand crimping tool features a full cycle ratchet mechanism which ensures a full crimp is achieved. Soft grip ergonomic handles make the tool comfortable to use.
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping

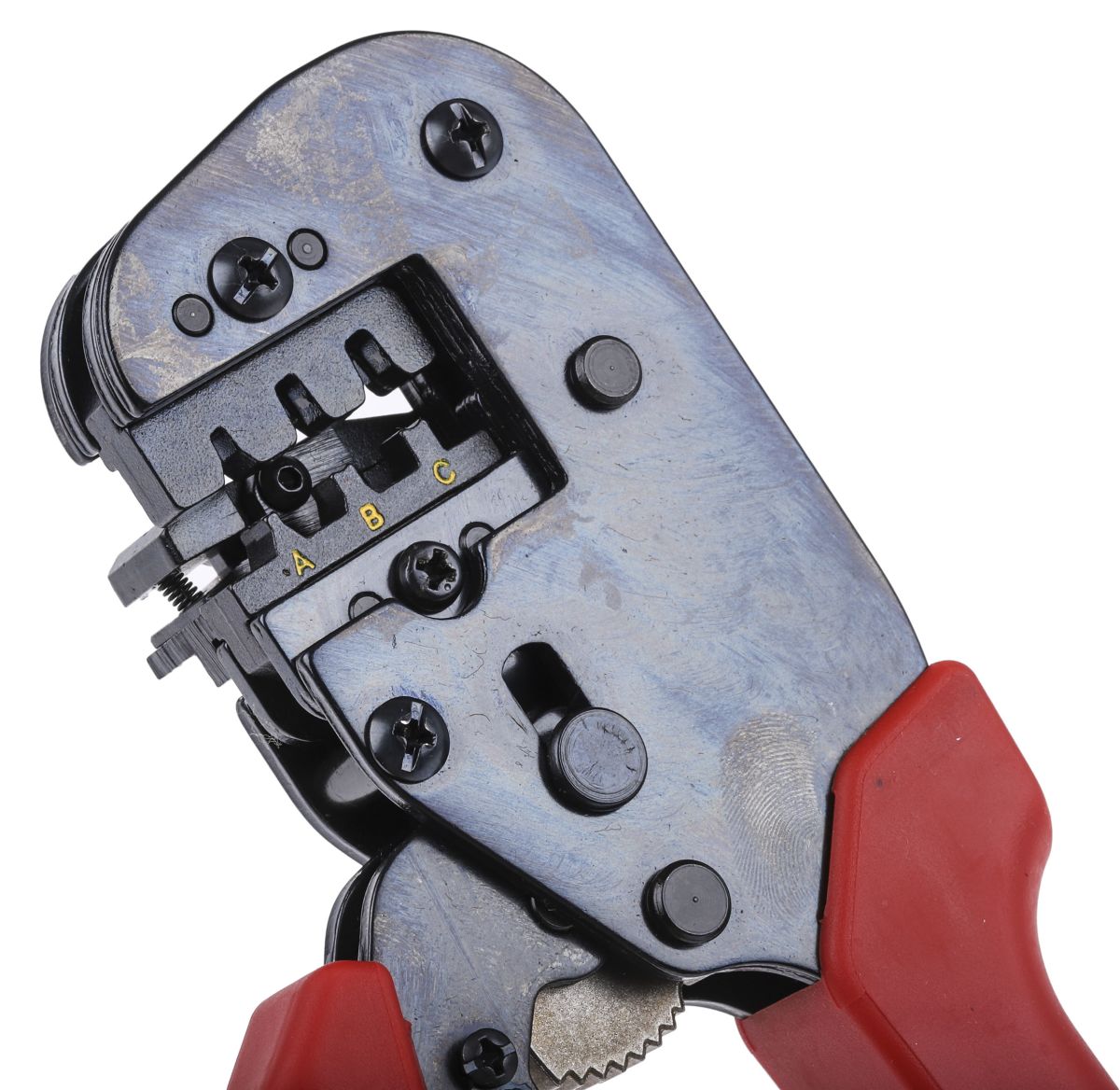

A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
This tool is RoHS compliant, however RoHS compliant is not required
Features and Benefits
• Full cycle ratchet for a complete crimp
• Soft grip ergonomic handles
Product Application Information
This ServiceGrade crimp hand tool is for use in field repair for a limited number of terminations
Specifications
| Attribute | Value |
| Brand | Molex |
| Crimp Tool Type | Crimping Tool |
| Operation | Hand |
| Ratcheting | Yes |
