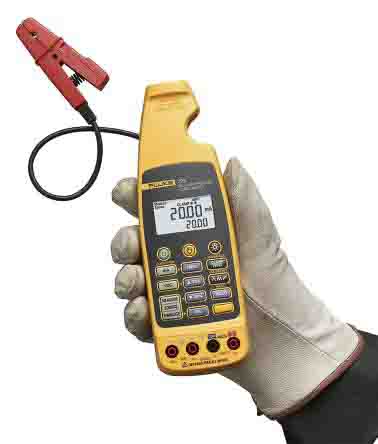

Fluke 773 DC Current Clamp Meter, 100mA dc, Max Current -, – A ac
- RS Stock No.:
- 6693493
- Mfr. Prt No.:
- Fluke 773
- Brand:
- Fluke
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 6693493 |
| Product description | Fluke 773 DC Current Clamp Meter, 100mA dc, Max Current -, - A ac |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | Fluke 773 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 17, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Specifications
| Attribute | Value |
| Brand | Fluke |
| Power Source | Battery |
| Width | 76 mm |
| Length | 248 mm |
| Dimensions | 248 x 76 x 41 mm |
| Best DC Voltage Accuracy | ±(0.2% rdg + 2dgts) |
| DC Voltage Measurement Resolution | 10 mV |
| Functions Measured | AC Current, DC Voltage |
| Model Number | 773 |
| Minimum Operating Temperature | -10 °C |
| Height | 41 mm |
| DC Current Measurement Resolution | 10uA |
| Maximum Conductor Size | 4.5 mm |
| Battery Life | 12 h |
| Jaw Capacity Busbars | 4.5 mm |
| Weight | 420 g |
| Absolute Maximum DC Current Measurement | 100 mA dc |
| Best DC Current Accuracy | ±(0.2% rdg + 5dgts) |
| Clamp Meter Type | DC Current Clamp Meter |
| Absolute Maximum AC Current Measurement | -, - A ac |
| Battery Type | AA |
| Absolute Maximum DC Voltage Measurement | 30 V dc |
| Display Type | LCD |
| Maximum Operating Temperature | +50 °C |
