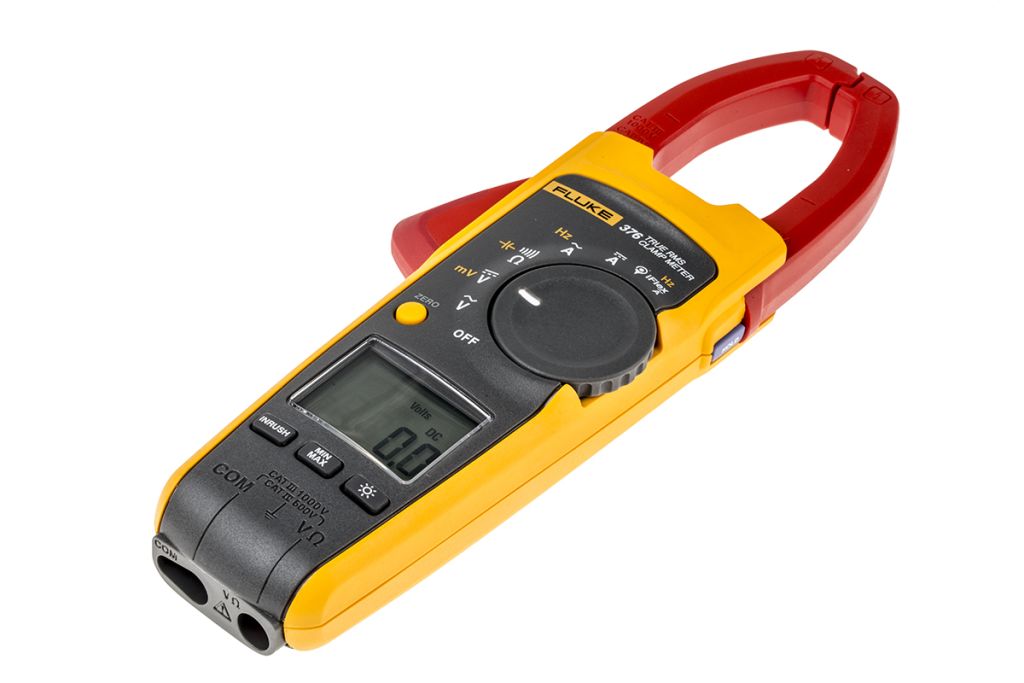

Fluke 376 AC/DC Clamp Meter, 999.9A dc, Max Current 999.9A ac CAT III 1000 V, CAT IV 600 V
- RS Stock No.:
- 9145424
- Mfr. Prt No.:
- Fluke 376
- Brand:
- Fluke
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 9145424 |
| Product description | Fluke 376 AC/DC Clamp Meter, 999.9A dc, Max Current 999.9A ac CAT III 1000 V, CAT IV 600 V |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | Fluke 376 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 17, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Specifications
| Attribute | Value |
| Brand | Fluke |
| Best AC Current Accuracy | 2.5 % |
| Power Source | Battery |
| Width | 43 mm |
| Length | 83 mm |
| Absolute Maximum Resistance Measurement | 60 kΩ |
| AC Current Measurement Resolution | 0.1 A |
| Dimensions | 83 x 43 x 246 mm |
| Best DC Voltage Accuracy | 1 % |
| DC Voltage Measurement Resolution | 0.1 V |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance |
| True RMS | Yes |
| Best AC Voltage Accuracy | 1.5 % |
| Model Number | 376 |
| Resistance Measurement Resolution | 100 mΩ |
| Minimum Operating Temperature | 10 °C |
| Height | 246 mm |
| DC Current Measurement Resolution | 0.1 A |
| Battery Type | AA |
| Absolute Maximum AC Voltage Measurement | 1000 V ac |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Best Resistance Measurement Accuracy | 1 % |
| Absolute Maximum DC Voltage Measurement | 1000 V dc |
| Display Type | Backlight |
| Maximum Operating Temperature | 50 °C |
| AC Voltage Measurement Resolution | 0.1 V |
| Jaw Capacity Busbars | 34 mm |
| Weight | 388 g |
| Safety Category Level | CAT III, CAT IV |
| Absolute Maximum DC Current Measurement | 999.9 A dc |
| Best DC Current Accuracy | 2 % |
| Clamp Meter Type | AC/DC Clamp Meter |
| Absolute Maximum AC Current Measurement | 999.9 A ac |
| Safety Category Voltage | 600 V, 1000 V |
