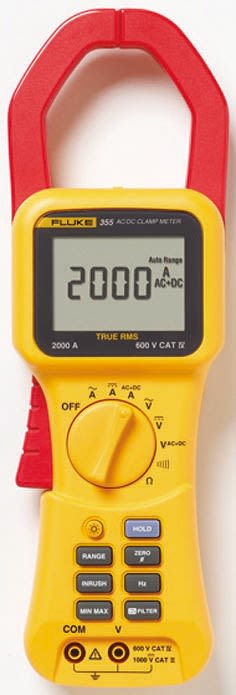

Fluke 355 AC/DC Clamp Meter, 2kA dc, Max Current 2kA ac CAT III 1000 V, CAT IV 600 V
- RS Stock No.:
- 0411970
- Mfr. Prt No.:
- FLUKE 355
- Brand:
- Fluke
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 0411970 |
| Product description | Fluke 355 AC/DC Clamp Meter, 2kA dc, Max Current 2kA ac CAT III 1000 V, CAT IV 600 V |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | FLUKE 355 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 17, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Specifications
| Attribute | Value |
| Brand | Fluke |
| Best AC Current Accuracy | ±(1.5% rdg + 5dgts) |
| Width | 98 mm |
| Dimensions | 300 x 98 x 52 mm |
| True RMS | Yes |
| Absolute Maximum Resistance Measurement | 400 kΩ |
| Best AC Voltage Accuracy | ±(1% rdg + 5dgts) |
| Model Number | 355 |
| Minimum Operating Temperature | 0 °C |
| Height | 52 mm |
| AC Voltage Measurement Resolution | 1 mV |
| Battery Life | 100 h |
| Weight | 814 g |
| Best DC Current Accuracy | ±(1.5% rdg + 5dgts) |
| Safety Category Level | CAT IV, CAT III |
| Resistance Measurement Resolution | 100 mΩ |
| Absolute Maximum AC Current Measurement | 2 kA ac |
| Safety Category Voltage | 600 V, 1000 V |
| Battery Type | AA |
| Absolute Maximum AC Voltage Measurement | 600 V ac |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Best Resistance Measurement Accuracy | ±1.5% + 5 Digits |
| Display Type | LCD |
| Power Source | Battery |
| Length | 300 mm |
| AC Current Measurement Resolution | 10 mA |
| Best DC Voltage Accuracy | ±(1% rdg + 5dgts) |
| DC Voltage Measurement Resolution | 1 mV |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Frequency, Resistance |
| DC Current Measurement Resolution | 10 mA |
| Maximum Conductor Size | 58 mm |
| Jaw Capacity Busbars | 58 mm |
| Absolute Maximum DC Current Measurement | 2 kA dc |
| Clamp Meter Type | AC/DC Clamp Meter |
| Absolute Maximum DC Voltage Measurement | 1000 V dc |
| Maximum Operating Temperature | +50 °C |
