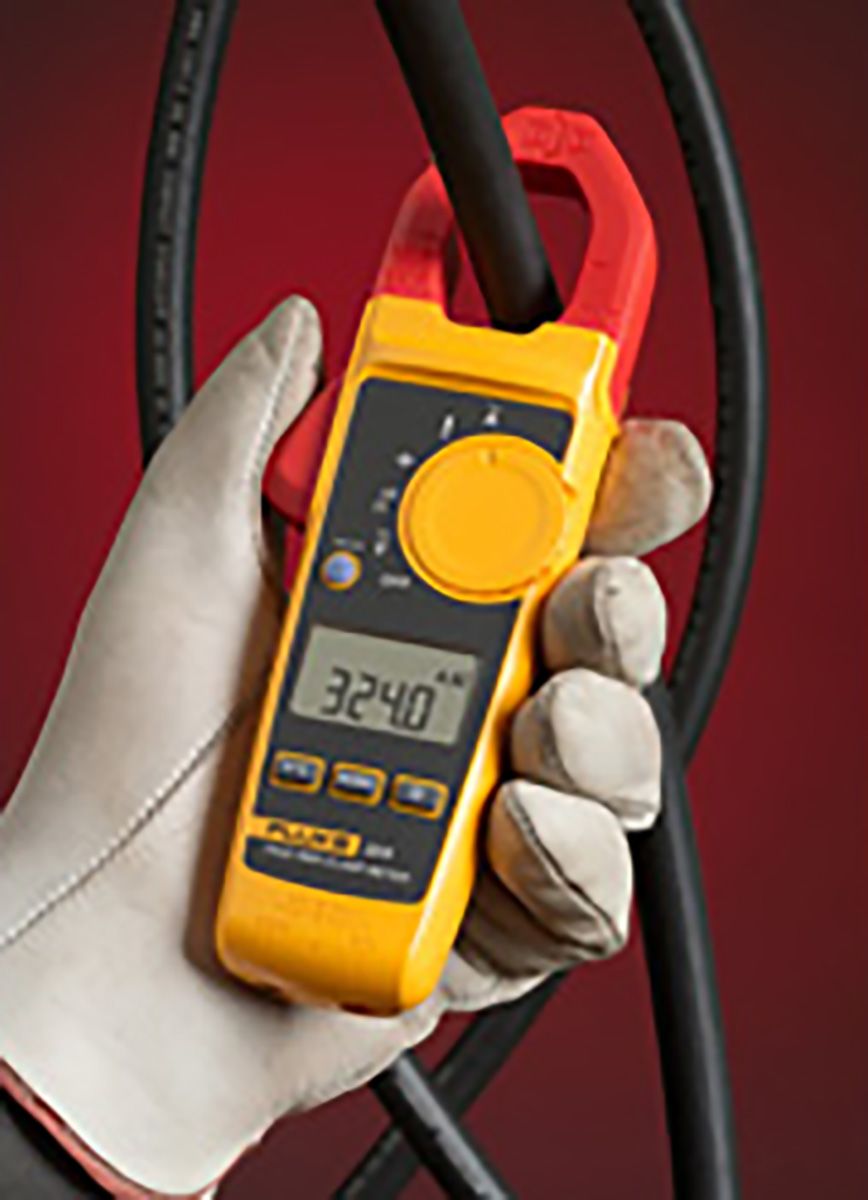

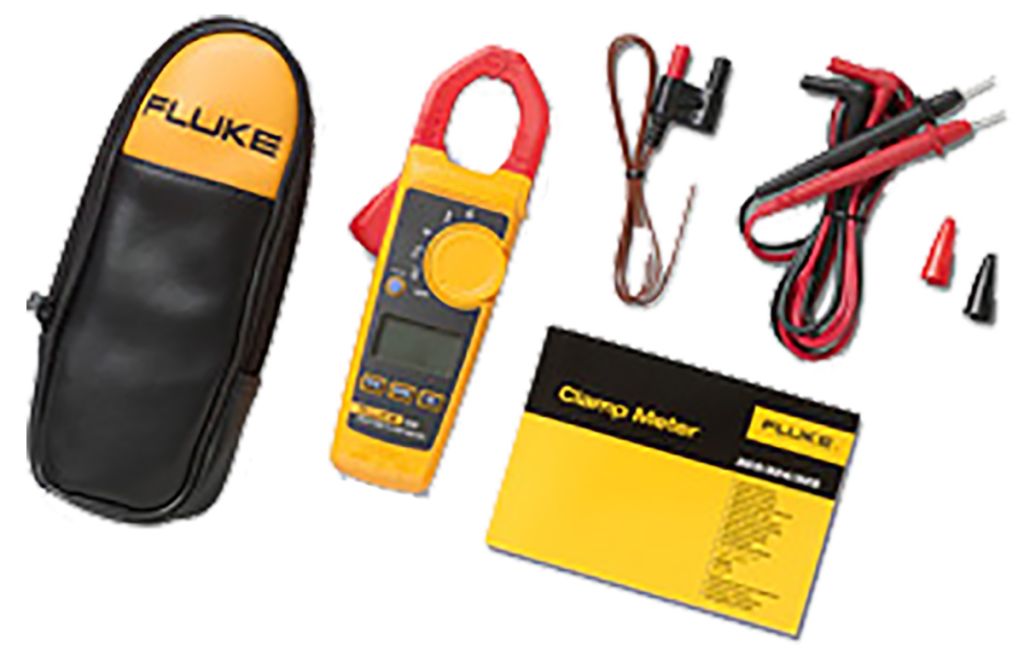

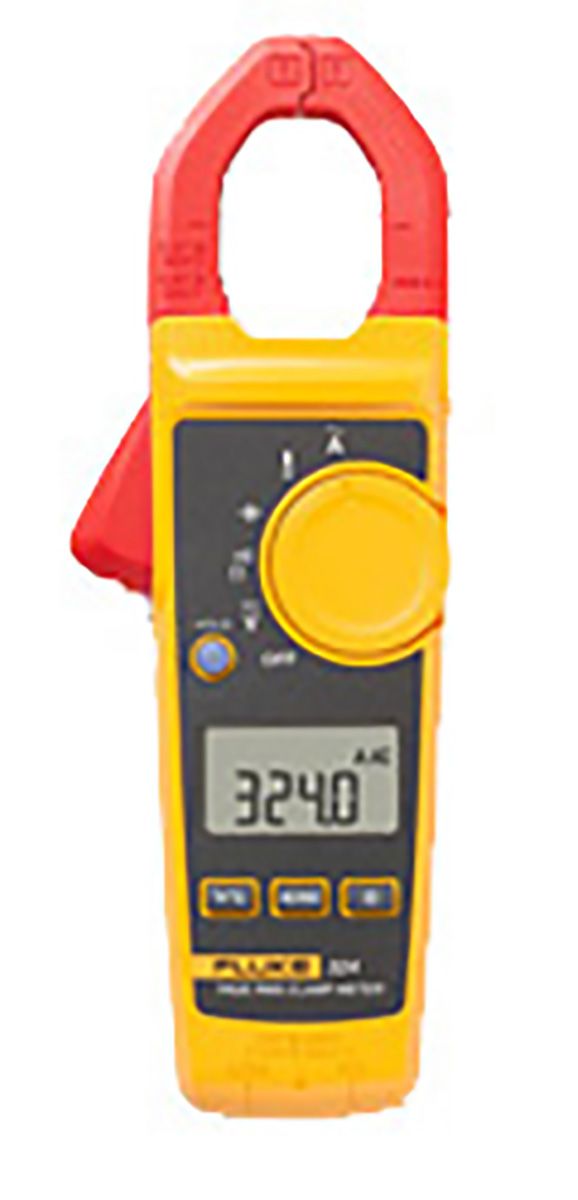

Fluke 324 AC/DC Clamp Meter, Max Current 400A ac CAT III 600V, CAT IV 300V
- RS Stock No.:
- 7653667
- Mfr. Prt No.:
- FLUKE 324
- Brand:
- Fluke
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 7653667 |
| Product description | Fluke 324 AC/DC Clamp Meter, Max Current 400A ac CAT III 600V, CAT IV 300V |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | FLUKE 324 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Specifications
| Attribute | Value |
| Brand | Fluke |
| Best AC Current Accuracy | ±(1.5% rdg + 5dgts) |
| Power Source | Battery |
| Width | 75 mm |
| DC Voltage Measurement Resolution | 100 mV |
| Absolute Maximum Resistance Measurement | 400 Ω |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Resistance, Temperature |
| Best AC Voltage Accuracy | ±(1.5% rdg + 5dgts) |
| Model Number | 324 |
| Minimum Operating Temperature | -10 °C |
| Height | 34 mm |
| Length | 207 mm |
| AC Current Measurement Resolution | 10 mA |
| AC Voltage Measurement Resolution | 100 mV |
| Resistance Measurement Resolution | 100 mΩ |
| Maximum Conductor Size | 30 mm |
| Jaw Capacity Busbars | 30 mm |
| Weight | 208 g |
| Safety Category Level | CAT III, CAT IV |
| Clamp Meter Type | AC/DC Clamp Meter |
| Absolute Maximum AC Current Measurement | 400 A ac |
| Dimensions | 207 x 75 x 34 mm |
| Best DC Voltage Accuracy | ±(1% rdg + 5dgts) |
| Temperature Measurement Resolution | 0.1 °C |
| Safety Category Voltage | 300 V, 600 V |
| Battery Type | AAA |
| Absolute Maximum Temperature Measurement | +400 °C |
| Absolute Maximum AC Voltage Measurement | 600 V ac |
| Safety Category | CAT III 600V, CAT IV 300V |
| Absolute Maximum DC Voltage Measurement | 600 V dc |
| Display Type | LCD |
| Maximum Operating Temperature | +50 °C |
