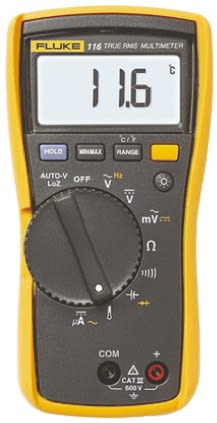

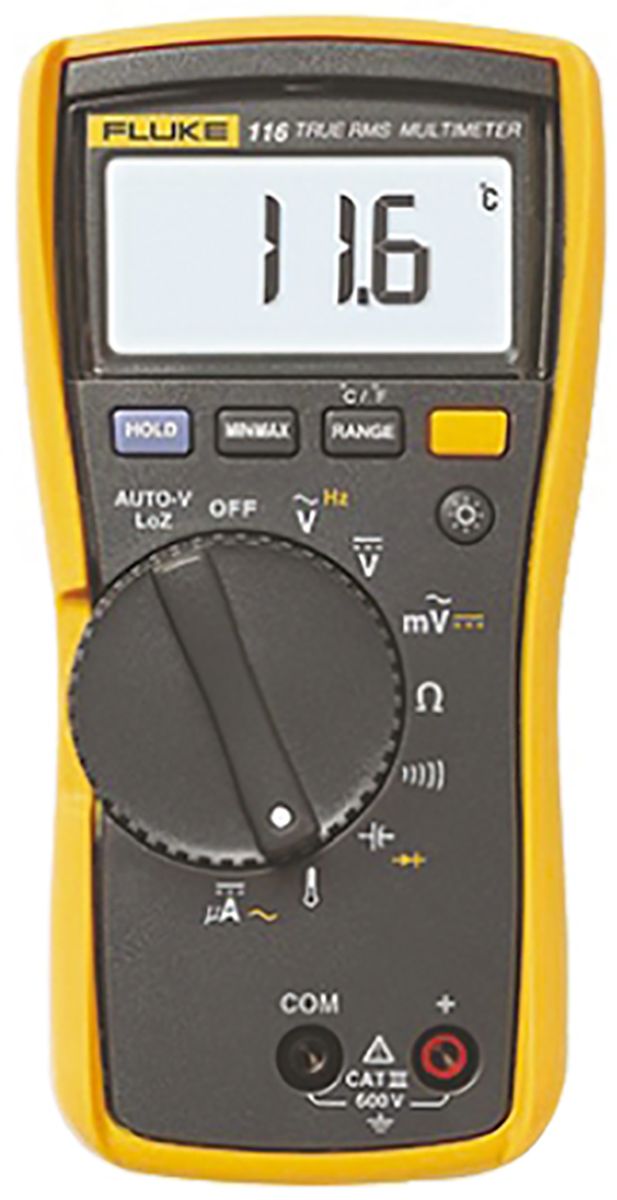

Fluke 116 Handheld Digital Multimeter, 600μA ac 600V ac 600μA dc 600V dc 40MΩ
- RS Stock No.:
- 6161476
- Mfr. Prt No.:
- FLUKE-116 EUR
- Brand:
- Fluke
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 6161476 |
| Product description | Fluke 116 Handheld Digital Multimeter, 600μA ac 600V ac 600μA dc 600V dc 40MΩ |
| Manufacturer / Brand | Fluke |
| Manufacturer part number | FLUKE-116 EUR |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 15, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Specifications
| Attribute | Value |
| Brand | Fluke |
| Absolute Maximum AC Current Measurement | 600 µA ac |
| Battery Life | 400 h |
| Absolute Maximum Resistance Measurement | 40 MΩ |
| Temperature Measurement Resolution | 0.1 °C |
| Weight | 550 g |
| Capacitance Measurement Resolution | 1 nF |
| Height | 167 mm |
| Best AC Voltage Accuracy | ±1% + 3 Digits |
| Absolute Maximum Capacitance Measurement | 9.999 F |
| Best AC Current Accuracy | ±1.5% + 3 Digits |
| Maximum Operating Temperature | +50 °C |
| Best DC Voltage Accuracy | ±0.5% + 2 Digits |
| Resistance Measurement Resolution | 100 mΩ |
| Minimum Operating Temperature | -10 °C |
| Absolute Maximum DC Voltage Measurement | 600 V dc |
| Best Temperature Measurement Accuracy | ±1% + 1 °C |
| Best DC Current Accuracy | ±1% + 2 Digits |
| Display Type | LCD |
| Length | 46 mm |
| Absolute Maximum DC Current Measurement | 600 µA dc |
| Absolute Maximum Temperature Measurement | +400 °C |
| DC Voltage Measurement Resolution | 0.1 mV dc |
| Multimeter Type | Handheld |
| Safety Category Voltage | 600 V |
| DC Current Measurement Resolution | 0.1 µA |
| Best Resistance Measurement Accuracy | ±1.5% + 2 Digits |
| Best Capacitance Measurement Accuracy | ±1.9% + 2 Digits |
| AC Current Measurement Resolution | 0.1 µA |
| Model Number p | 116 |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature |
| Dimensions | 46 x 84 x 167 mm |
| Safety Category Level | CAT III |
| AC Voltage Measurement Resolution | 0.1 mV ac |
| Maximum Frequency | 1 kHz |
| Battery Type | 9V |
| Width | 84 mm |
| Absolute Maximum AC Voltage Measurement | 600 V ac |
| True RMS | Yes |
