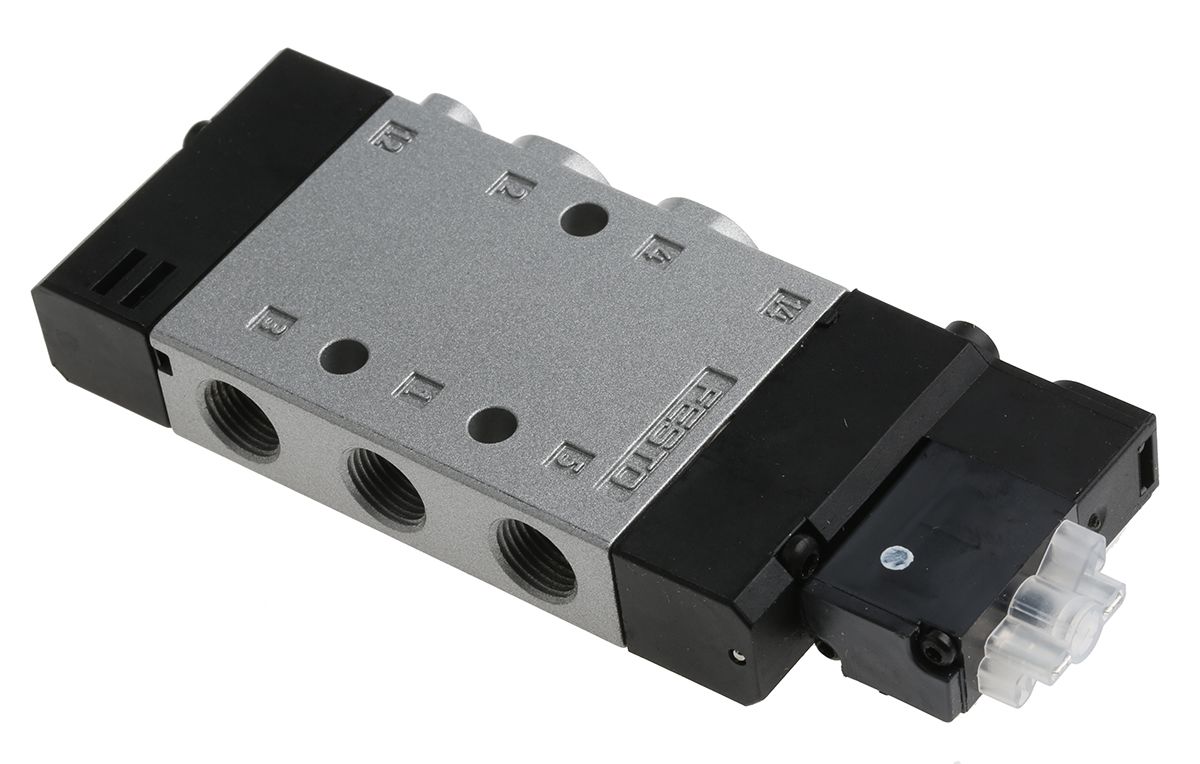

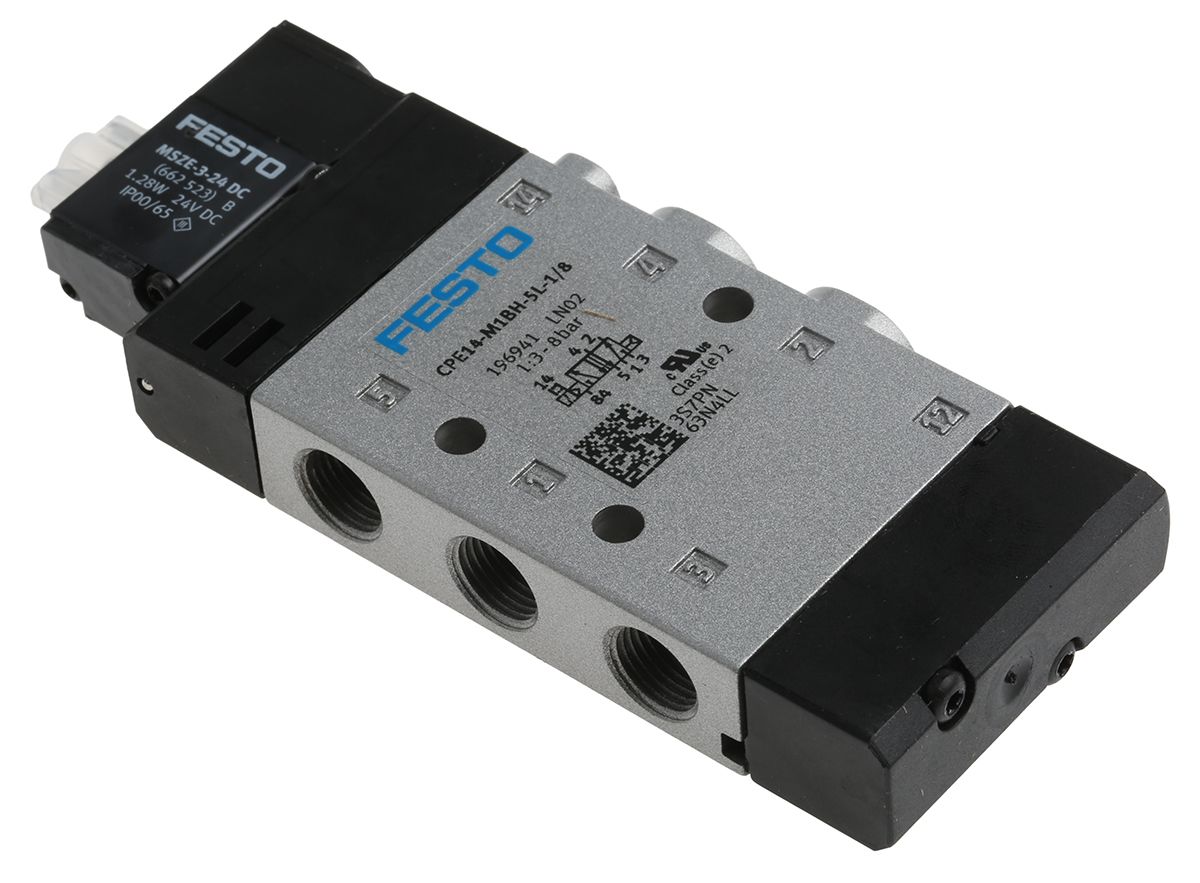

CPE Series Solenoid Valves

The FESTO CPE series of universal solenoid valves offer the maximum flow rate with minimum installation space, featuring high performance valves with a long service life. The CPE range is ideal for applications in optimised process sequences and working cycles.

Features and Benefits

• The solenoid valves have a service life of 100 million operating cycles and can withstand tough operating conditions


• The short tubing lengths allow for faster switching and short reaction times, with switching times as low as 12ms


• The FESTO CPE series offer a more economical operation, with low heat generation and low electrical power consumption of 1 or 1.5 watts.


• Pressure range of 0.9-10 bar


• A soft-seal cartridge principle results in lower leakage rates


• The product can operate as an individual valve and can also be mounted on a sturdy aluminium manifold


• Unused valve positions have the option to be covered by a blanking plate, facilitating expansion when desired


• The series offers a wide choice of electrical connections using numerous sockets, with or without cables


• Suitable for operation with unlubricated compressed air


• The valve allows for both internal and external pilot air supply, making it suitable for a vacuum


• High flow rates offer pneumatic efficiency
