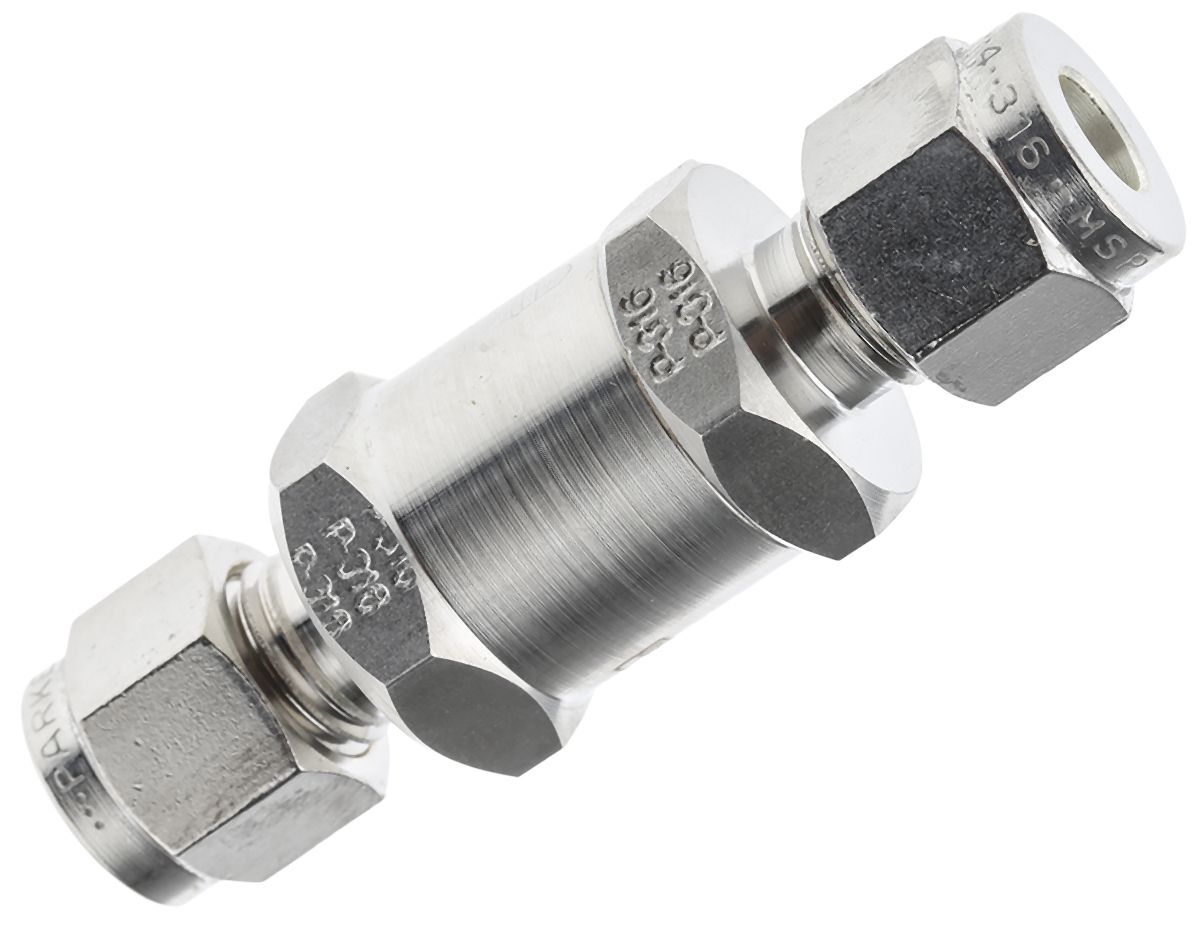

Parker, 1/4 in A-Lok Stainless Steel Inline Water Filter 4.05L/min
- RS Stock No.:
- 4325268
- Mfr. Prt No.:
- 4A-F4L-50-SS
- Brand:
- Parker
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 4325268 |
| Product description | Parker, 1/4 in A-Lok Stainless Steel Inline Water Filter 4.05L/min |
| Manufacturer / Brand | Parker |
| Manufacturer part number | 4A-F4L-50-SS |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 27, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Stainless Steel Valves and Filters
The Parker Hannifin range of stainless steel Instrumentation tubing, tube fittings, valves, regulators and manifolds are manufactured to meet the demand for precision-engineered instrumentation components of the highest quality. All products meet or exceed the relevant worldwide standards.,A range of high quality valves for analytical, chemical, oil and gas, power, pulp and paper applications.
'F' Series In-Line Filter
Protects instrumentation systems from contaminates entering the tubing system
Body material: ASTM A276 Type 316
Spring material: stainless steel 316
Withstands pressures up to 6000 psig (414 bar)
Operating temperature range: –26 to +204°C
Fluorocarbon seat material
Compact design
40 to 50 micron sintered stainless steel 316 filter
Replaceable elements
Specifications
| Attribute | Value |
| Brand | Parker |
| Connection | 1/4 in A-Lok |
| Strainer or Filter | Filter |
| Maximum Flow Rate | 4.05 L/min |
| Filtration Level | 50 µm |
| Maximum Working Pressure | 414 bar |
| Suitable Media | Gas, Liquid |
| Connection Size | 1/4 in |
| Minimum Working Pressure | 0 bar |
| Thread Standard or Connection Type | A-Lok |
| Body Material | Stainless Steel |
| Working Pressure Range | 0 → 414 bar |
