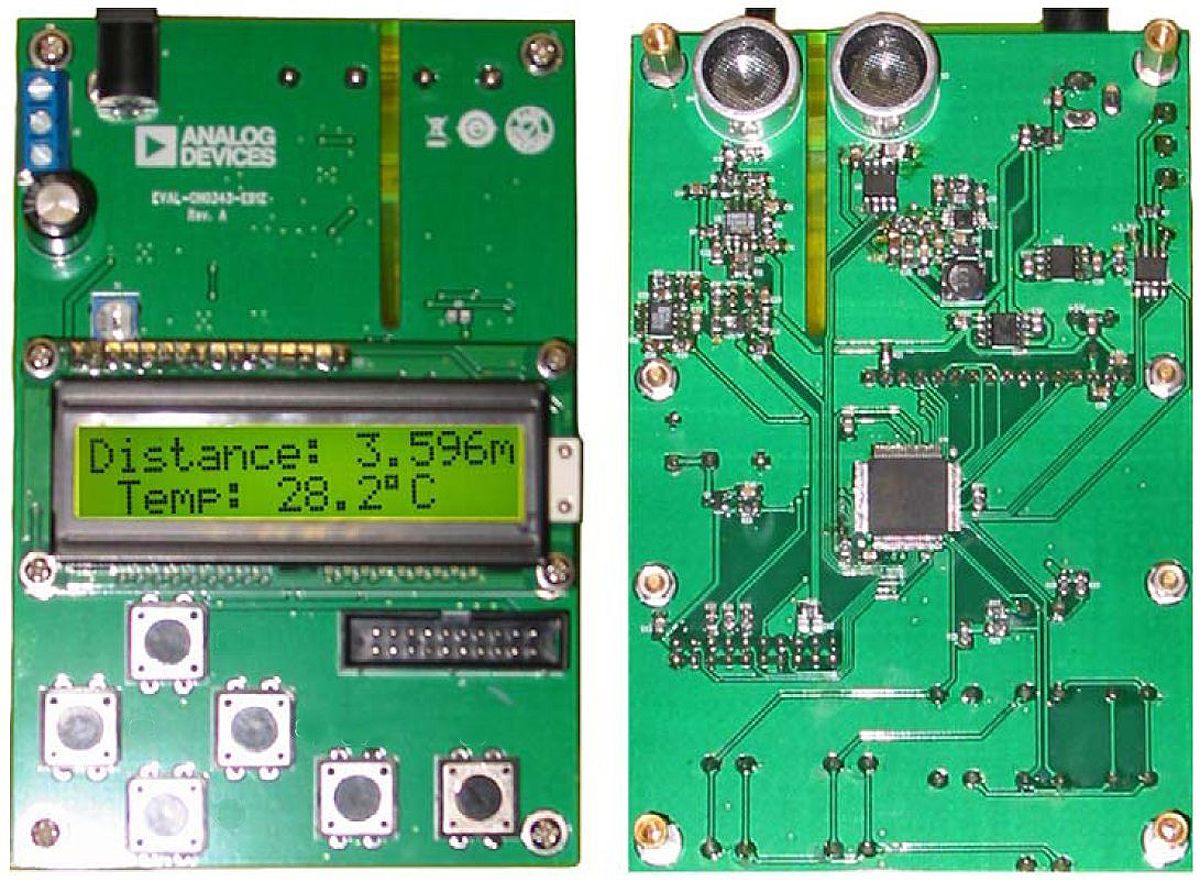

Analog Devices CN0343 Ultrasonic Distance Sensor Evaluation Board
- RS Stock No.:
- 8812977
- Mfr. Prt No.:
- EVAL-CN0343-EB1Z
- Brand:
- Analog Devices
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 8812977 |
| Product description | Analog Devices CN0343 Ultrasonic Distance Sensor Evaluation Board |
| Manufacturer / Brand | Analog Devices |
| Manufacturer part number | EVAL-CN0343-EB1Z |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8812977 |
| Product description | Analog Devices CN0343 Ultrasonic Distance Sensor Evaluation Board |
| Manufacturer / Brand | Analog Devices |
| Manufacturer part number | EVAL-CN0343-EB1Z |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 17, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Sensor Interfaces, Analog Devices
CN0343 Ultrasonic Distance Measurement Evaluation Board
The Analog Devices EVAL-CN0343-EB1Z evaluation board demonstrates a self-contained distance sensor that utilizes an ultrasonic transmitter and sensitive analogue receiver in conjunction with a precision analogue micro-controller to provide distance measurements. The measurement range is approximately 50 cm to 10 m with a resolution of about 2 cm. Temperature compensation is provided by the integrated temperature sensor and ADC contained in the microcontroller. Typical applications include fluid level sensing or distance sensing between solids.
Specifications
| Attribute | Value |
| Brand | Analog Devices |
| Kit Classification | Evaluation Board |
| Sensor Technology | Ultrasonic Distance Sensor |
| Kit Name | CN0343 |
