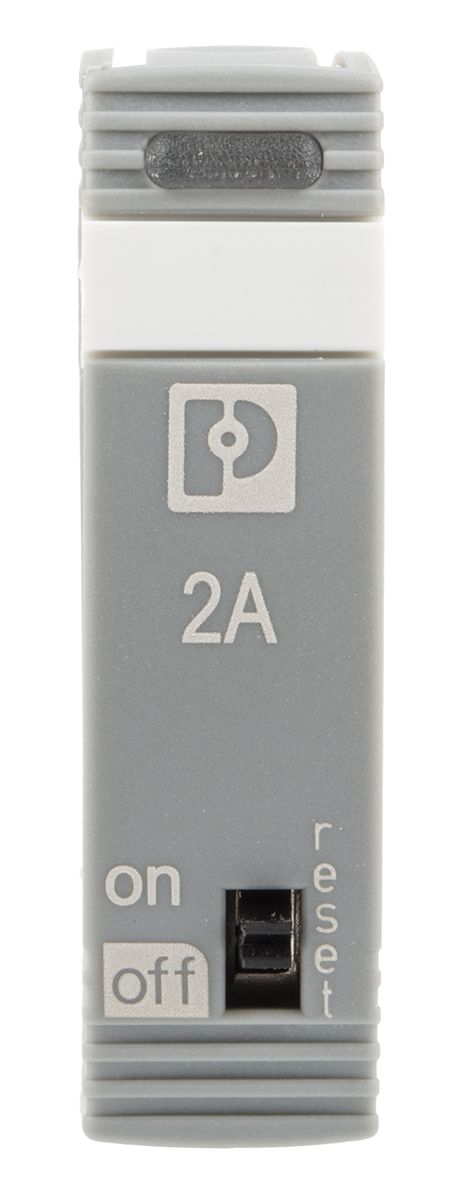

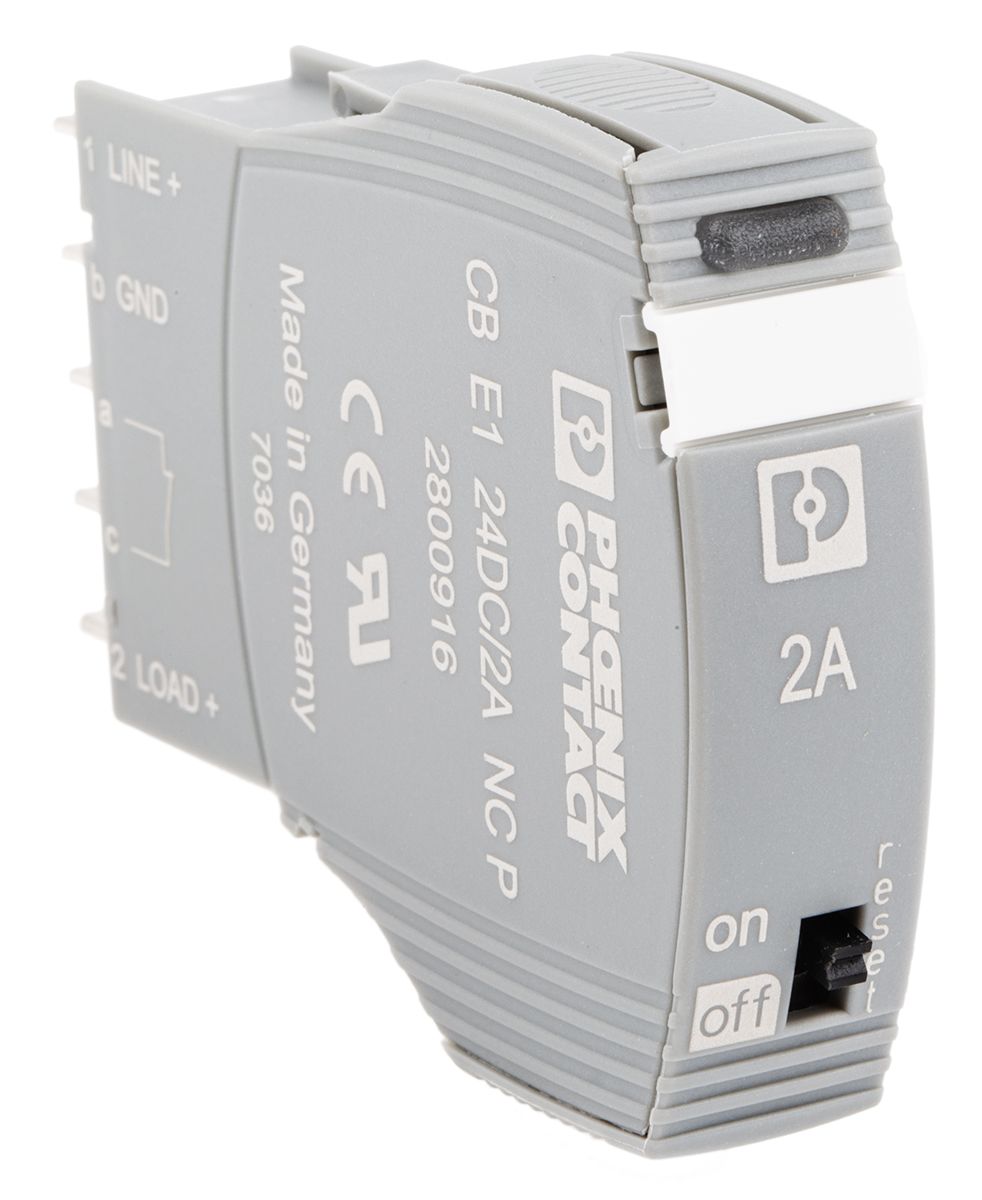

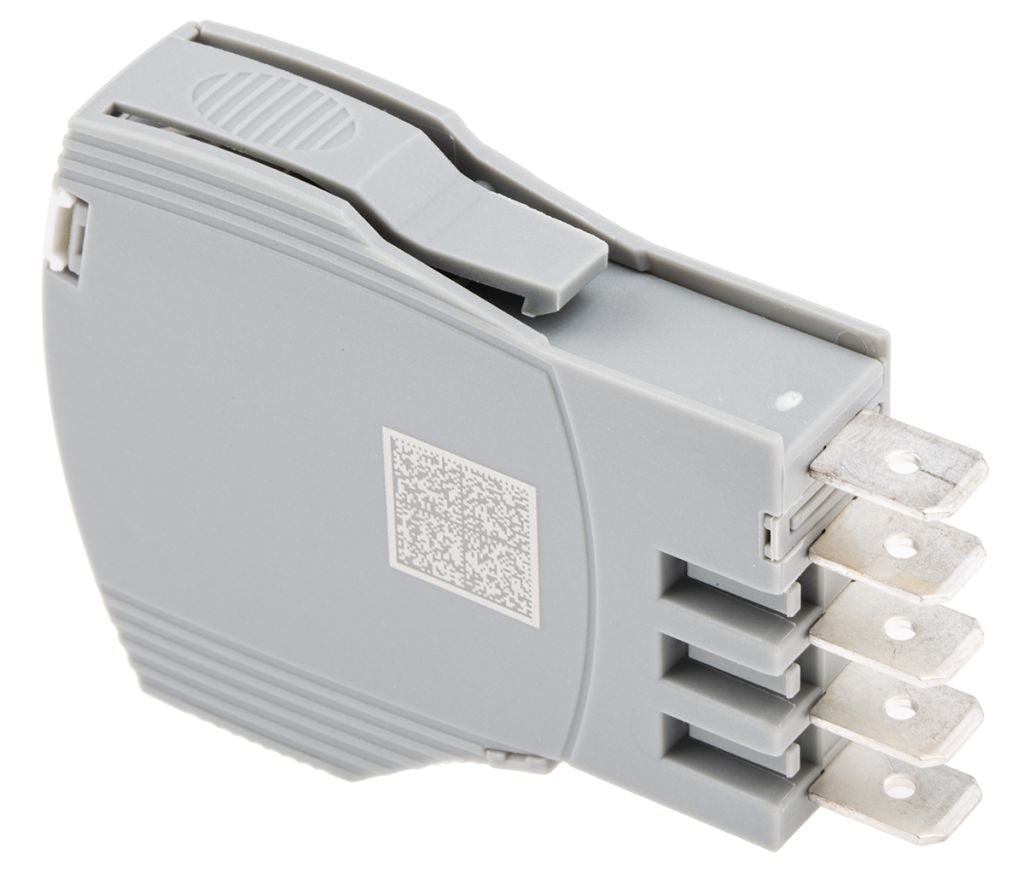

Phoenix Contact 2800916 Electronic Circuit breaker
- RS Stock No.:
- 7681101
- Mfr. Prt No.:
- 2800916
- Brand:
- Phoenix Contact
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 7681101 |
| Product description | Phoenix Contact 2800916 Electronic Circuit breaker |
| Manufacturer / Brand | Phoenix Contact |
| Manufacturer part number | 2800916 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 7681101 |
| Product description | Phoenix Contact 2800916 Electronic Circuit breaker |
| Manufacturer / Brand | Phoenix Contact |
| Manufacturer part number | 2800916 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 27, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details
Phoenix Contact Circuit Breakers
Residual current devices
Phoenix Contact Electronic Circuit Breakers
The single channel CB E1 range of electronic circuit breakers from Phoenix Contact has been designed to give intelligent protection to your power supply system. The system is protected thanks to the fixed current values.
Using a modular, single channel circuit breaker gives you the ability to build your application according to your needs and conditions.
Features and Benefits
• Protective plugs enables individual adjustment and modular expansion
• Compact
• Tool free connection means easy start up
• Remote control and remote messaging function keeps you in touch with the status of the system at all times from any location
• Active current limitations
• Protect all loads that are supplied by a switched-mode power supply unit
Typical Applications
The CB E1 electronic circuit breakers are an ideal solution for using in system engineering and machine building. The circuit breaker prevents the interruption of the output voltage at the switched-mode power supply unit in the event of an error. All the other circuits are unaffected and your system continues to run without interruption.
Specifications
| Attribute | Value |
| Brand | Phoenix Contact |
| Series | CB E1 24DC/2A P |
| Width | 12.3 mm |
| Current Rating | 2 A |
| Range | TRABTECH |
