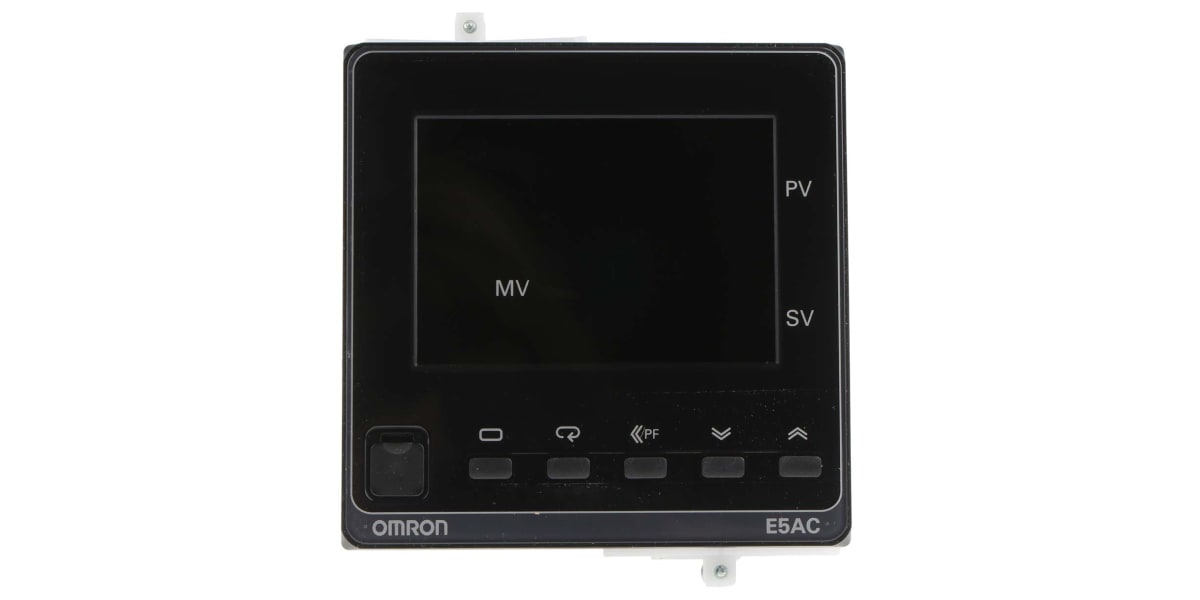

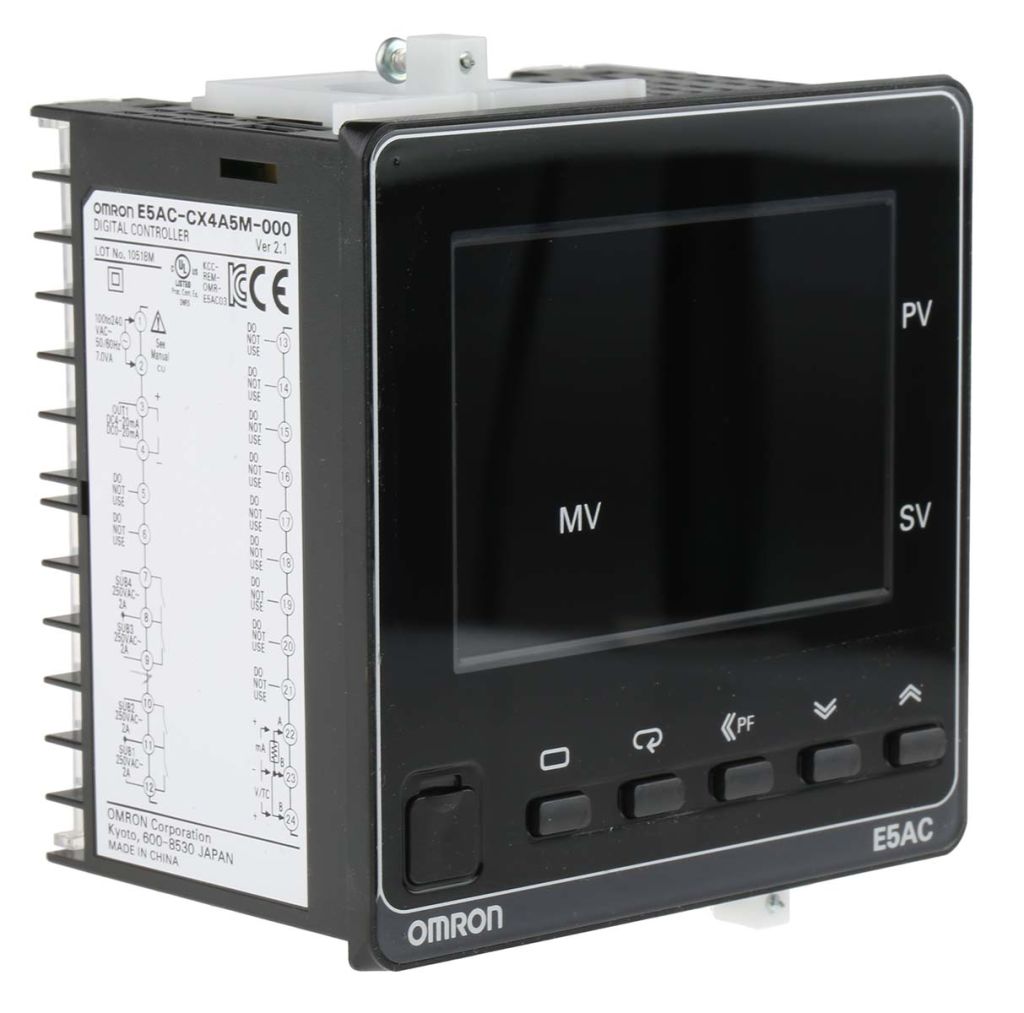

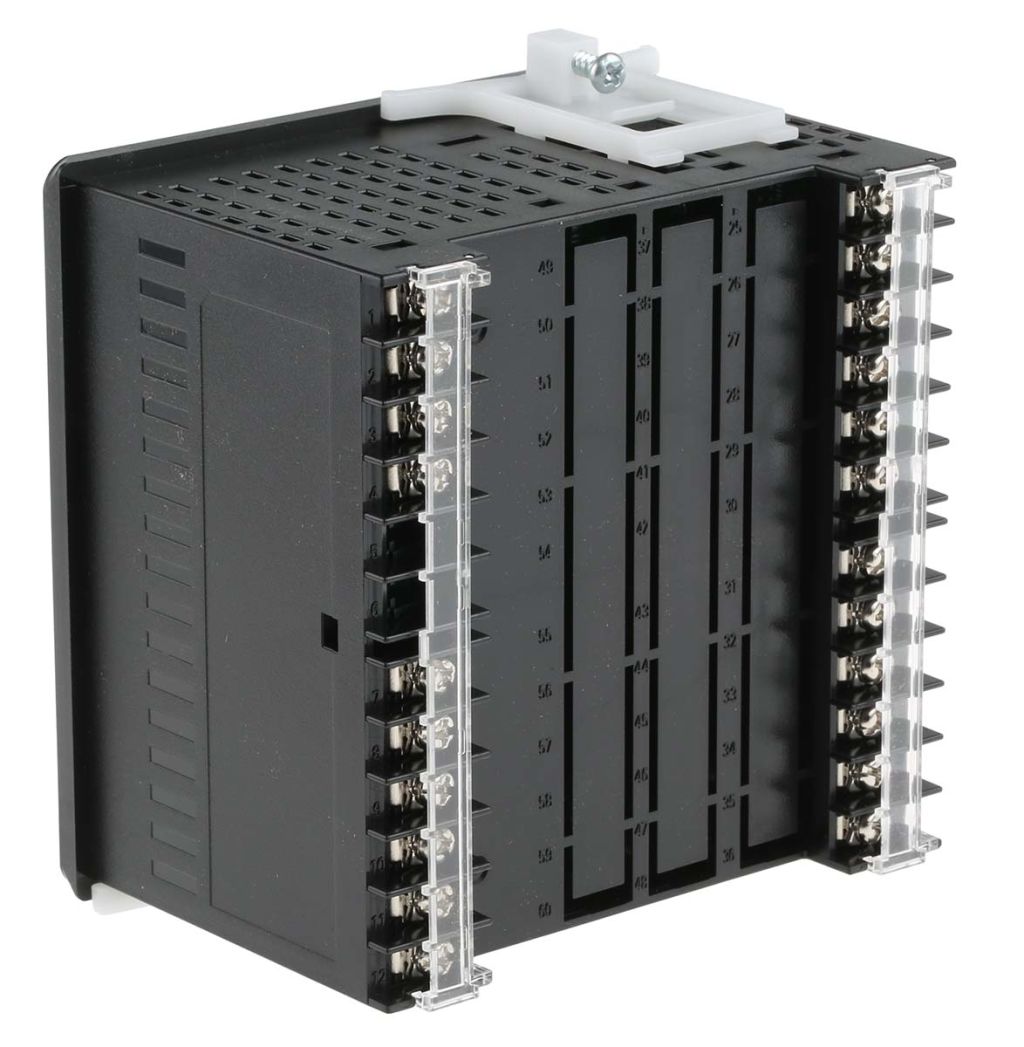

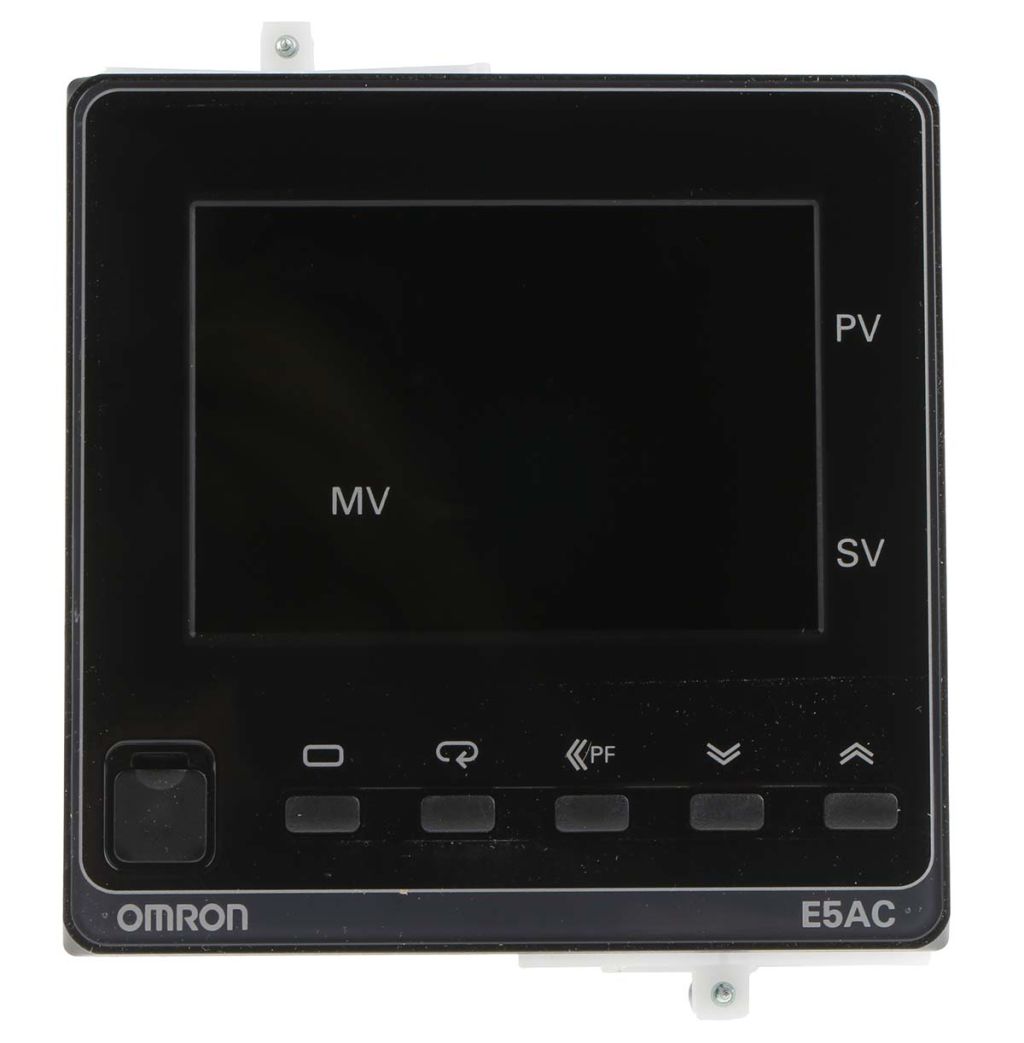

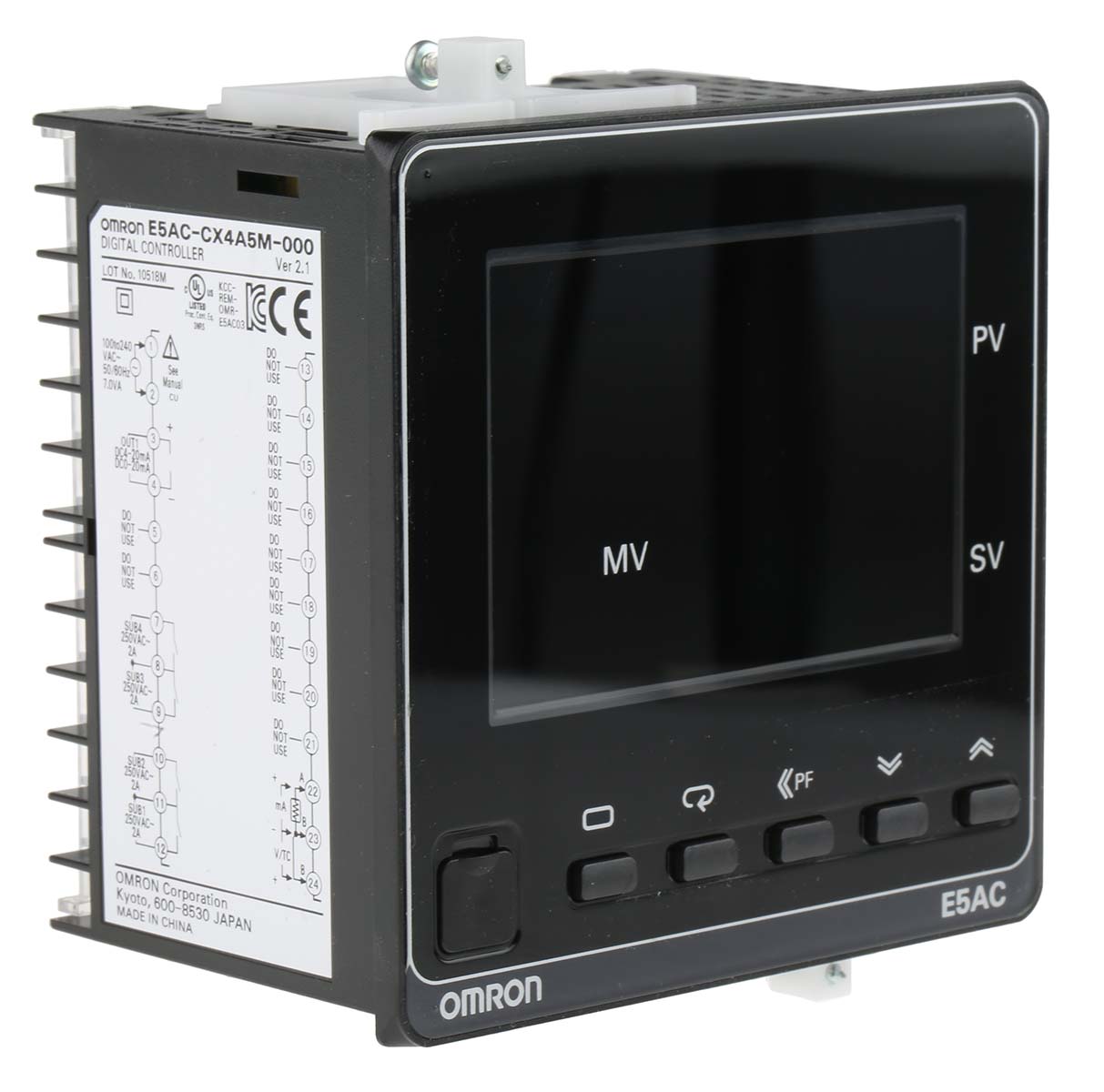

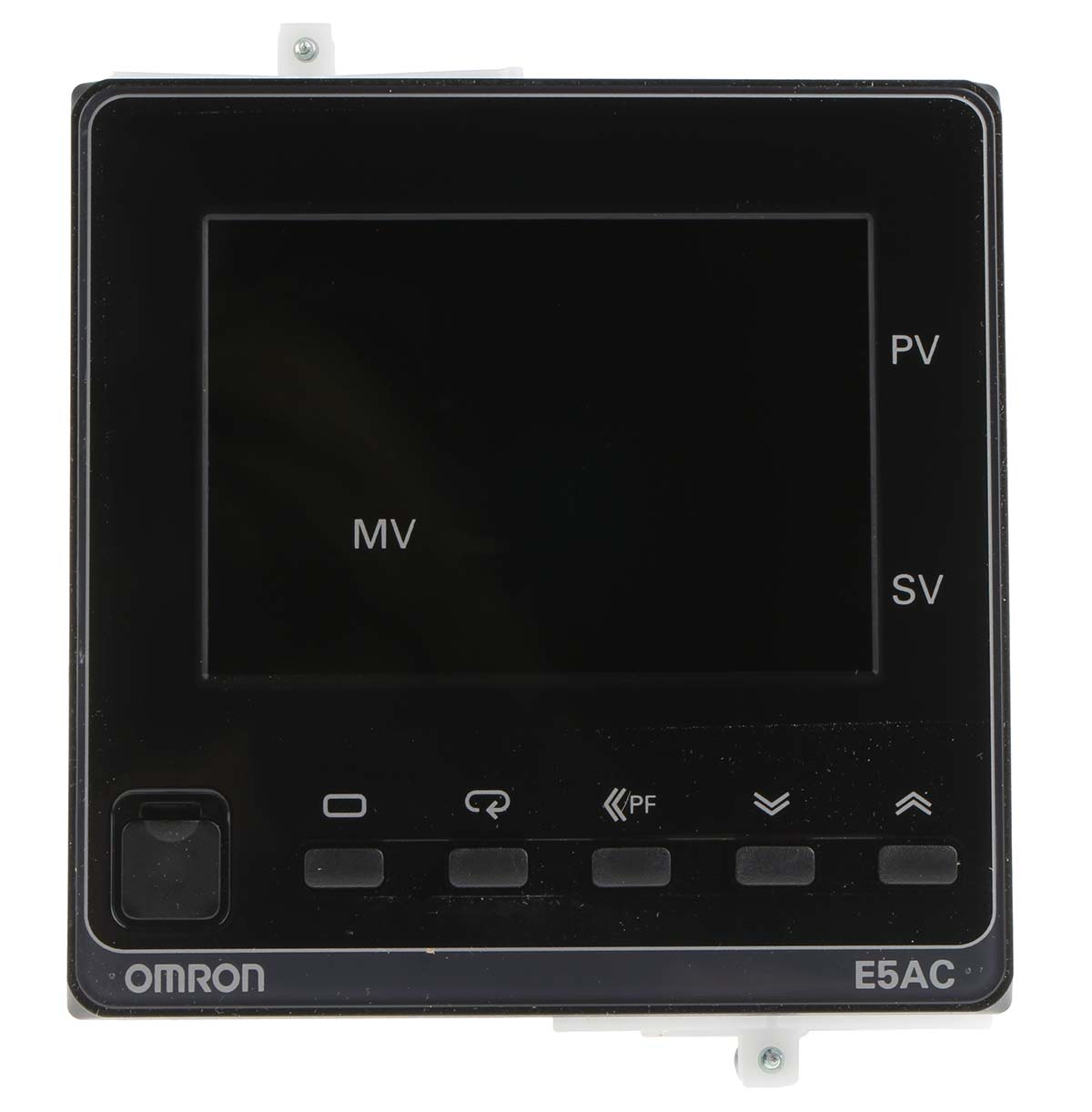

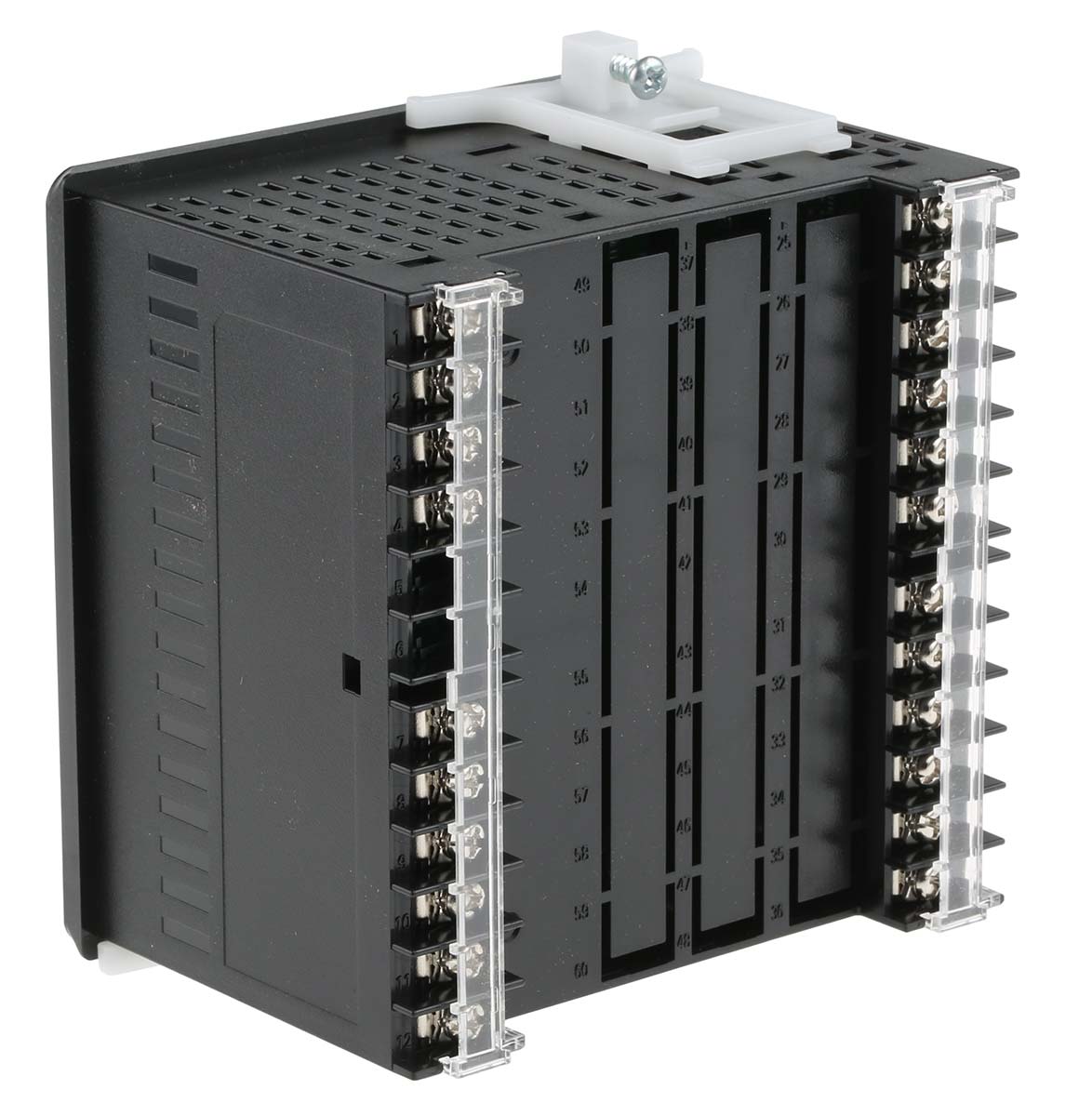

Omron E5AC PID Temperature Controller, 96 x 96mm, 1 Output Linear, 100 → 240 V ac Supply Voltage
- RS Stock No.:
- 7805420
- Mfr. Prt No.:
- E5AC-CX4A5M-000
- Brand:
- Omron
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 7805420 |
| Product description | Omron E5AC PID Temperature Controller, 96 x 96mm, 1 Output Linear, 100 → 240 V ac Supply Voltage |
| Manufacturer / Brand | Omron |
| Manufacturer part number | E5AC-CX4A5M-000 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges
E5AC Digital Temperature Controllers (96 x 96mm)
The Temperature Controllers Series E5AC set new global standards in the crucial areas of precision, user friendliness and control performance.
This series will save you time and effort in set-up and operation, while enabling faster and more accurate monitoring/control of your process.
The high-visibility display of the new series is also extremely easy to read and virtually eliminates any possibility for human error.
High-contrast, white LCD display visible from large distances and from any angle
Easy to set up and operate intuitively via CX-Thermo without power supply
High-speed sampling at 50 ms
Functions for diagnosis for secure operations
Useful timer and logic operation functions eliminating the need of a PLC
Tool ports are provided both on the top panel and the front panel
Short body with depth of only 60 mm
Specifications
| Attribute | Value |
| Brand | Omron |
| Number of Outputs | 1 |
| Supply Voltage | 100 → 240 V ac |
| Panel Depth | 60 mm |
| Communication Module Available | Yes |
| IP Rating | IP00, IP20, IP66 |
| Series | E5AC |
| Range | Omron E5AC |
| Size | 96 x 96 mm |
| Temperature Range | -200 → +2300 °C |
| Output Type | Linear |
| Display Colour | White |
| Minimum Operating Temperature | -10 °C |
| Display Type | LCD |
| Maximum Operating Temperature | +55 °C |
