TE Connectivity 2118309-1 PCB WiFi Antenna with MCIS, MHF, U.FL Connector, WiFi (Dual Band)
- RS Stock No.:
- 1249420
- Mfr. Prt No.:
- 2118309-1
- Brand:
- TE Connectivity
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 1249420 |
| Product description | TE Connectivity 2118309-1 PCB WiFi Antenna with MCIS, MHF, U.FL Connector, WiFi (Dual Band) |
| Manufacturer / Brand | TE Connectivity |
| Manufacturer part number | 2118309-1 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 1249420 |
| Product description | TE Connectivity 2118309-1 PCB WiFi Antenna with MCIS, MHF, U.FL Connector, WiFi (Dual Band) |
| Manufacturer / Brand | TE Connectivity |
| Manufacturer part number | 2118309-1 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 6, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
PCB Antennas

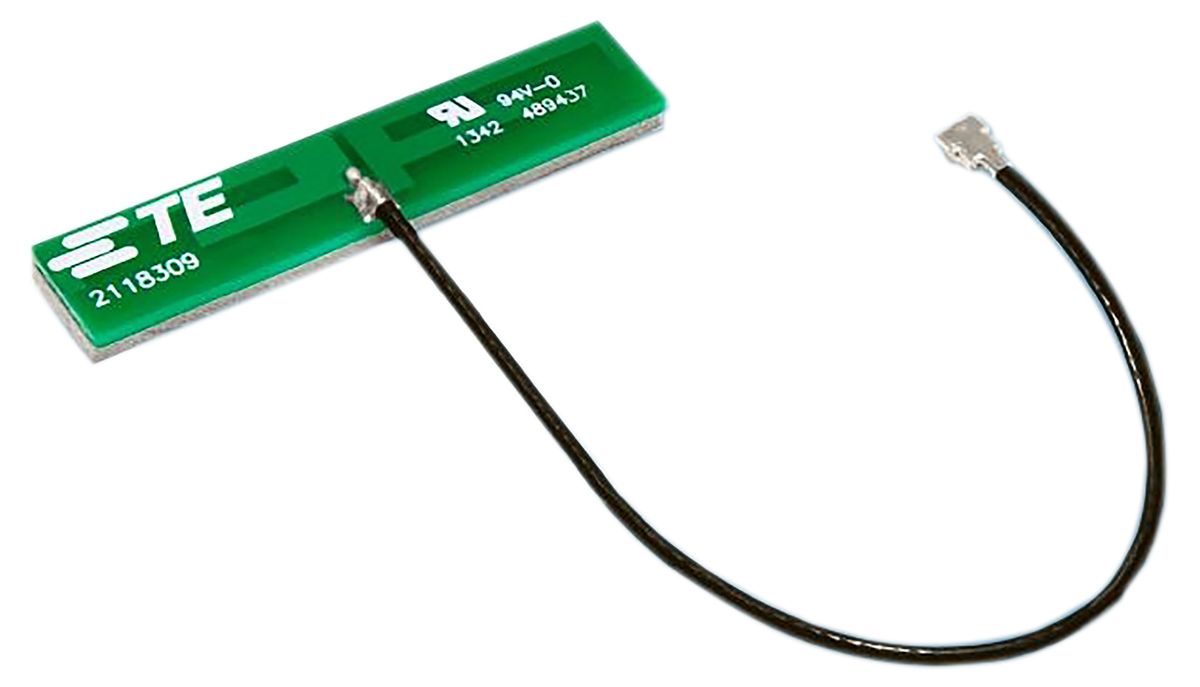

TE Connectivity Dual Band PCB Antenna
A dual-band antenna is a device that can both send and receive in different frequency bands. These antennas are designed for a range of uses, it’s key selling point is how it can operate on different frequencies individually or simultaneously. (Depending on the capabilities of the individual embedded antenna.)
TE Connectivity’s Dual Band PCB Antenna is a small and lightweight dual-band PCB antenna for Bluetooth, ZigBee, and Wi-Fi applications that can operate at 2.4 and 5Ghz. The design and purpose of this device allows for it to operate according to different IEEE standards and expands its range of communication abilities beyond just WiFi.
What comes with this device?
The PCB antenna includes a 120mm long connecting cable with a 50Ohm U.FL connector.
Features and Benefits
• Small and lightweight PCB antenna assembly.
• RoHS compliant
• Double-sided adhesive tape mounting
• Linear polarization
• VSWR: Less than 2:1
Specifications
| Attribute | Value |
| Brand | TE Connectivity |
| Gain | 3.7 dBi |
| Supported Frequency Bands | 2400 → 2483.5, 4900 → 5875 MHz |
| Frequency Range | 2.4 → 2.48, 4.900 → 5.875 GHz |
| Antenna Directivity | Omnidirectional |
| Mounting Type | Adhesive Mount |
| Antenna Mounting Type | Adhesive |
| RF Protocols | WiFi (Dual Band) |
| Connector Type | MCIS, MHF, U.FL |
| Internal/External | External |
| Antenna Physical Form | PCB |
| Weight | 1.4 g |
