Phoenix Contact, CRIMPFOX Hand Crimping Tool for Ferrule, 0.14mm² to 10mm²
- RS Stock No.:
- 8034420
- Mfr. Prt No.:
- 1212045
- Brand:
- Phoenix Contact
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 8034420 |
| Product description | Phoenix Contact, CRIMPFOX Hand Crimping Tool for Ferrule, 0.14mm² to 10mm² |
| Manufacturer / Brand | Phoenix Contact |
| Manufacturer part number | 1212045 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8034420 |
| Product description | Phoenix Contact, CRIMPFOX Hand Crimping Tool for Ferrule, 0.14mm² to 10mm² |
| Manufacturer / Brand | Phoenix Contact |
| Manufacturer part number | 1212045 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 26, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: DE
Product Details
Phoenix Contact Ferrule Crimping Tools

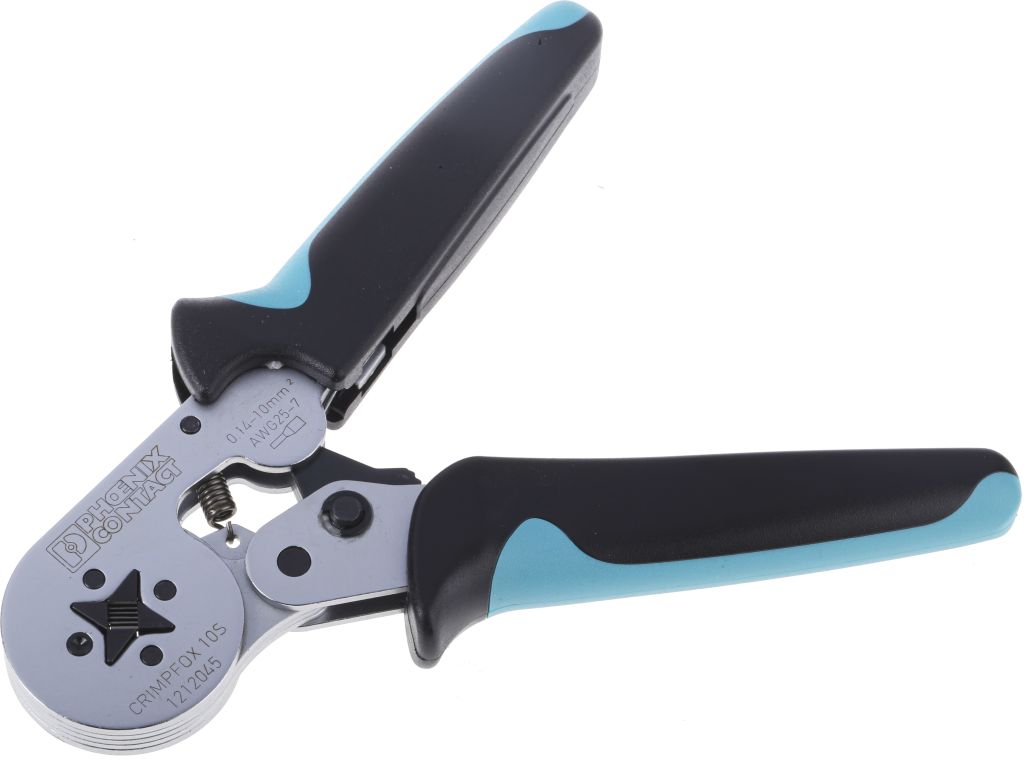

Phoenix Contact CRIMPFOX 10S Ferrule Hand Crimping Pliers
The Phoenix Contact CRIMPFOX 10S crimping pliers provide straight-forward crimping for crimping ferrules according to DIN 46228. It is compatible with both insulated and non-insulated ferrules. This compact crimping tool enables effortless crimping from a high quality tool.
This CRIMPFOX 10S ferrule crimp tool can crimp wires from 25 to 9 AWG (0.14 to 10mm). It creates a square-shaped crimp. This tool also features a releasable ratchet locking mechanism to ensure a secure crimp. The handles and the die of this CRIMPFOX 10S ferrule hand crimp tool is arranged in such a way that the ferrules can be crimped however the tool is held.Choosing a Phoenix Contact crimping tool ensures quality all round.
Note
A replacement spring (stock number 803-4433) is available to buy separately.
Features and Benefits
- Suitable for ferrules with or without insulating collars
- Square crimping shape
- Ratchet locking mechanism
- Saves time and effort
- High quality crimping pliers
- Replacement spring: 803-4433
Specifications
| Attribute | Value |
| Brand | Phoenix Contact |
| Series | CRIMPFOX |
| Overall Length | 175 mm |
| Crimp Connector Type | Ferrule |
| Crimp Tool Type | Crimping Tool |
| Operation | Hand |
| Connector Type | Ferrule |
| Model Number | CRIMPFOX 10S |
