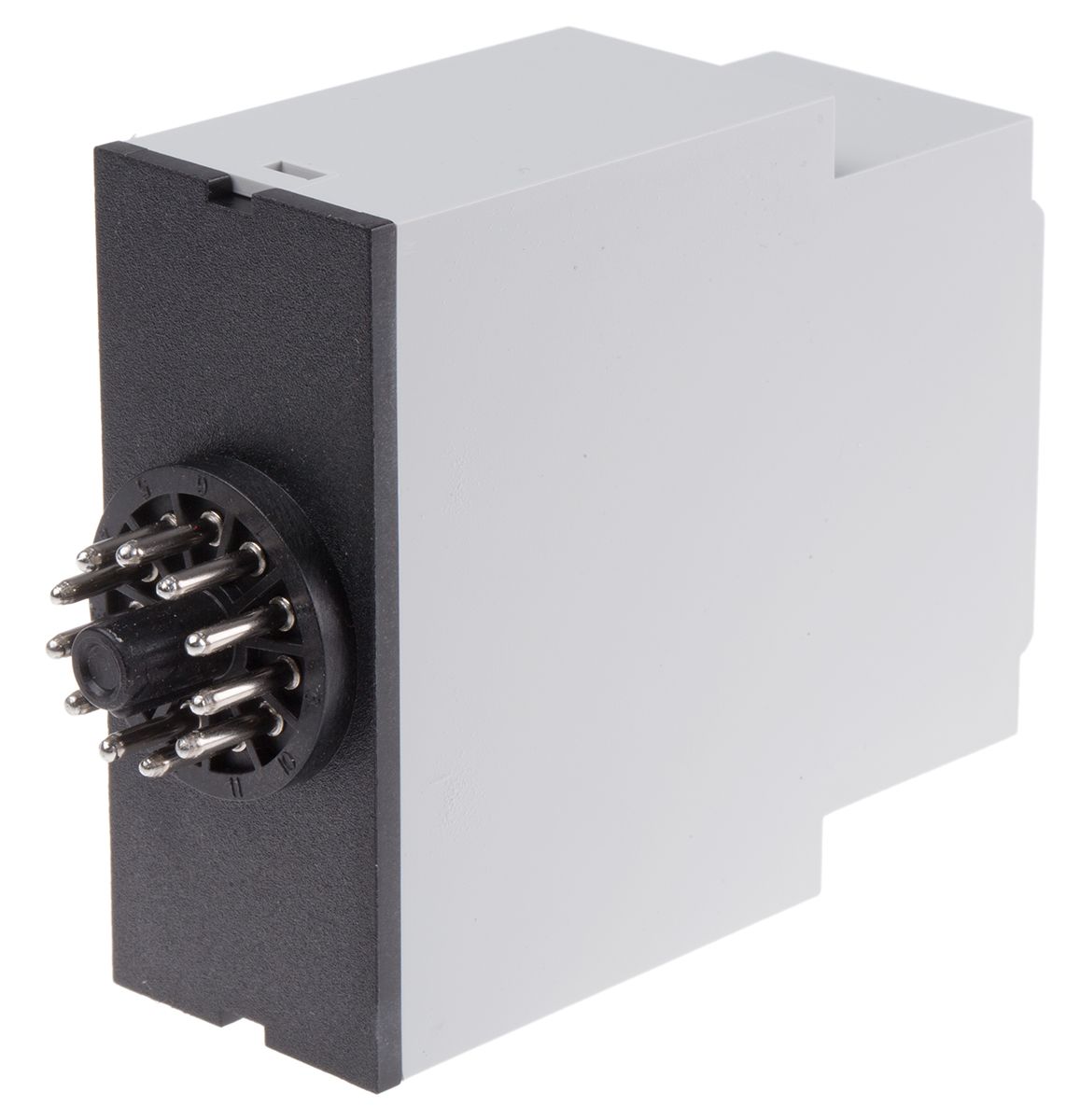

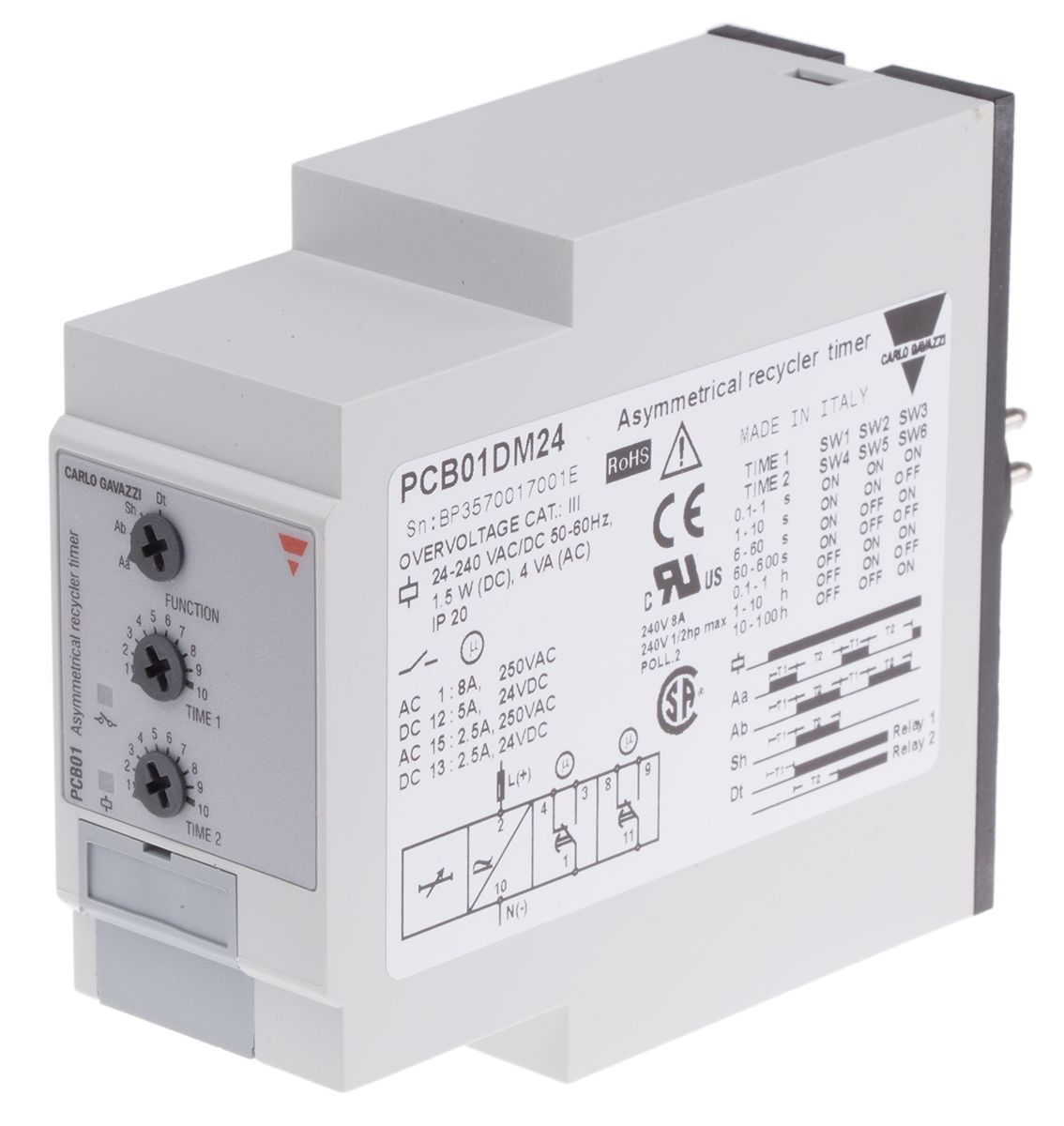

Carlo Gavazzi SPDT Multi Function Timer Relay, 24 → 240V ac/dc 0.1 s → 100h, Plug In Mount
- RS Stock No.:
- 8593402
- Mfr. Prt No.:
- PCB01DM24
- Brand:
- Carlo Gavazzi
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 8593402 |
| Product description | Carlo Gavazzi SPDT Multi Function Timer Relay, 24 → 240V ac/dc 0.1 s → 100h, Plug In Mount |
| Manufacturer / Brand | Carlo Gavazzi |
| Manufacturer part number | PCB01DM24 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 25, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Carlo Gavazzi Asymmetrical Timer
Specifications
| Attribute | Value |
| Supply Voltage | 24 → 240 V ac/dc |
| Brand | Carlo Gavazzi |
| Minimum Operating Temperature | -20 °C |
| Mode of Operation | Asymmetrical Recycler with Pulse Start |
| Power Supply | External |
| Time Range | 0.1 s → 100 h |
| Contact Material | Silver Tin Oxide |
| Depth | 80 mm |
| Time Increment | Hours, Minutes, Seconds |
| Length | 36 mm |
| Width | 94 mm |
| Number of Contacts | 2 |
| Terminal Type | Plug In |
| Mounting Type | Plug In |
| Time Delay | ?100 (On) ms, ?200 (Off) ms |
| Number of Timer Functions | Multi Function |
| Switch Configuration | SPDT |
| Current Maximum | 8 A |
| Maximum Operating Temperature | +60 °C |
| Contact Configuration | SPDT |
