Product Details

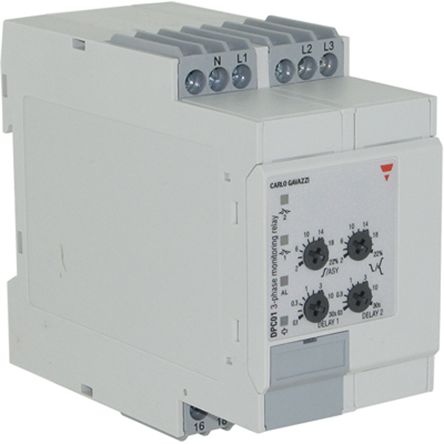

DPC01/PPC01 Multifunction Monitoring Relay
Carlo Gavazzi DPC01 & PPC01 series of monitoring relays provide the user with a comprehensive variety of monitoring options such as phase sequence, loss & asymmetry along with under & over voltage with separate set point adjustment.
Offers the facility to detect each individual phase is present and have the right sequence
Can ensure all phases are with set parameters
Adjustments can be made separately to setpoints for added customisation
Can detect if phase asymmetry is below user-defined set points
LED indication for relay, alarm & power supply status
Adjustable delays functions between 0.1-30 seconds
Specifications
| Attribute | Value |
| Brand | Carlo Gavazzi |
| Height | 83.5 mm |
| Length | 45 mm |
| Minimum Voltage Sensed | 510 V ac |
| Minimum Frequency Sensed | 50 Hz |
| Voltage Sensing Range | 510 → 793 V ac |
| Monitoring Application | Phase, Voltage |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20 °C |
| Phase Sensitivity | Asymmetry, Phase Loss, Phase Sequence, Tolerance |
| Width | 99.5 mm |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Dimensions | 45 x 99.5 x 83.5 mm |
| Electrical Phase | 3, 3+N |
| Frequency Sensing Range | 50 → 400 Hz |
| Maximum Voltage Sensed | 793 V ac |
| Time Delay | 1 s, 6 s |
