RS PRO 1.5m Long PET 6 bar Flexible Hose
- RS Stock No.:
- 7118509
- Brand:
- RS PRO
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 7118509 |
| Product description | RS PRO 1.5m Long PET 6 bar Flexible Hose |
| Manufacturer / Brand | RS PRO |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 7118509 |
| Product description | RS PRO 1.5m Long PET 6 bar Flexible Hose |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 15, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details

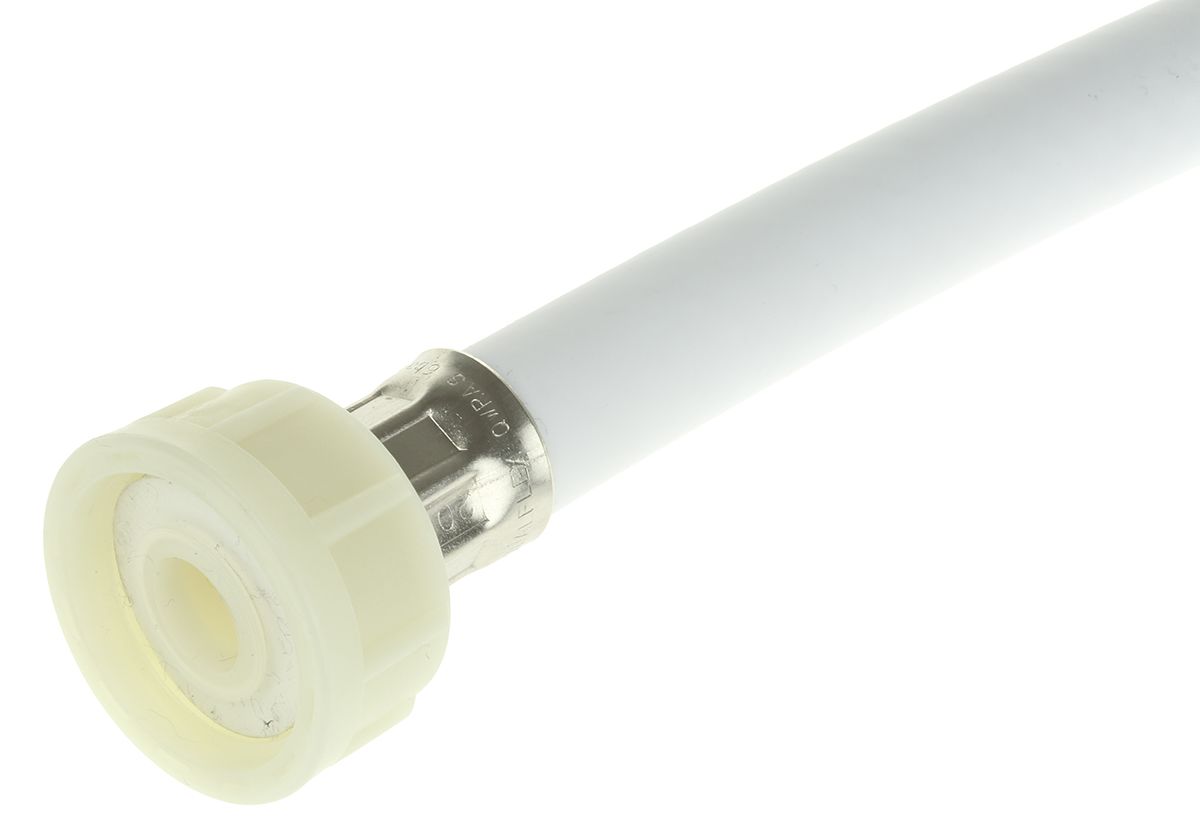

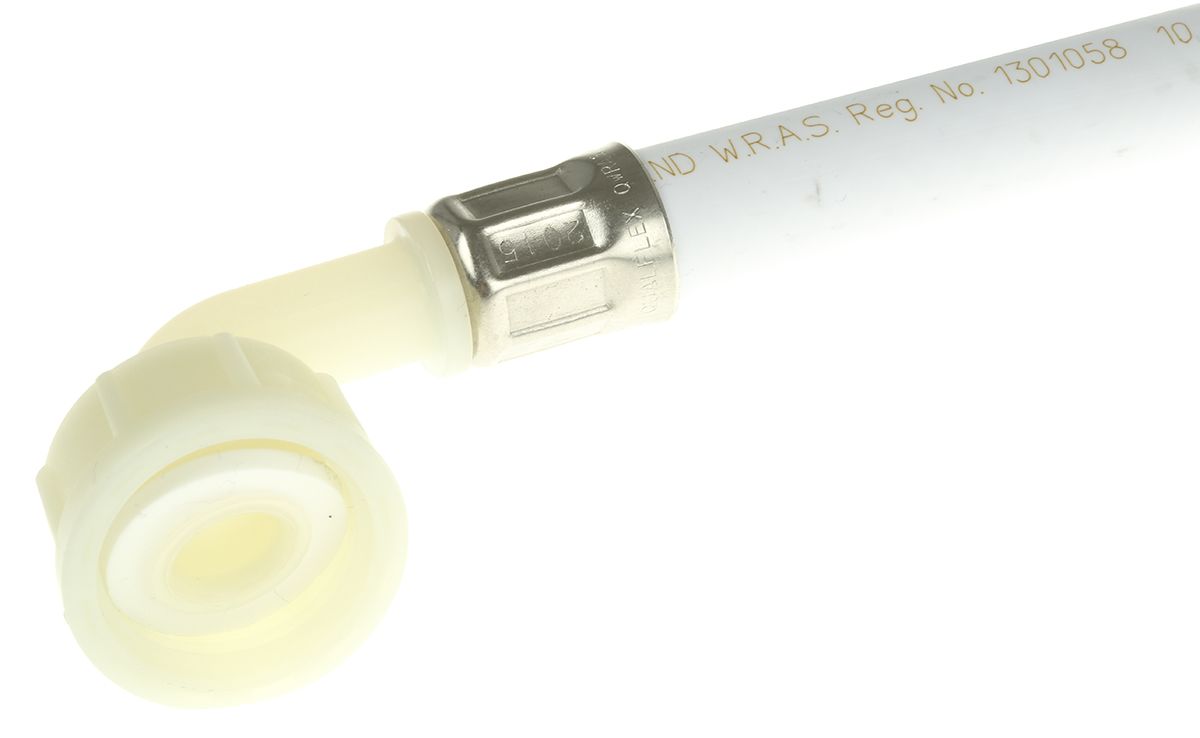

Hydravend Flexible Water Hose
This flexible hose is designed for the safe and taint free conveyance of potable water supplies to,both free standing appliances and domestic plumbing. Sutable for use in the following situations:,Free standing and desktop drinks vending machines,Coffee brewers,Water filtration equipment,Ice making equipment,Domestic and commercial tap connectors
APPROVALS : WRAS; BS 6920
WRAS approved
All materials have been tested and approved to BS 6920 to ensure potable water supplies intended for human consumption remain safe and free from contamination
Co-extruded polyester liner with mirror smooth surface finish to reduce the risk associated with build-up of micro biological bacteria present in all potable water supplies
High gloss white surface finish facilitating easy cleaning and meets aesthetic demands in both food preparation and catering appliances and equipment
Flexibility and excellent kink resistance
Abrasion resistant
6 bar max working pressure at 65 °C
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Length | 1.5 m |
| Connection Size 2 | 3/4 in |
| Connection 1 | 3/4 in BSP |
| Maximum Working Pressure | 6 bar |
| Connection 2 | 3/4 in BSP |
| Liner Material | PET |
| Suitable Applications | Potable Water |
| Connection Size 1 | 3/4 in |
