Texas Instruments, PRU Cape Real Time Unit for BeagleBone Black – PRUCAPE
- RS Stock No.:
- 8902768
- Mfr. Prt No.:
- PRUCAPE
- Brand:
- Texas Instruments
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 8902768 |
| Product description | Texas Instruments, PRU Cape Real Time Unit for BeagleBone Black - PRUCAPE |
| Manufacturer / Brand | Texas Instruments |
| Manufacturer part number | PRUCAPE |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8902768 |
| Product description | Texas Instruments, PRU Cape Real Time Unit for BeagleBone Black - PRUCAPE |
| Manufacturer / Brand | Texas Instruments |
| Manufacturer part number | PRUCAPE |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 17, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Embedded I/O

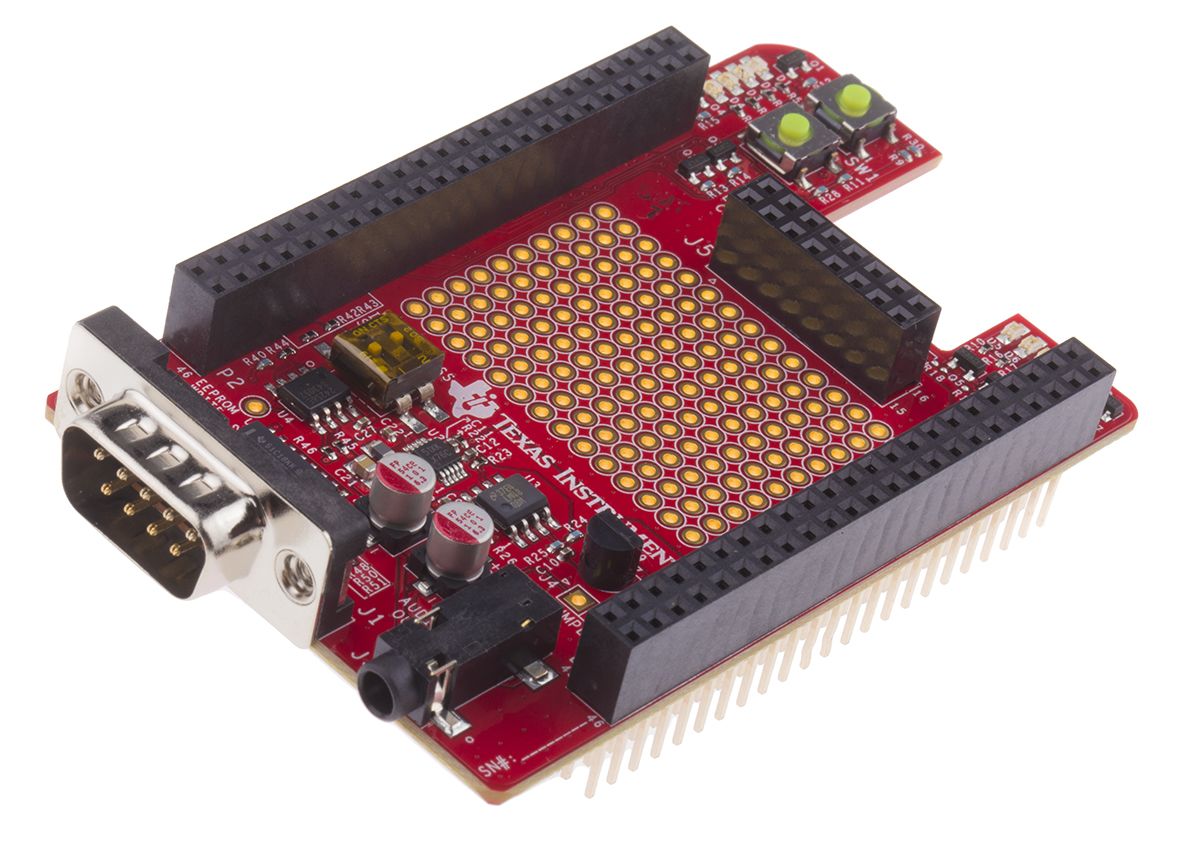

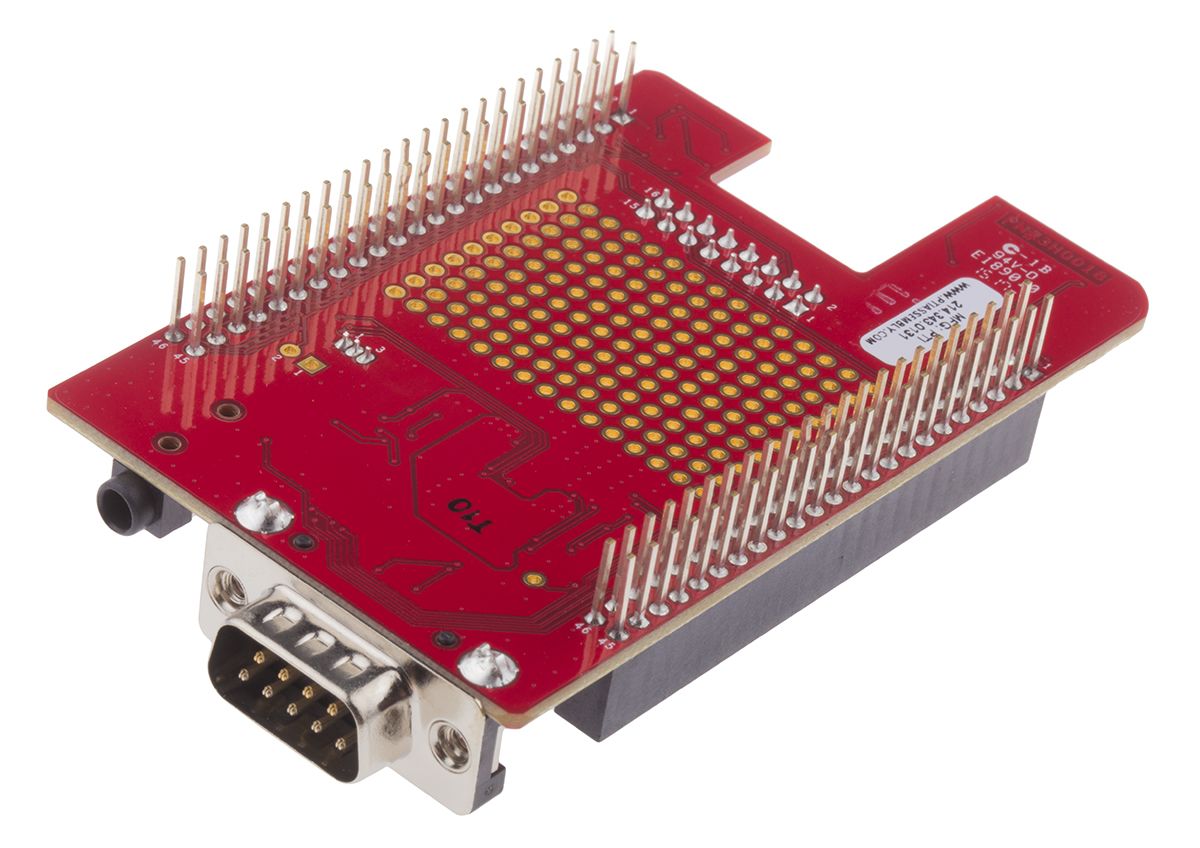

BeagleBone PRU Cape
The BeagelBone PRU Cape is an add-on board that allows users to evaluate the Programmable Real-Time Units (PRU) of the BeagleBone's processor. The PRU is a low-latency microcontroller sub-system integrated in the Texas Instruments' Sitara AM335x and AM437x family of devices. The PRU is optimized for deterministic, real-time processing with direct access to Inputs/Outputs. The Cape includes LEDs and push buttons for GPIO, audio and a temperature sensor. PRU Cape demonstration software is available in the PRU Software Support Package hosted on git.ti.com.
• DAC082S085 dual 8-bit DAC for stereo audio
• LM4808 stereo audio headphone amplifier
• MAX3232E UART to RS-232 interface buffer
• CAT24C256W 32KB EEPROM on I²C bus
• MAX31820MCR Ambient Temperature sensor on 1-Wire bus
• 4 x User LEDs
• User RGB LED
• 2 x User pushbuttons
• 3.5mm jack socket for stereo headphones
• DE9 socket for RS-232 serial port
• 2 x 46-pin BeagleBone expansion header sockets
• 16-pin socket header for optional Newhaven NHD-0208AZ-RN-YBW-33V LCD display
• 2-pin header for eCAP demonstration
• Prototyping area
Specifications
| Attribute | Value |
| Brand | Texas Instruments |
| Kit Classification | Evaluation Kit |
| For Use With | BeagleBone Black |
| Kit Name | PRU Cape |
