TE Connectivity 207467 PP, Thermoplastic D Sub Backshell, 9 Way
- RS Stock No.:
- 4509141
- Mfr. Prt No.:
- 207467-1
- Brand:
- TE Connectivity
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 4509141 |
| Product description | TE Connectivity 207467 PP, Thermoplastic D Sub Backshell, 9 Way |
| Manufacturer / Brand | TE Connectivity |
| Manufacturer part number | 207467-1 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 4509141 |
| Product description | TE Connectivity 207467 PP, Thermoplastic D Sub Backshell, 9 Way |
| Manufacturer / Brand | TE Connectivity |
| Manufacturer part number | 207467-1 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 15, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
TE Connectivity AMPLIMITE D-Subminiature Connectors
'D' Sub-Miniature Connection System
AMPLIMITE D-Sub Connector, HDP Series, Unshielded Box and Lid Backshells

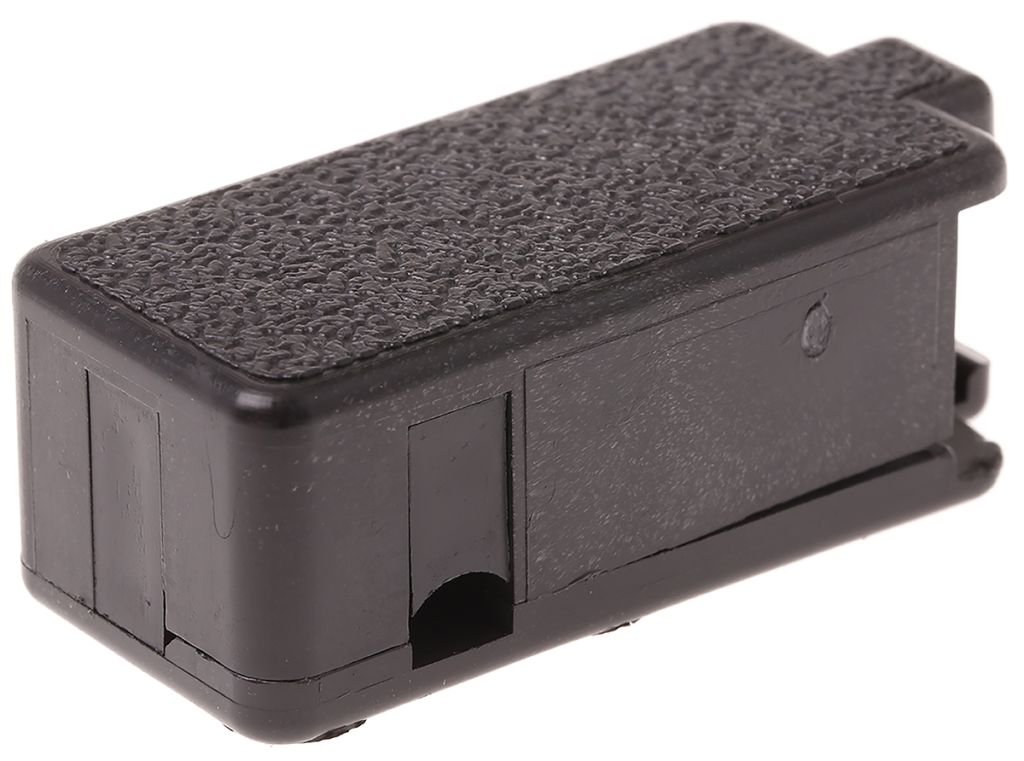

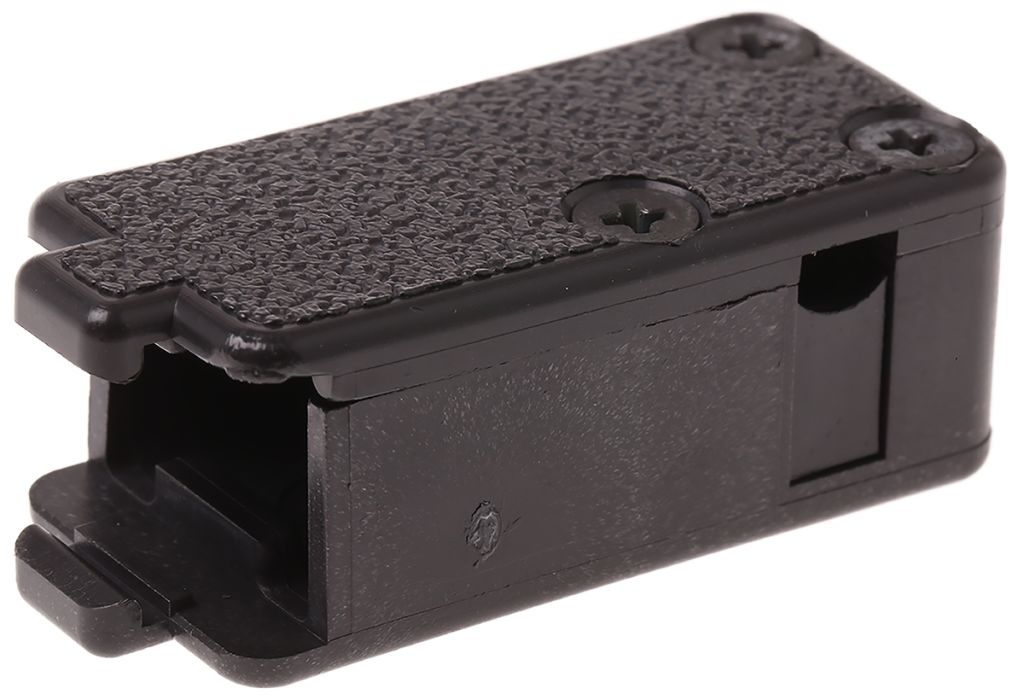

AMPLIMITE unassembled hinged box and lid unshielded cable clamps or backshell kits with a 180 and 90° cable exit option. These AMPLIMITE box and lid unshielded backshells have black thermoplastic housings with a textured finish, black thermoplastic gates and black zinc plated steel flat head screws. The cable diameter of these AMPLIMITE box and lid backshells can be adjusted by changing the cable support gates. The flat side of the cable support gates are for use with discrete wire and the semicircle side for use with jacketed cable. These AMPLIMITE backshells are for use with HDP Metal-Shell series d-sub connectors.
For male screw retainers see stock numbers 450-9208 and 717-4498 typically.
For female screwlocks see stock numbers 717-4543, 450-9270 and 717-4546 typically.
For locking post assembly see stock number 450-9365
For spring latches see stock number 450-9321
For latching blocks see stock numbers 450-9371 and 680-9392 typically.
Specifications
| Attribute | Value |
| Brand | TE Connectivity |
| D-Sub Shell Size | E |
| Series | 207467 |
| Colour | Black |
| Number of Contacts | 9 |
| Housing Material | PP, Thermoplastic |
| Body Orientation | Straight |
