Analog Devices ADALM1000, Active Learning Module Education Demonstration Kit
- RS Stock No.:
- 8904004
- Mfr. Prt No.:
- ADALM1000
- Brand:
- Analog Devices
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 8904004 |
| Product description | Analog Devices ADALM1000, Active Learning Module Education Demonstration Kit |
| Manufacturer / Brand | Analog Devices |
| Manufacturer part number | ADALM1000 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8904004 |
| Product description | Analog Devices ADALM1000, Active Learning Module Education Demonstration Kit |
| Manufacturer / Brand | Analog Devices |
| Manufacturer part number | ADALM1000 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 17, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
ADALM1000 Active Learning Module, Analog Devices
The ADALM1000 module is an easy to use active learning tool that illustrates the relationships between current, voltage, impedance (resistance, inductance, and capacitance), introducing the fundamentals of electrical engineering. The ADALM1000 augments learning with a personal portable lab when used with a laptop or tablet computer. Pixelpulse application software provides an innovative graphical user interface (GUI) for visualizing and manipulating analogue signals.
Note
Optional ADALP2000 Analogue Parts Kit.
Current Sensing Amplifiers have a voltage output that is proportional to the volt drop across a very low value resistor, usually in a high-current power rail. Hence they measure the current flowing in that power rail.
Provides access to actual electronics circuits and concepts used in an actual real-time engineering environment
USB powered learning tool

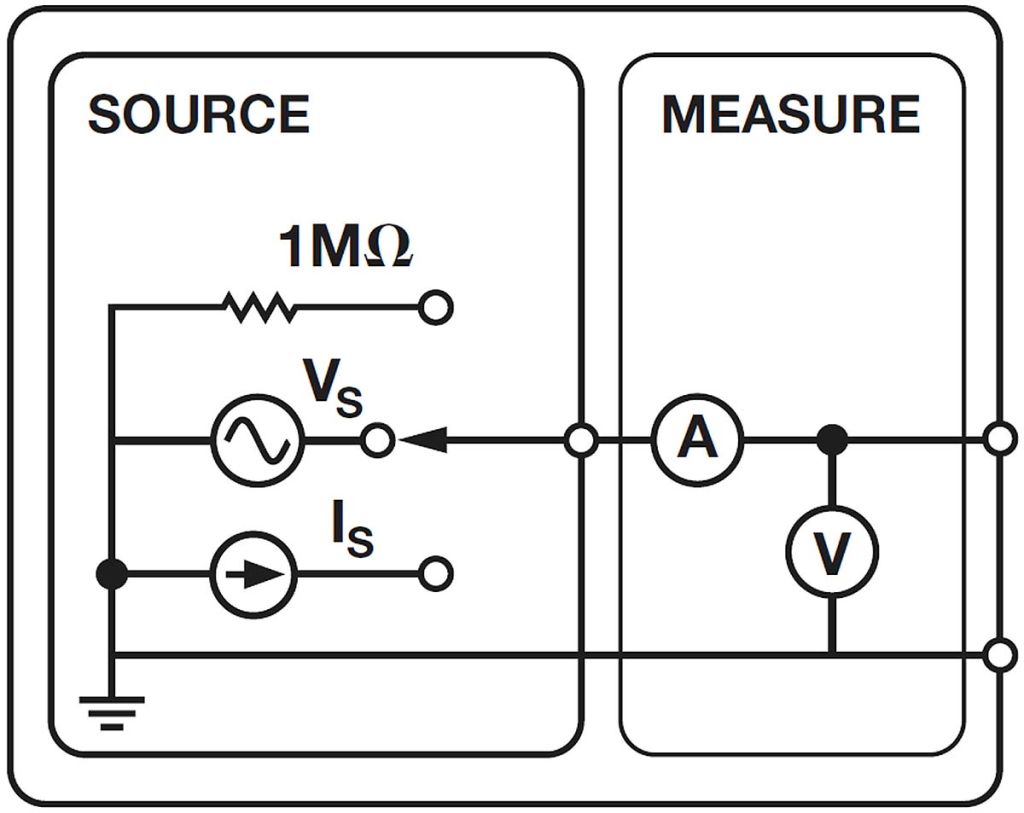

Measuring and sourcing current (-200mA to +200mA) and voltage (0V to 5V) simultaneously on same pin
Oscilloscope (100kSPS), function generator (100kSPS)
16-bit (0.05%) basic measure accuracy with 4 digit resolution
Source and sink (2-quadrant) operation
PixelPulse 2 (open source software) supports Windows, Linux, OS X
Active Learning Interface (for) Circuits (and) Electronics (Python program)
Free downloadable lectures, labs, and course materials make curriculum deployments a breeze
Specifications
| Attribute | Value |
| Brand | Analog Devices |
| Kit Classification | Demonstration Kit |
| Kit Name | Active Learning Module |
