Schneider Electric DPDT Time Delay Relay, ON Delay, 230V ac 0.1 → 1h, Plug In Mount

RS Stock No.:
9148209
Mfr. Prt No.:
REXL2TMP7
Brand:
Schneider Electric

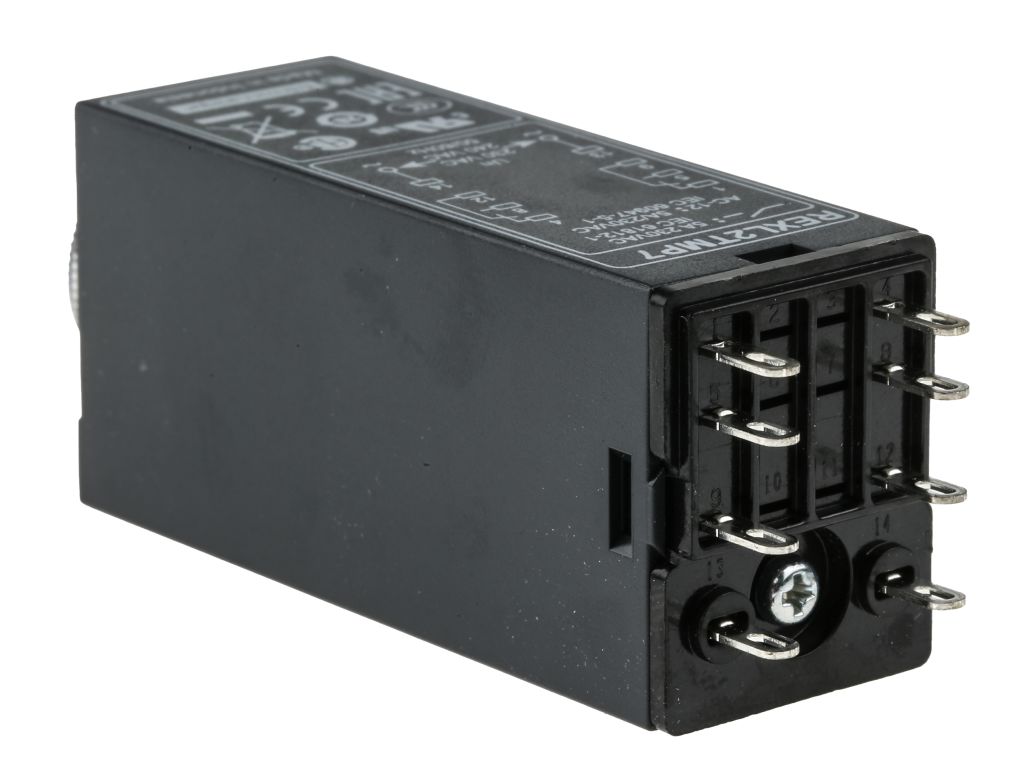

Product image for Schneider Electric DPDT Time Delay Relay, ON Delay, 230 V ac 0.1 → 1 h, 0.1 → 1 min, 0.1 → 1 s, 1
Product image for Schneider Electric DPDT Time Delay Relay, ON Delay, 230 V ac 0.1 → 1 h, 0.1 → 1 min, 0.1 → 1 s, 1
Product image for Schneider Electric DPDT Time Delay Relay, ON Delay, 230 V ac 0.1 → 1 h, 0.1 → 1 min, 0.1 → 1 s, 1
Product image for Schneider Electric DPDT Time Delay Relay, ON Delay, 230 V ac 0.1 → 1 h, 0.1 → 1 min, 0.1 → 1 s, 1

Legislation and Compliance

RoHS Certificate of Compliance

RS Components
RoHS Certificate of Compliance

EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.

Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.

RS definition of RoHS Compliance:

  • The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
  • and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

SubstanceConcentration
Lead0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls)0.1%
PBDE ( Polybrominated Diphenyl Ethers)0.1%
Hexavalent Chromium0.1%
Cadmium0.01%
DEHP (Bis (2-Ethylhexl) phthalate)0.1%
BBP (Benzyl butyl phthalate)0.1%
DBP (Dibutyl phthalate)0.1%
DIBP (Diisobutyl phthalate)0.1%

The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".

RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.

Compliant Product Details
RS stock number 9148209
Product description Schneider Electric DPDT Time Delay Relay, ON Delay, 230V ac 0.1 → 1h, Plug In Mount
Manufacturer / Brand Schneider Electric
Manufacturer part number REXL2TMP7

RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 9148209
Product description Schneider Electric DPDT Time Delay Relay, ON Delay, 230V ac 0.1 → 1h, Plug In Mount
Manufacturer / Brand Schneider Electric
Manufacturer part number REXL2TMP7

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Dec 26, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132

Country of Origin: ID

Product Details

On Delay Timers- REXL2 Series

Schneider Electric REXL2 Series is a miniature designed time delay relay which features On delay functionality.

• On Delay function
• Compact miniature design
• 2 C/O
• Plug-in socket terminal
• 50 ms reset time
• Wide supply voltage range
• LED status indication for power and output
• IP50 protection

Specifications

Attribute Value
Brand Schneider Electric
Time Range 0.1 → 1 h, 0.1 → 1 min, 0.1 → 1 s, 1 → 10 h, 1 → 10 min, 1 → 10 s, 10 → 100 h
Minimum Voltage 0.85 V
Minimum Operating Temperature -20 °C
Mode of Operation ON Delay
Power Supply External
Maximum Voltage 230 V ac
Depth 30 mm
Time Increment Hours, Minutes, Seconds
Length 27 mm
Width 21 mm
Number of Contacts 2
Terminal Type Plug
Mounting Type Plug In
Time Delay 300 ms
Supply Voltage 230 V ac
Number of Timer Functions Single
Switch Configuration DPDT
Current Maximum 5 A
Maximum Operating Temperature +60 °C
Contact Configuration DPDT
Product image for Schneider Electric DPDT Time Delay Relay, ON Delay, 230 V ac 0.1 → 1 h, 0.1 → 1 min, 0.1 → 1 s, 1
Product image for Schneider Electric DPDT Time Delay Relay, ON Delay, 230 V ac 0.1 → 1 h, 0.1 → 1 min, 0.1 → 1 s, 1
Product image for Schneider Electric DPDT Time Delay Relay, ON Delay, 230 V ac 0.1 → 1 h, 0.1 → 1 min, 0.1 → 1 s, 1
Product image for Schneider Electric DPDT Time Delay Relay, ON Delay, 230 V ac 0.1 → 1 h, 0.1 → 1 min, 0.1 → 1 s, 1
Checking stock...
IDR
610,250.02
Out of stock
Price Each
Unit(s)Per Unit(IDR)
1610,250.02
*price per unit indicative
