RS PRO Brass Sight Glass Non Return Valve 1 in BSP
- RS Stock No.:
- 7209349
- Brand:
- RS PRO
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 7209349 |
| Product description | RS PRO Brass Sight Glass Non Return Valve 1 in BSP |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 15, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: PT
Product Details

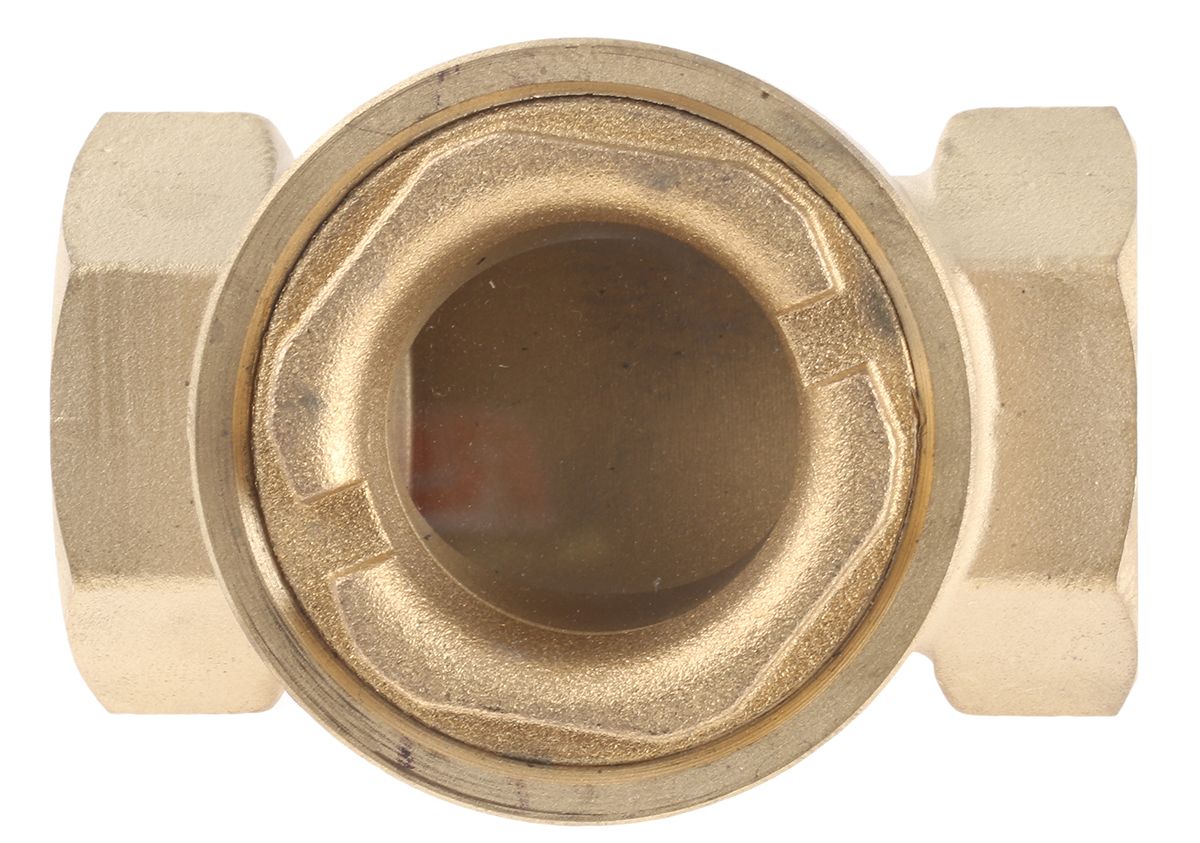

Single Window Sight Glass
A single window sight glass used to visually check the condition and leakage of steam traps. It is recommended that a sight glass be installed downstream of the steam trap, which is exactly how this one has been designed. The body and glass nut are made of brass and the gasket is non-asbestos, with a borosilicate glass window.
Features and Benefits
• Connections are female screwed
• 5 mm thick glass
• Horizontal or vertical installation
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Connection | 1 in BSP |
| Thread Standard | BSP |
| Maximum Working Pressure | 12 bar |
| Thread Size | 1 in |
| Type | Sight Glass |
| Body Material | Brass |
