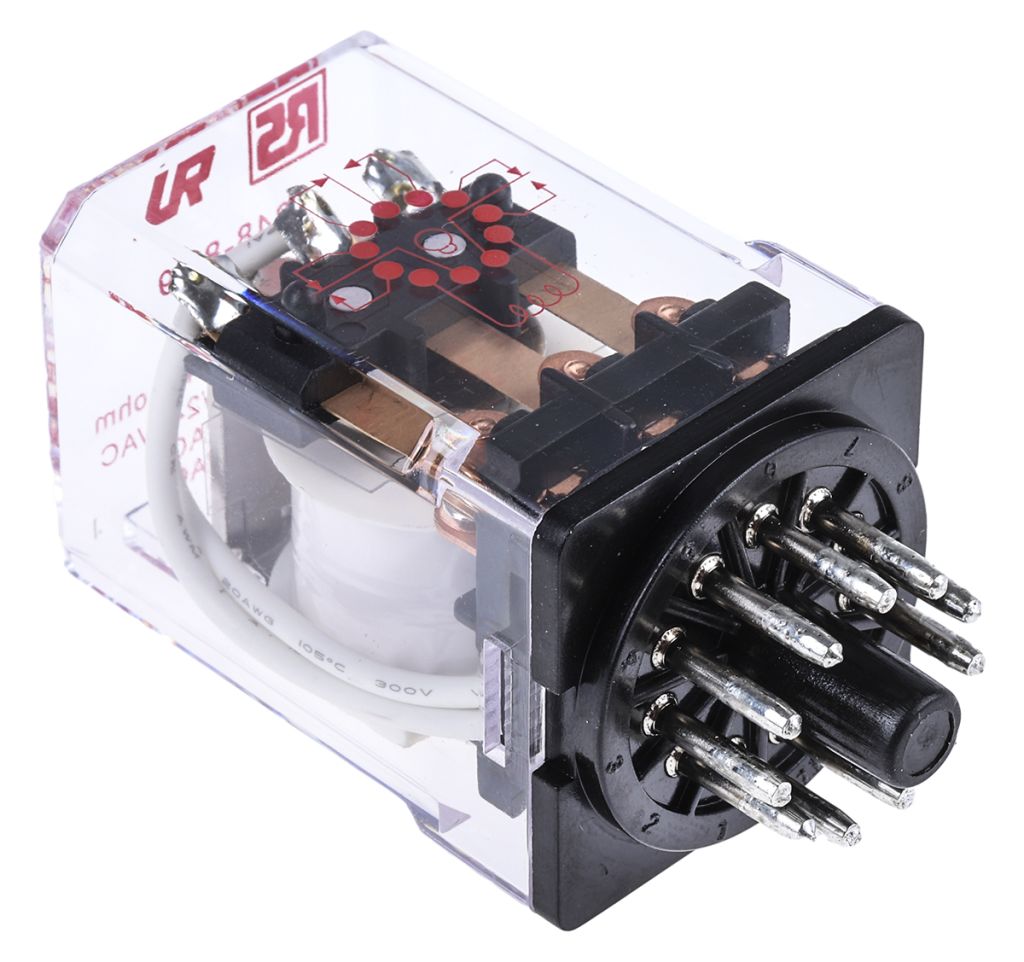

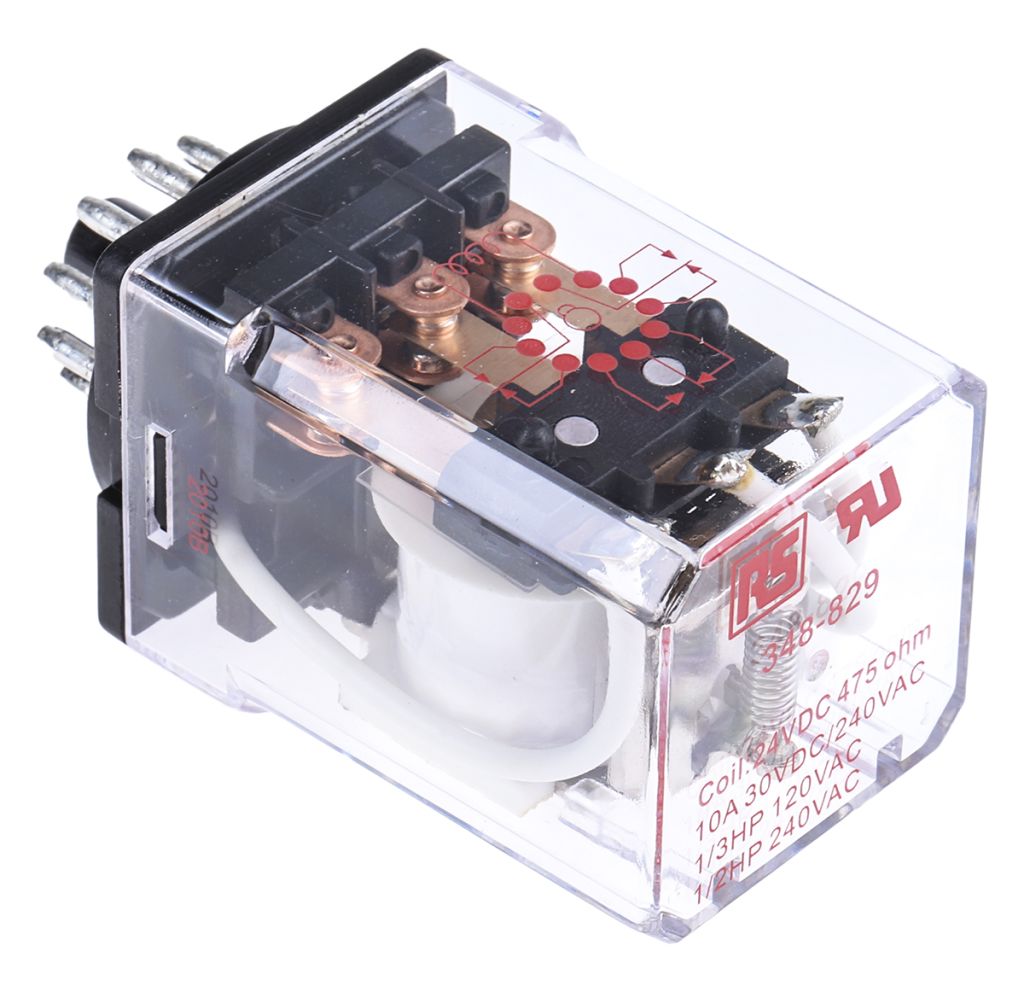

RS PRO, 24V dc Coil Non-Latching Relay 3PDT, 10A Switching Current Plug In, 3 Pole
- RS Stock No.:
- 0348829
- Brand:
- RS PRO
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
RS stock number | 0348829 |
Product description | RS PRO, 24V dc Coil Non-Latching Relay 3PDT, 10A Switching Current Plug In, 3 Pole |
Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Nov 7, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Specifications
Attribute | Value |
Brand | RS PRO |
Height | 56 mm |
Coil Voltage | 24 V dc |
Coil Resistance | 478 Ω |
Mounting Type | Plug In |
Terminal Type | Through Hole |
Isolation Coil To Contact | 1.5 kV ac |
Standards Met | CUR E125370, UL E125370 |
Number of Poles | 3 |
Maximum Switching Voltage DC | 30 V dc |
Maximum Switching Current AC | 10 A |
Switching Current | 10 A |
Maximum Switching Power DC | 300 W |
Maximum Switching Current DC | 10 A |
Depth | 35 mm |
Maximum Switching Voltage AC | 240 V ac |
Length | 35 mm |
Maximum Switching Power AC | 2.4 kVA |
Contact Configuration | 3PDT |
Coil Power | 1.2 W |
